Electronic Stability Program (ESP) PE42.45-U-2000MC




Electronic Stability Program (ESP) PE42.45-U-2000MC
- with CODE (472a) Electonic Stability Program (ESP)

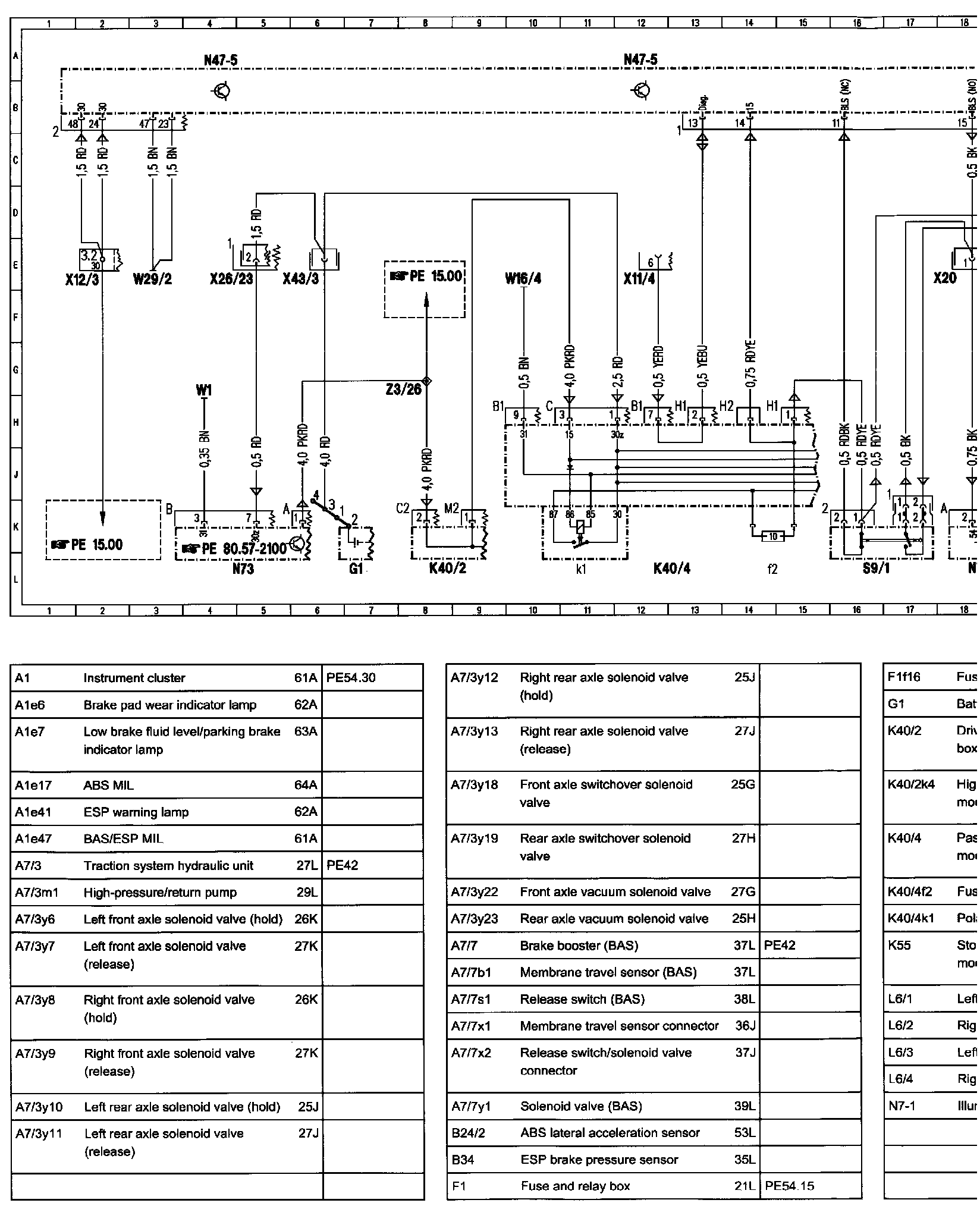

��%���%��%Electronic Stability Program (ESP) PE42.45-U-2000MC:

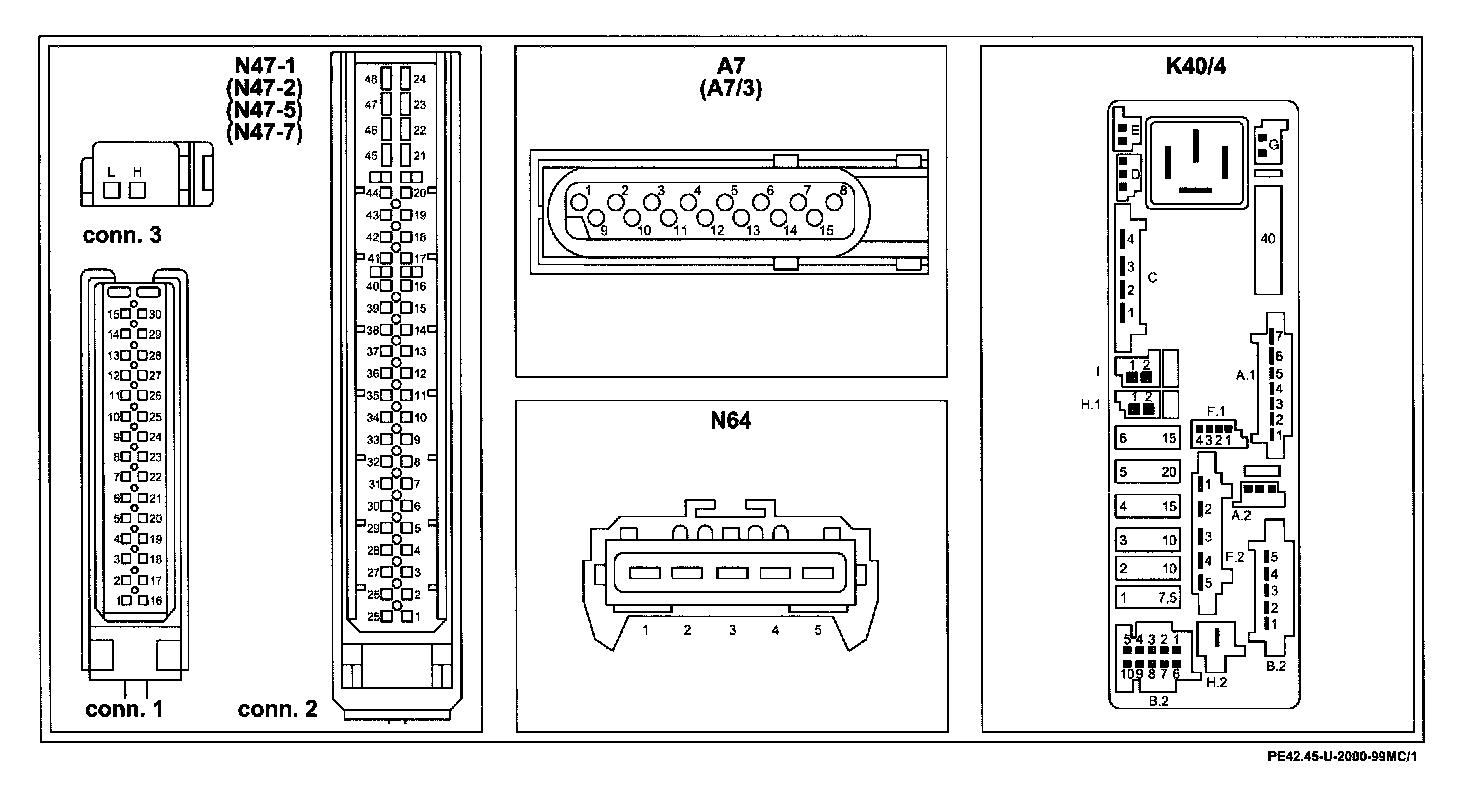

Connector Assignment:

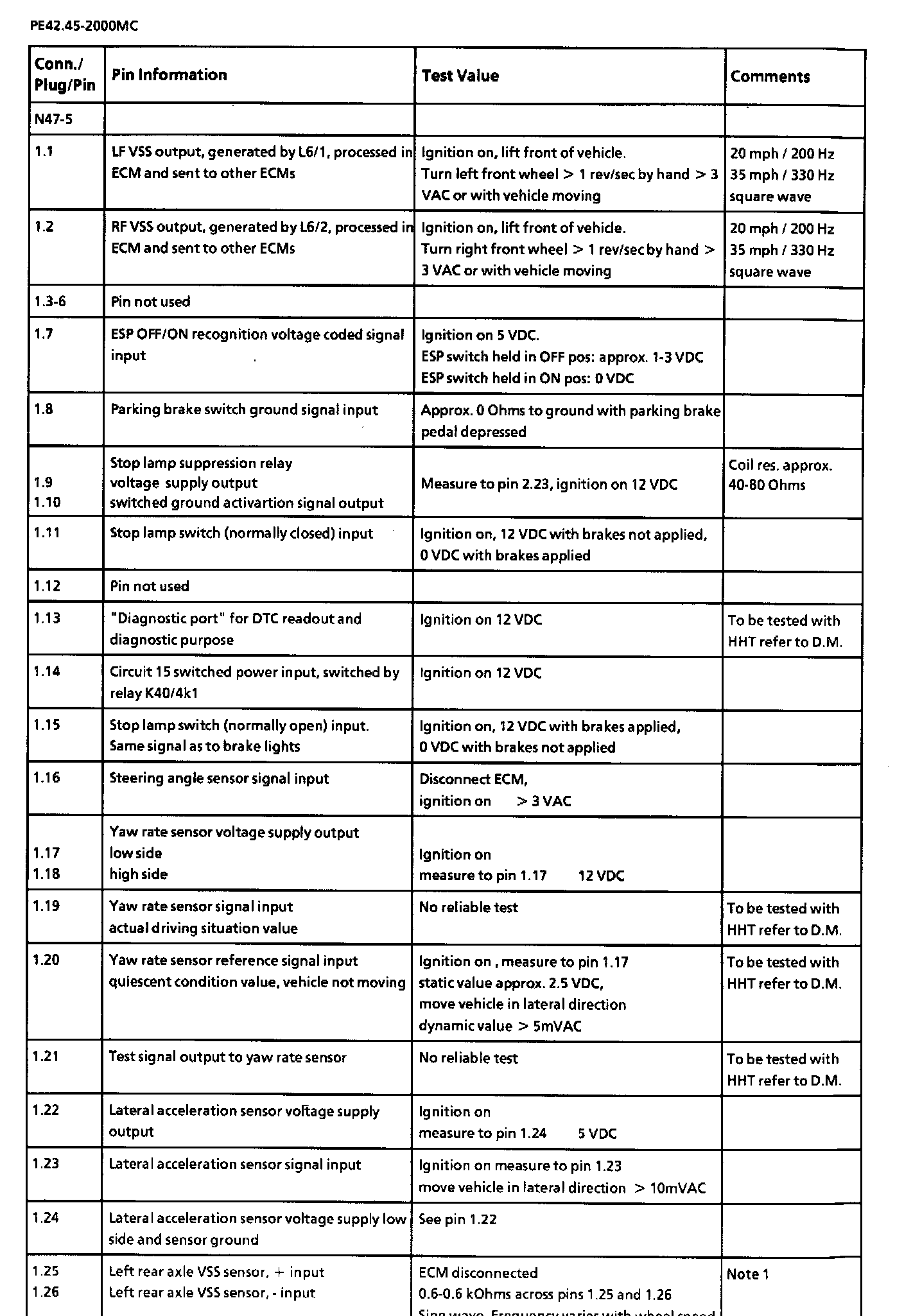

T��%Pin Information, Part 1:

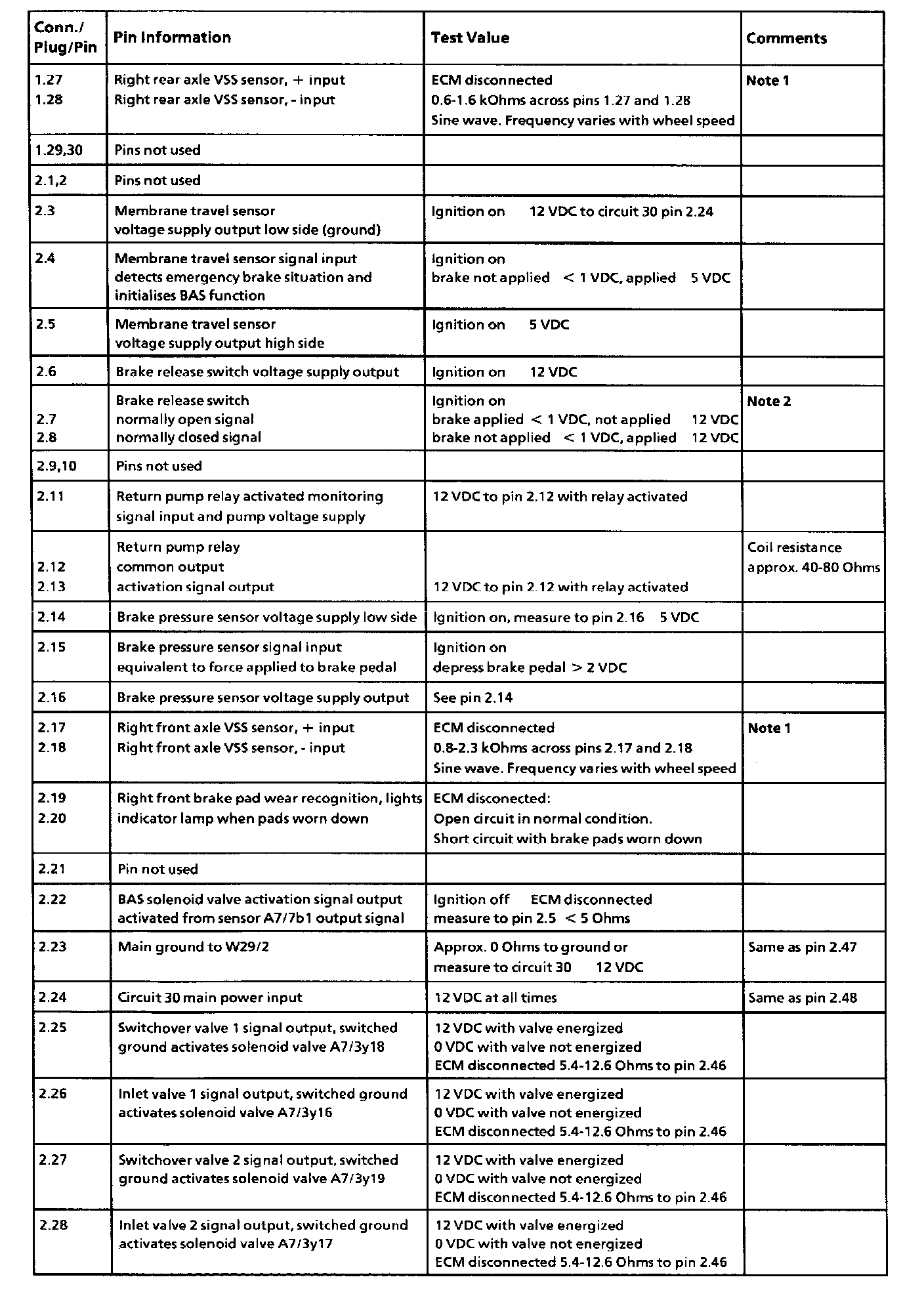

Pin Information, Part 2:

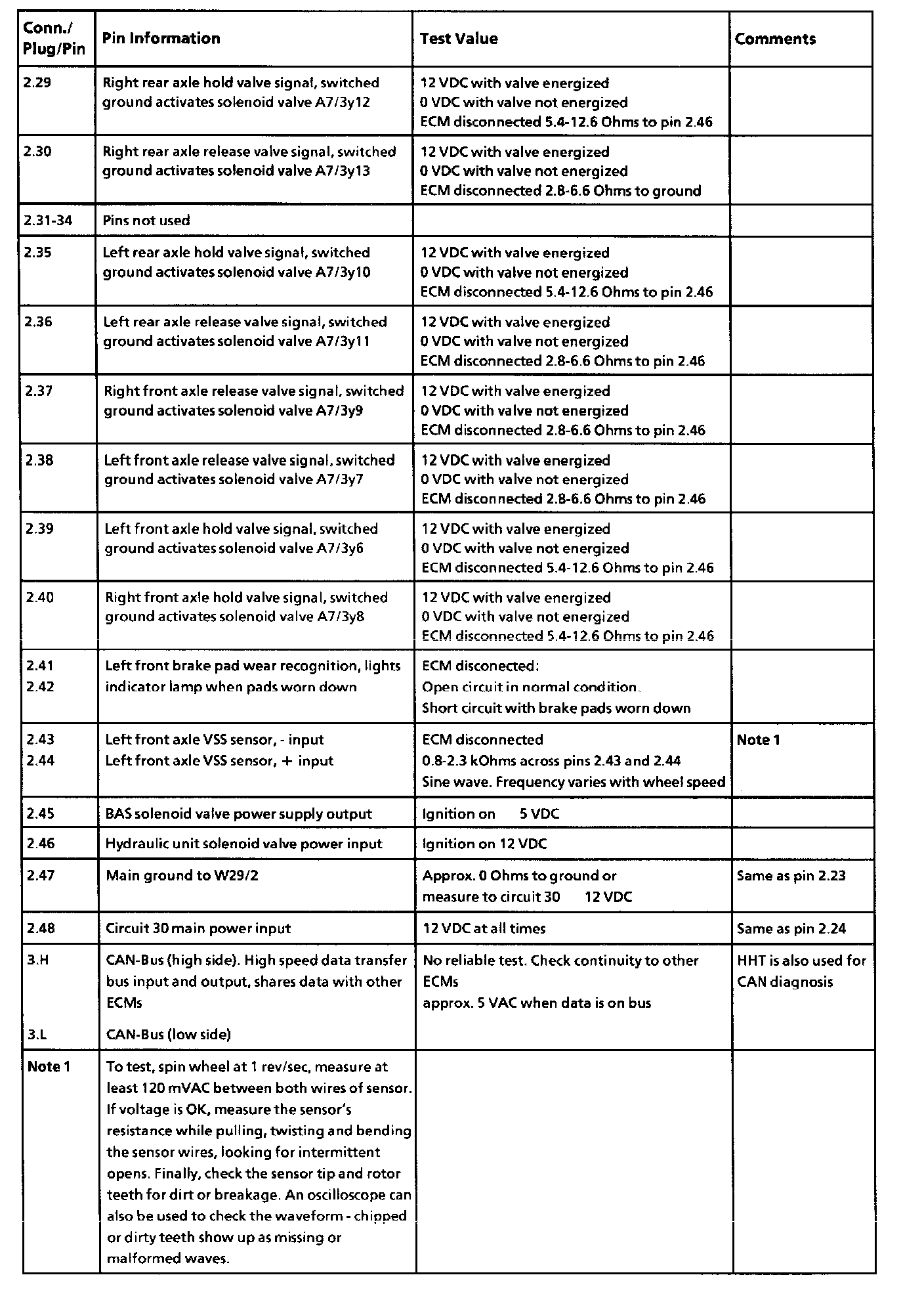

Pin Information, Part 3:

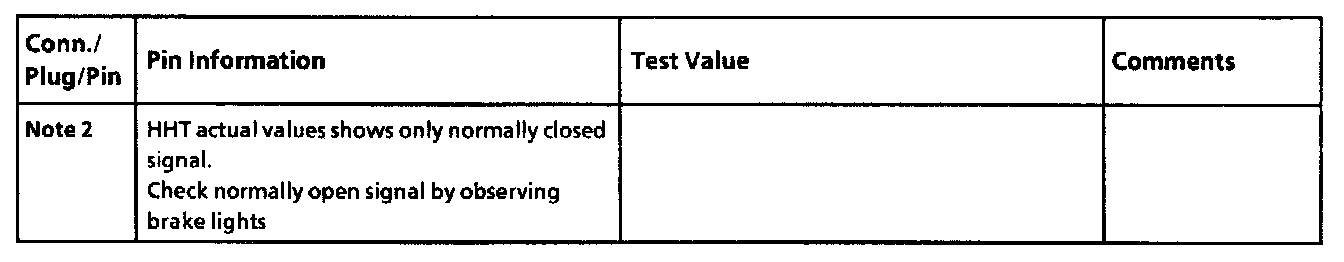

Pin Information, Part 4:

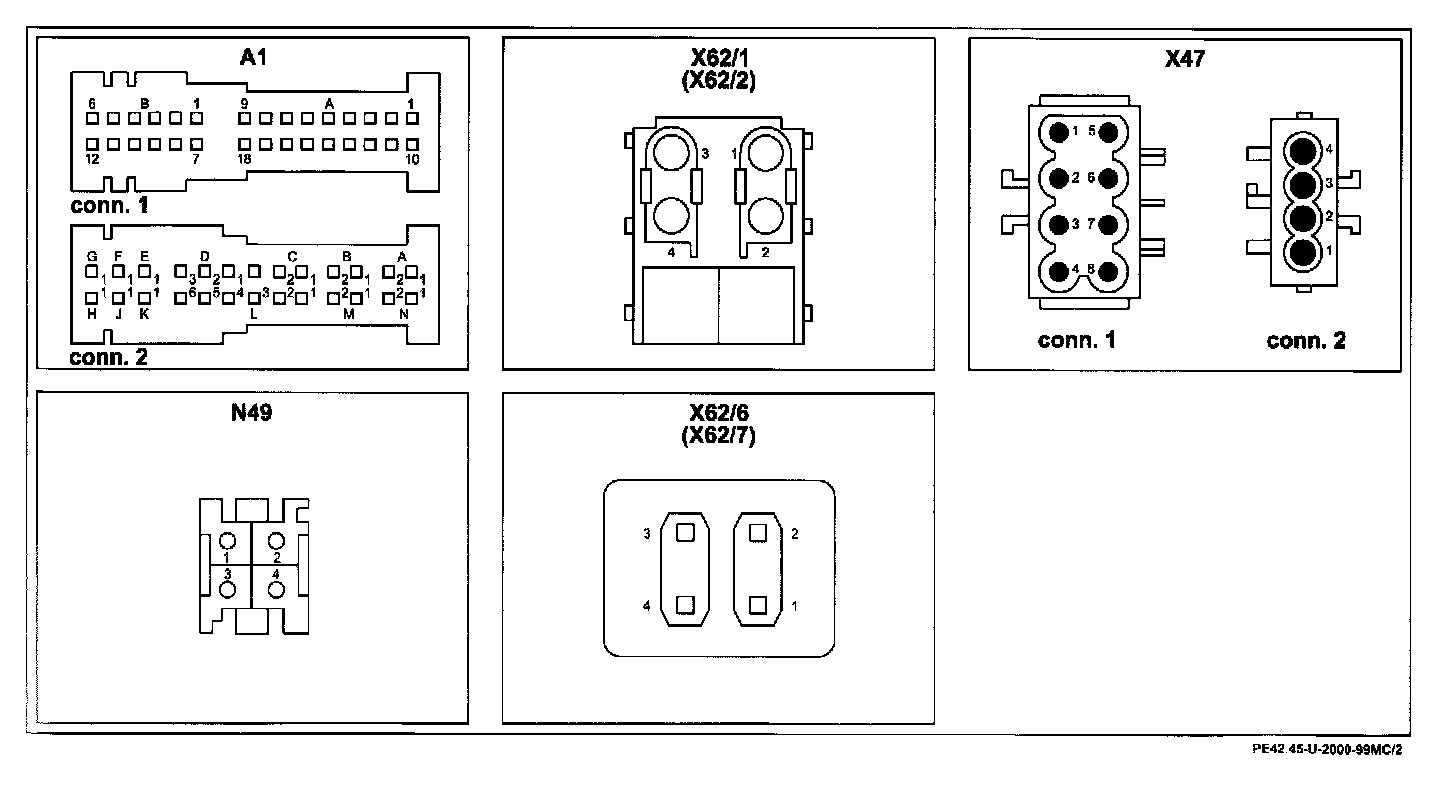

Connector Assignment:
