AR33.20-P-0440B Replace Supporting Joint

Replacing Supporting Joint













CAUTION: To remove and install the supporting joint the shock absorber must be installed.

1 Remove front wheel
2 Unscrew nuts from supporting joint

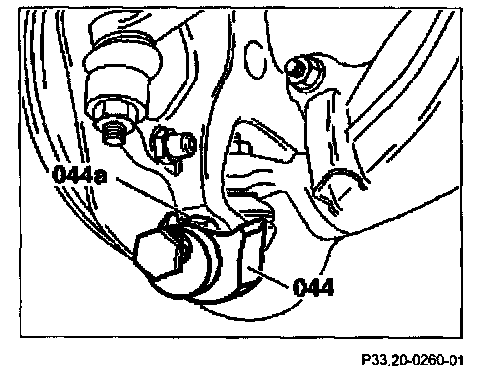

3 Screw thrust piece (044a) onto the respective ball pivot of the supporting joint

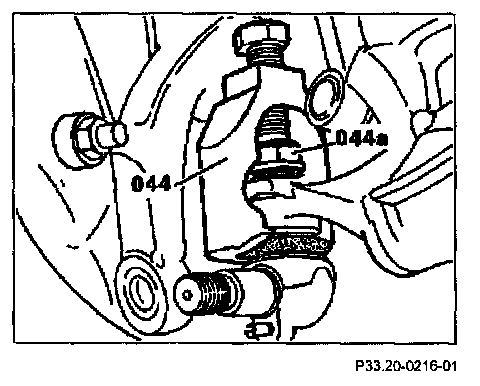

4 Press out supporting joint using puller (044) from steering knuckle or wishbone

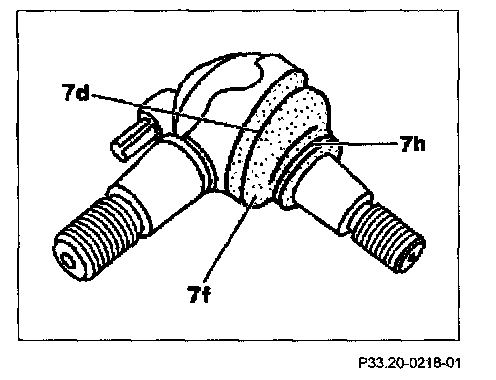

5 Check supporting joint
- Replace if necessary
