Alternator Pulley / Clutch: Service and Repair

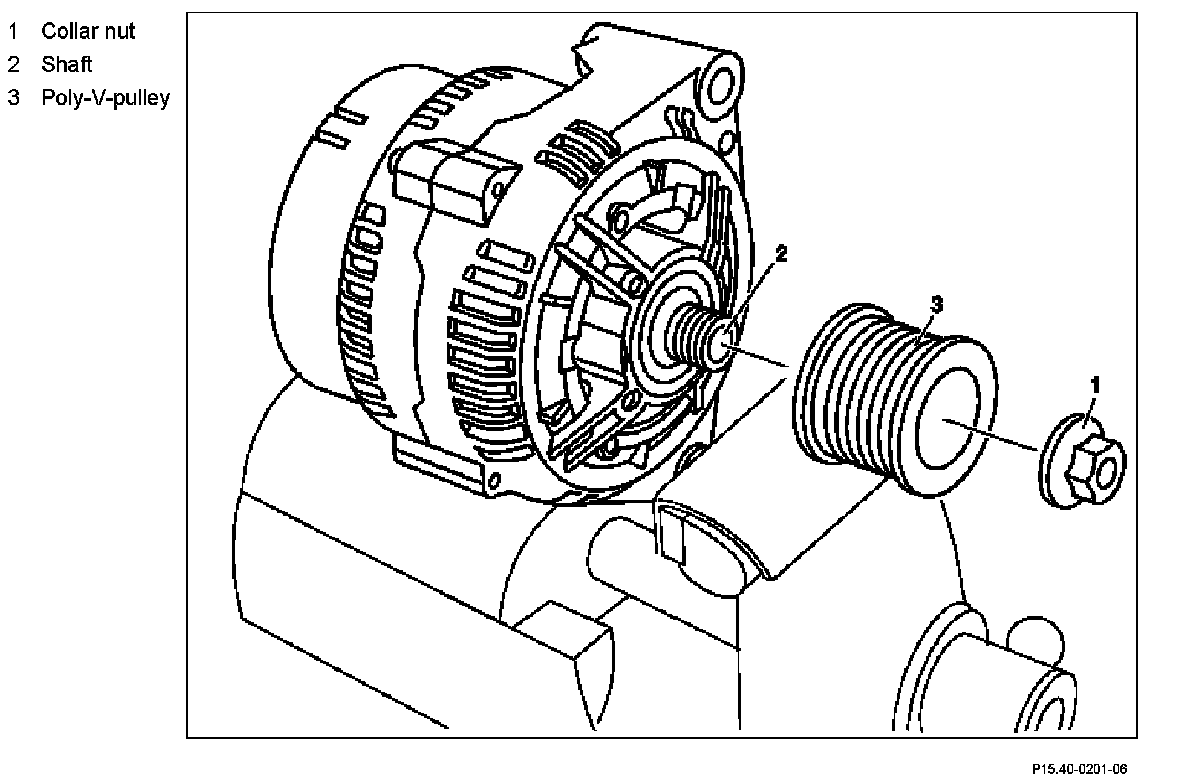

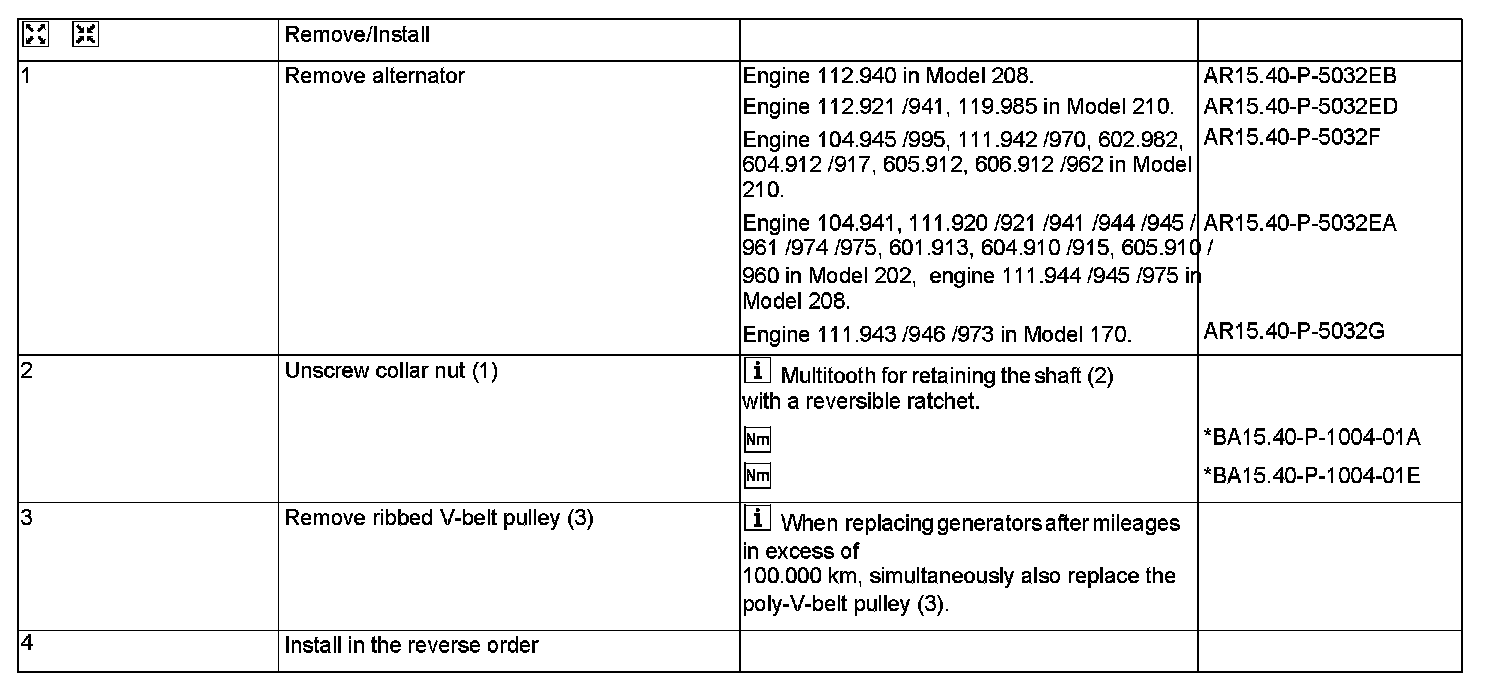

Remove/Install Generator Poly-V-belt Pulley

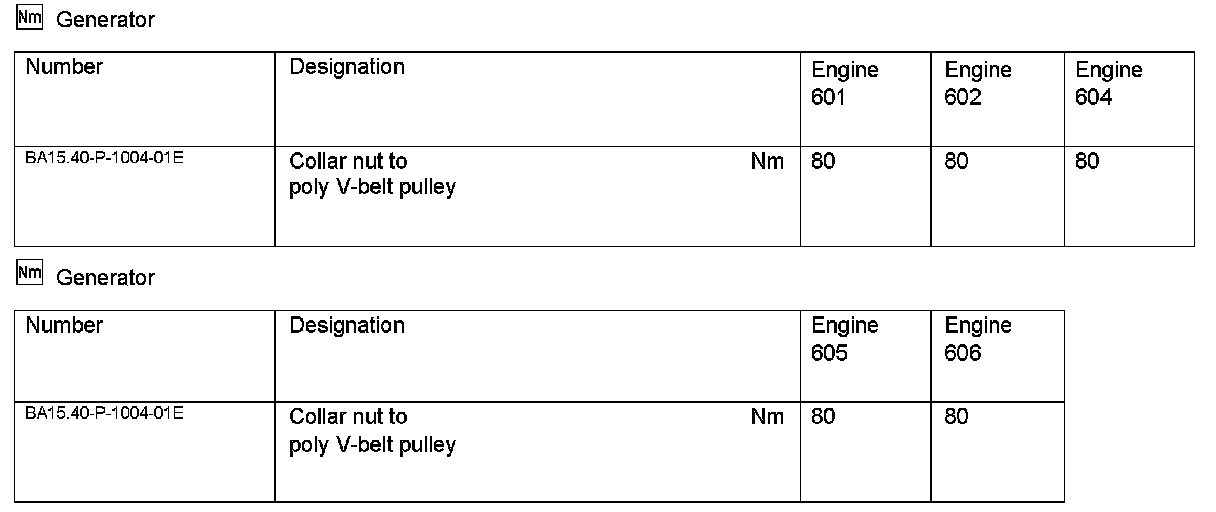

Generator
Generator:
Generator:
