Arm Position on Bearing

Arm Position on Bearing

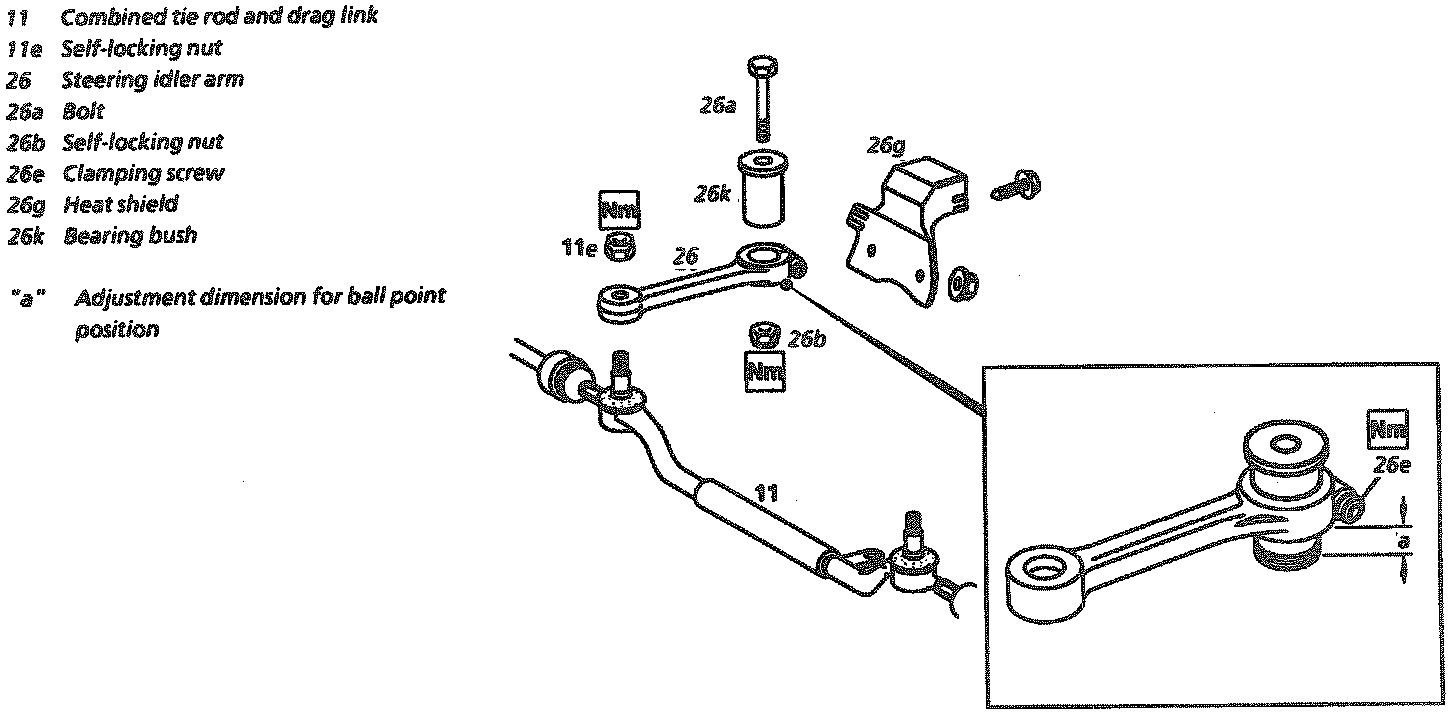

Dimension "a": 19.1 mm along the bearing bush (26k)
