Fuel Gauge Sender: Description and Operation

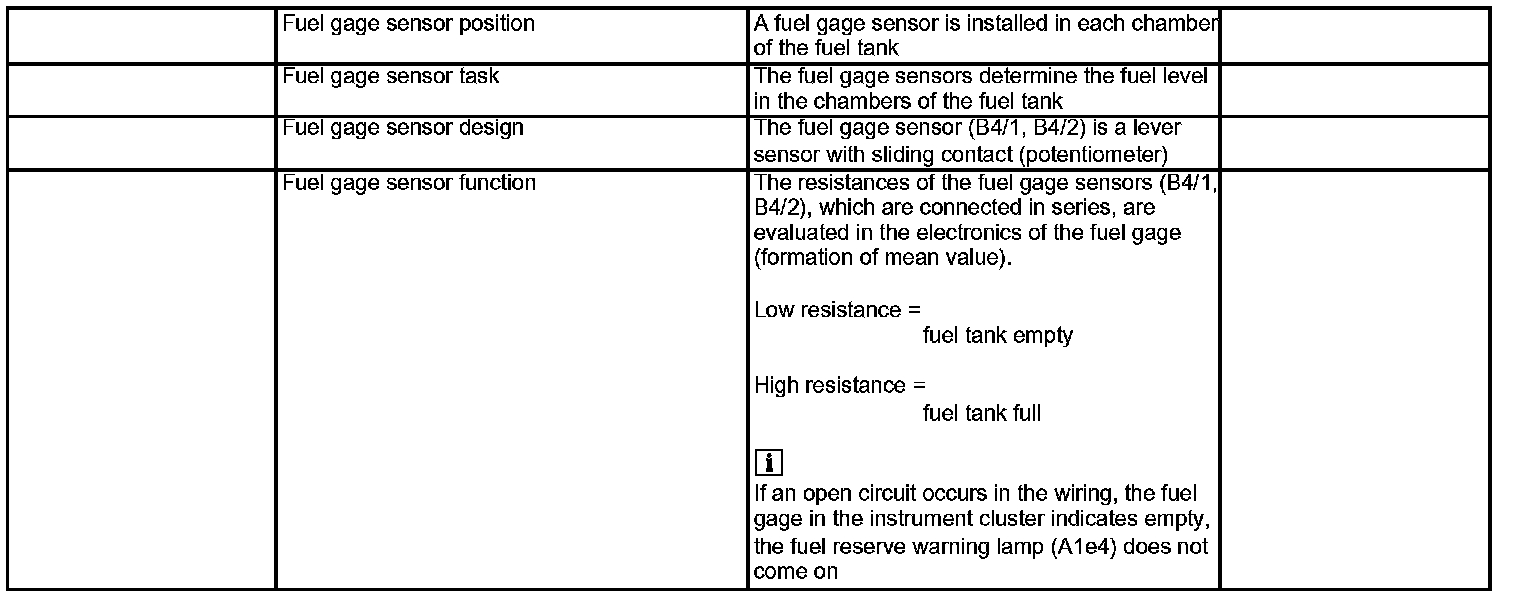

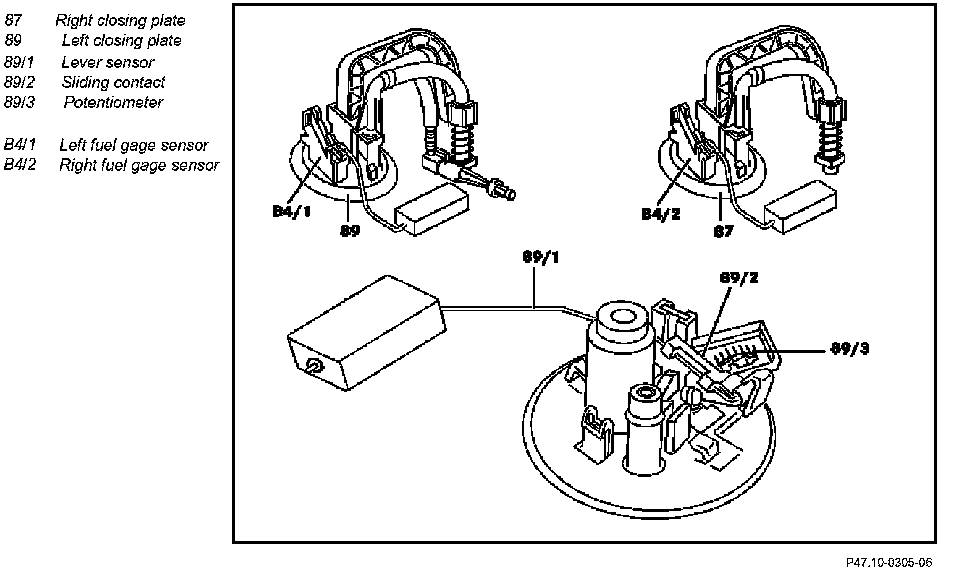

GF47.10-P-3001H Fuel Gage Sensor Position/Task/Design/Function
