SRS Function Schematic

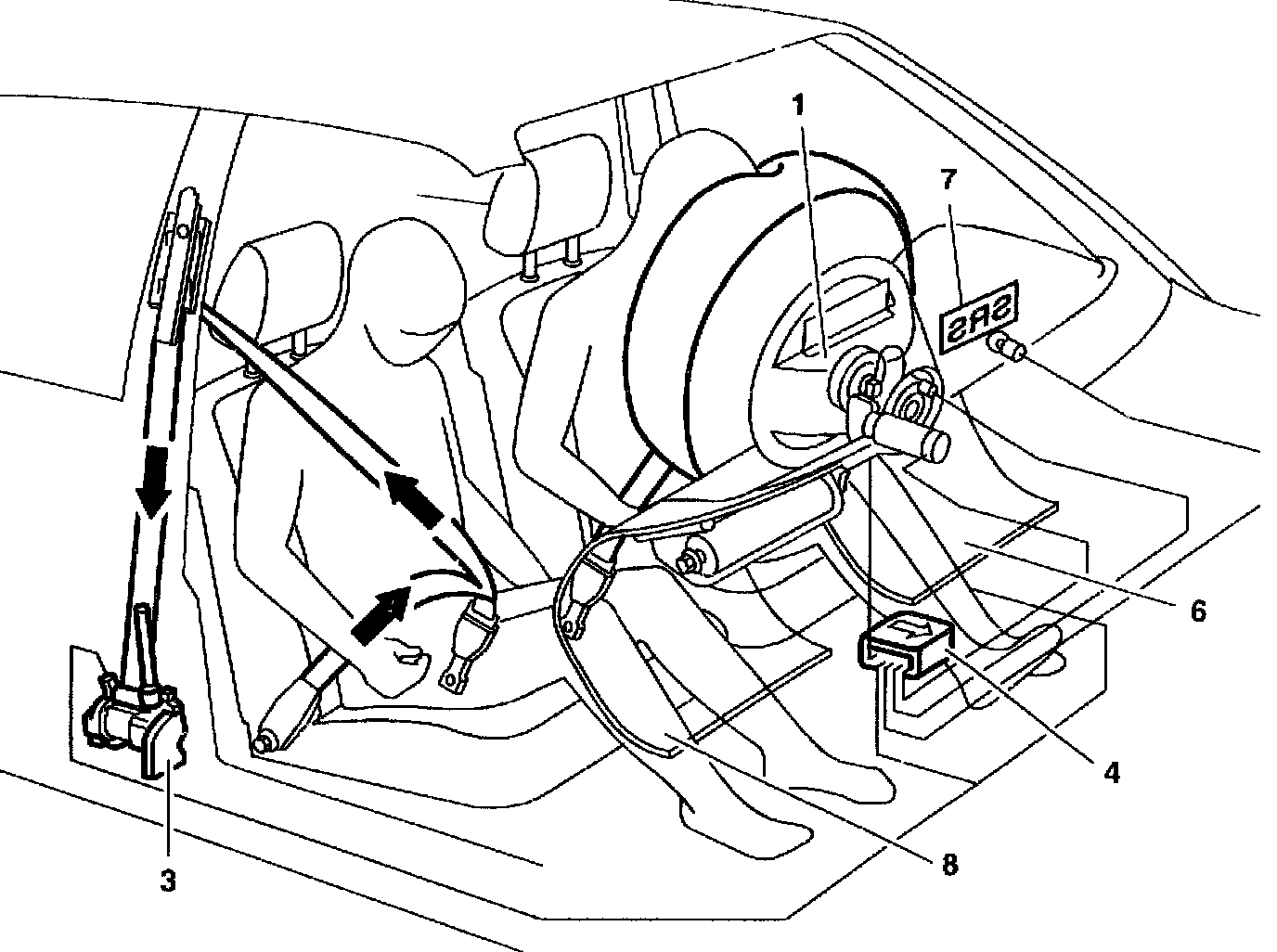

Driver Airbag (Model 202 Standard):

1 Driver airbag
3 Emergency tensioning retractor (left and right)
4 Control module for emergency tensioning retractor with airbag (N2/2)
6 Cover below instrument panel (driver side)
7 SRS malfunction indicator lamp (A1e15)
8 Cover below instrument panel (front passenger side)

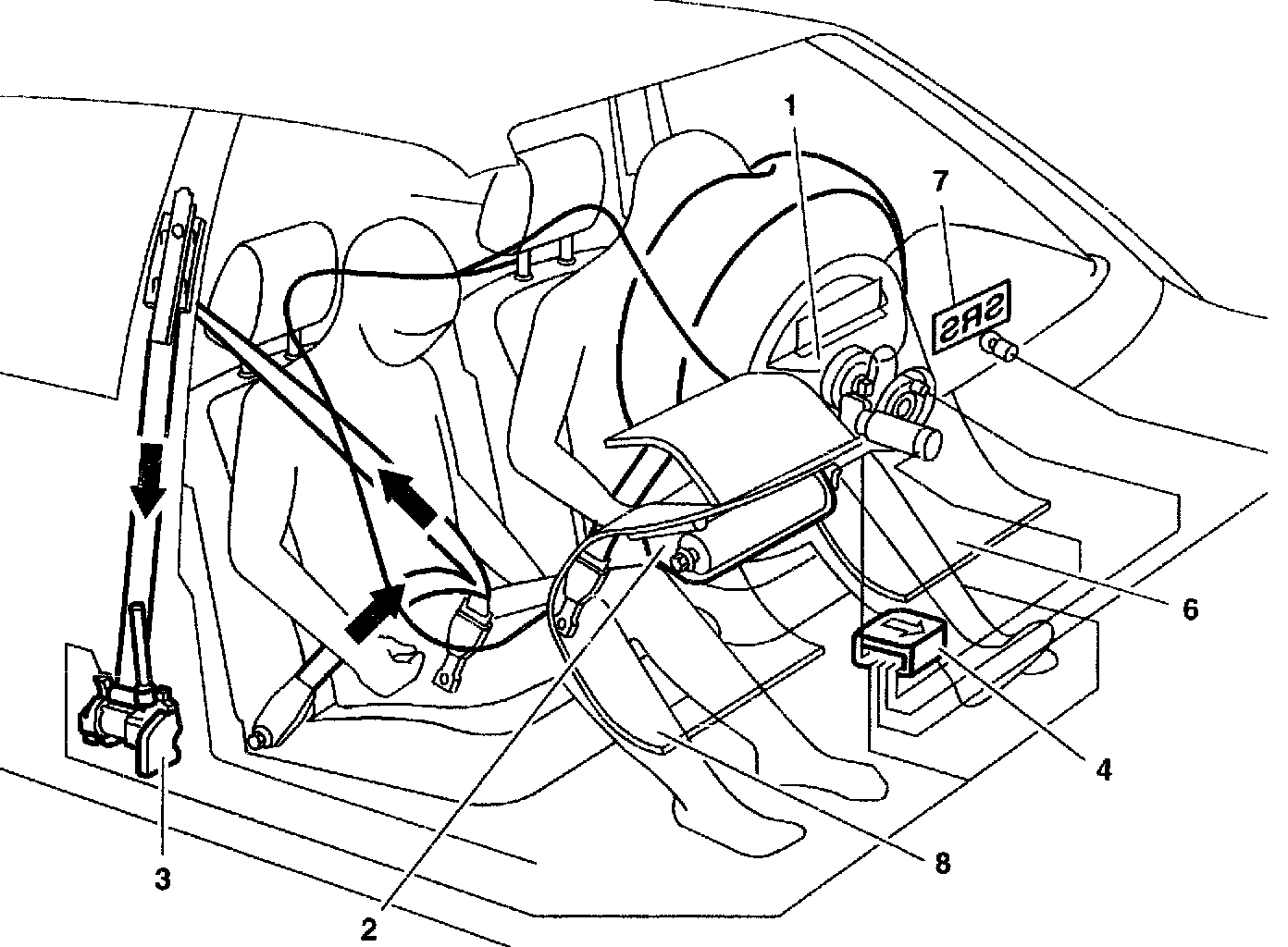

Driver and Front Passenger Airbag (Model 202 and Model 210):

1 Driver airbag
2 Front passenger airbag unit
3 Emergency tensioning retractor (left and right)
4 Control module for emergency tensioning retractor with airbag (N2/2)
6 Cover below instrument panel (driver side)
7 SRS malfunction indicator lamp (A1e15)
8 Cover below instrument panel (front passenger side)

The figure shows the front passenger airbag for model 202.
