Automatic Transmission (AT) PE27.19-U-2000I



Automatic Transmission (AT) PE27.19-U-2000I
- Transmission 722.6


Wiring Diagram, Part 1:





Wiring Diagram, Part 2:

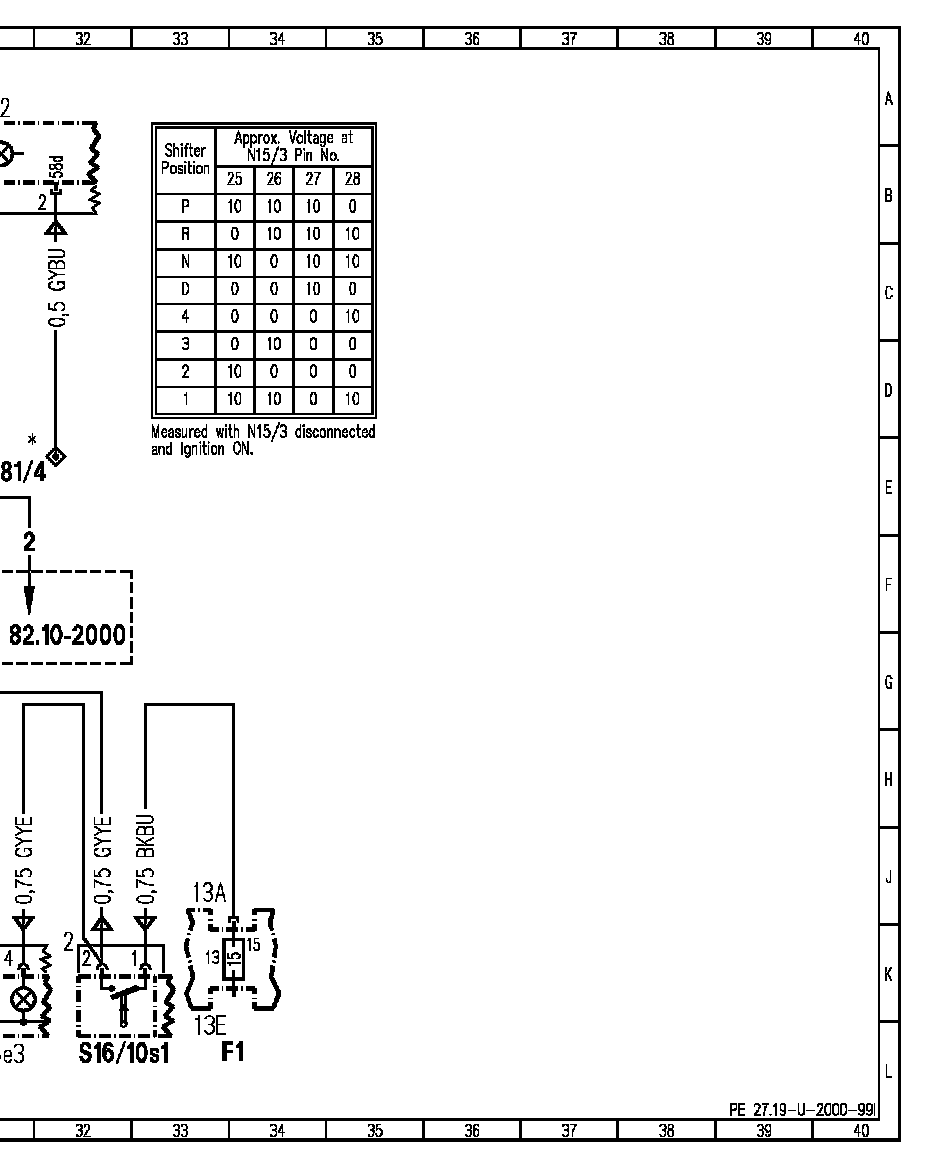

Wiring Diagram, Part 3:

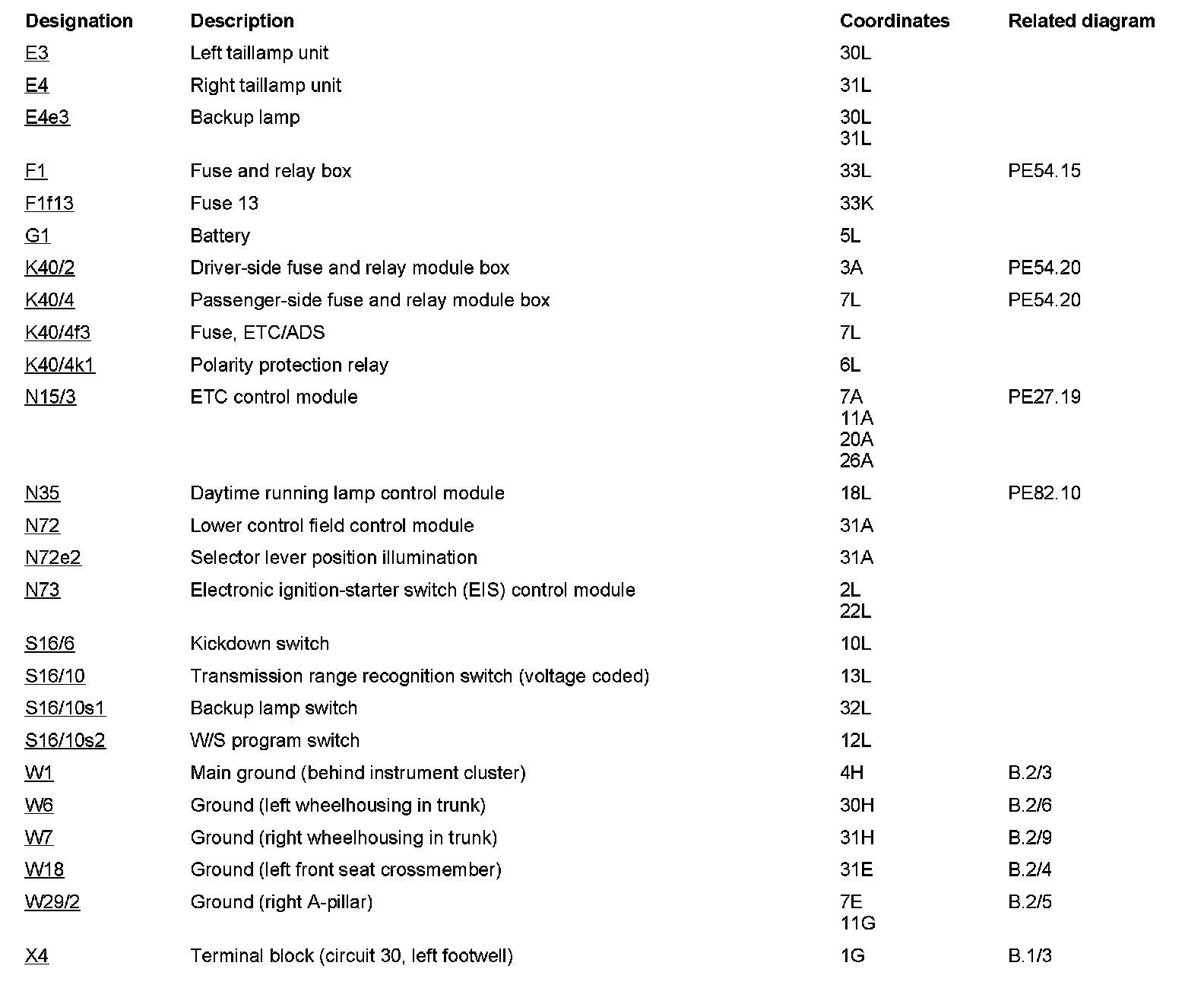

Component Description/Coordinates, E3 To X4:





Component Description/Coordinates, X11/4 To Z81/4:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
