Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Supercharger >> Supercharger Clutch >> Service and Repair

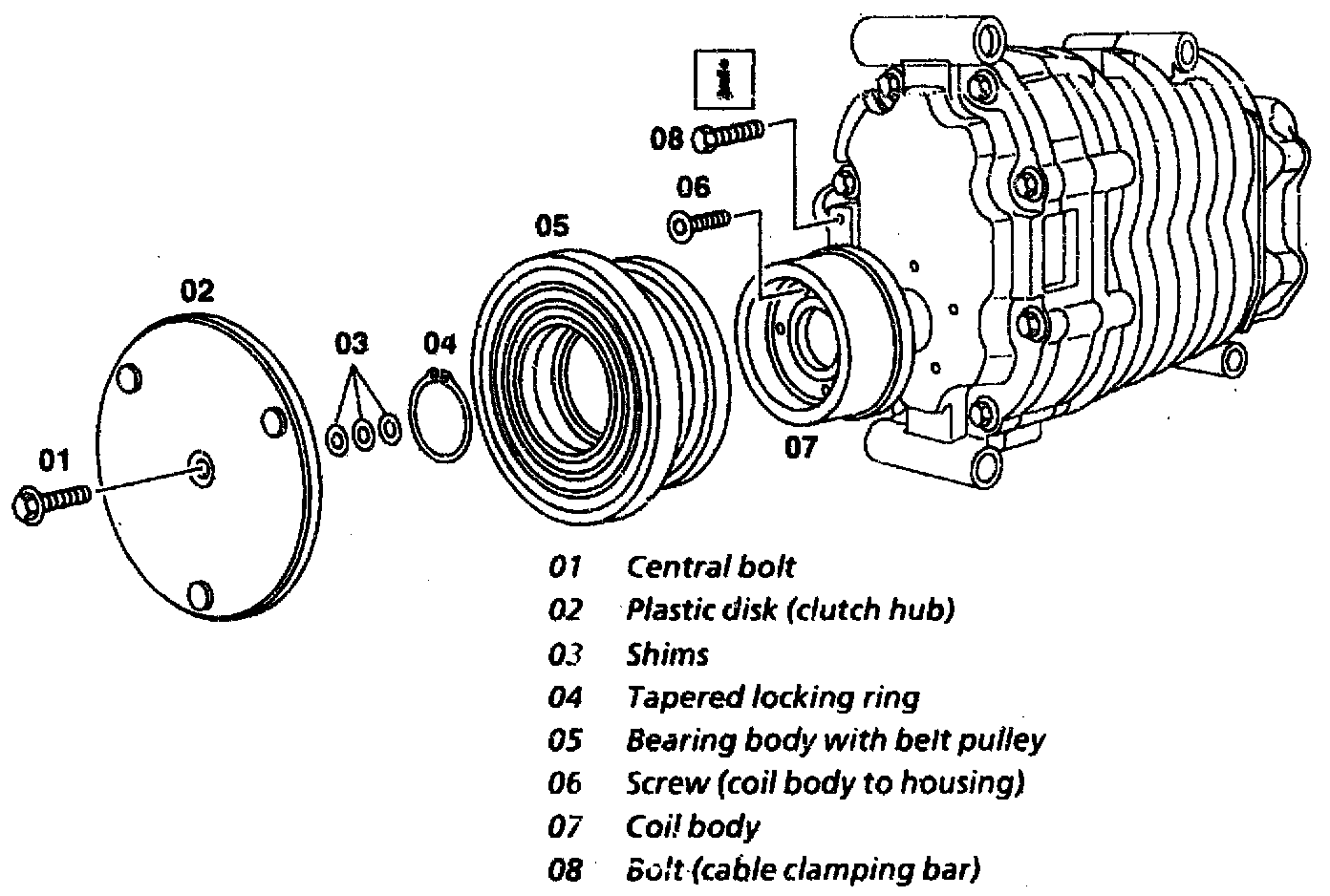

Supercharger Clutch: Service and Repair

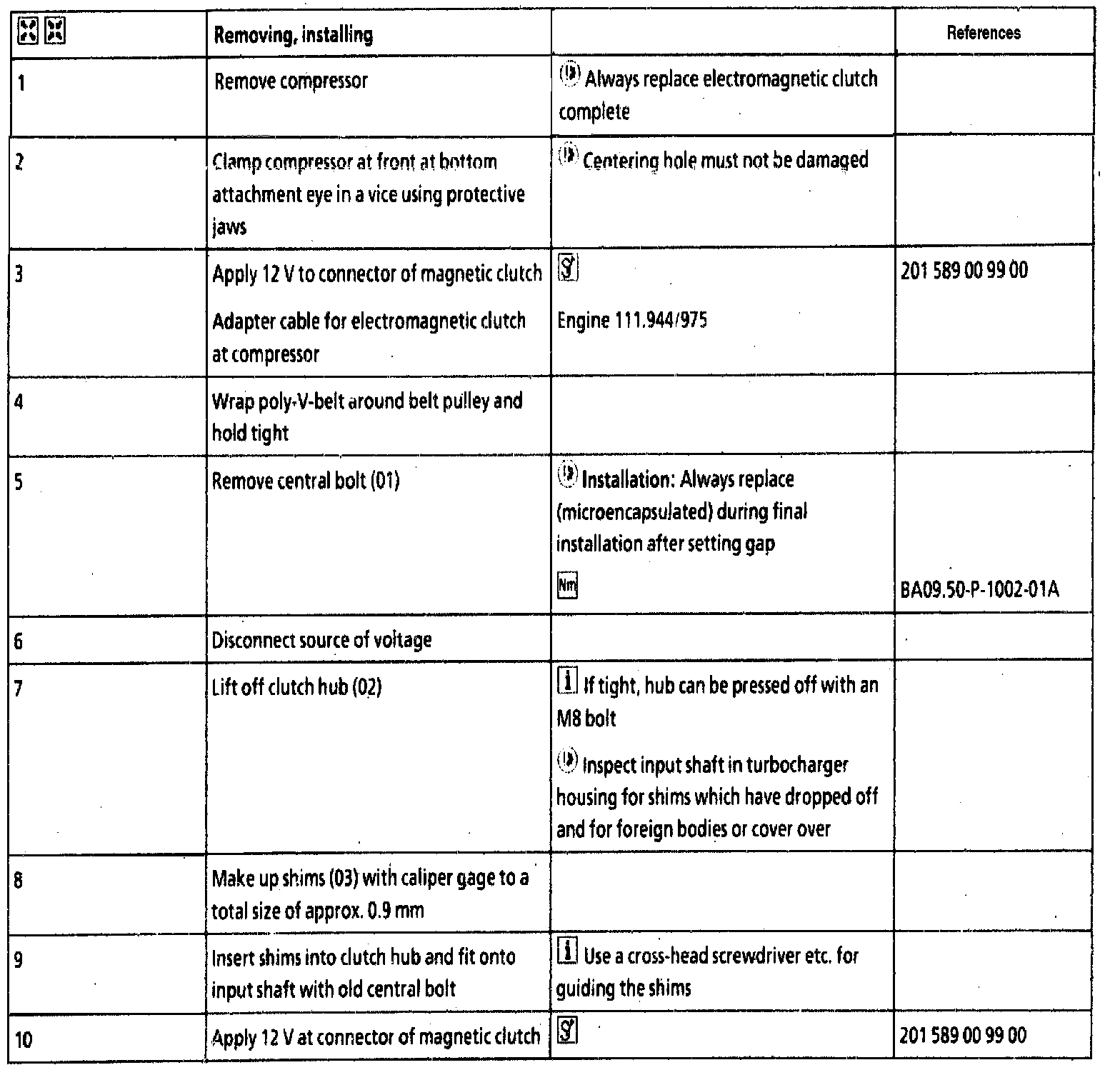

Removing, installing, Part 1 of 2

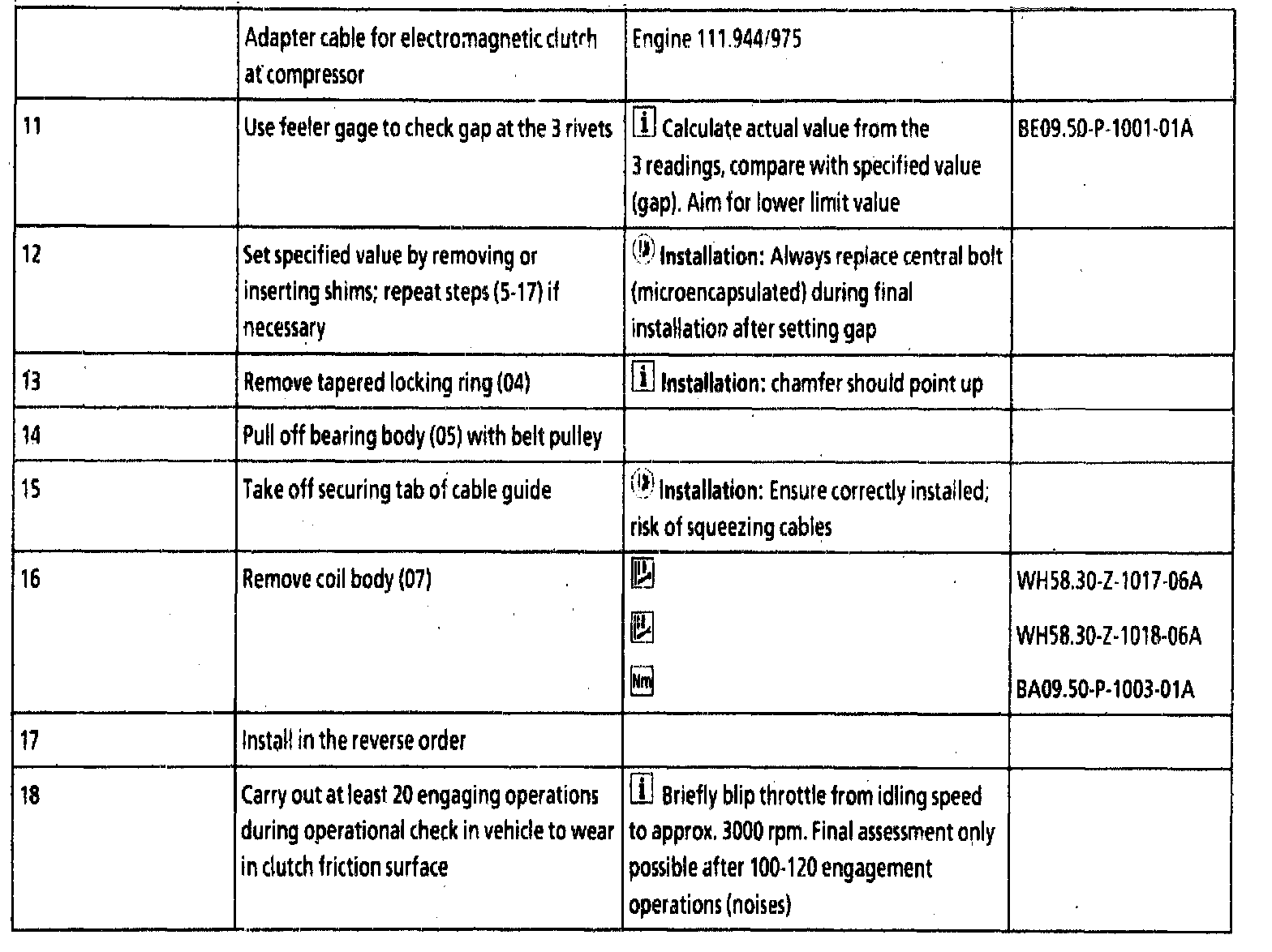

Removing, installing, Part 2 of 2

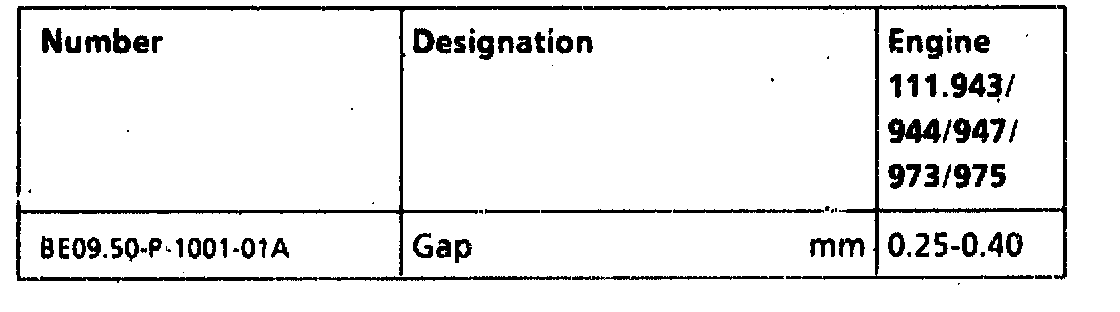

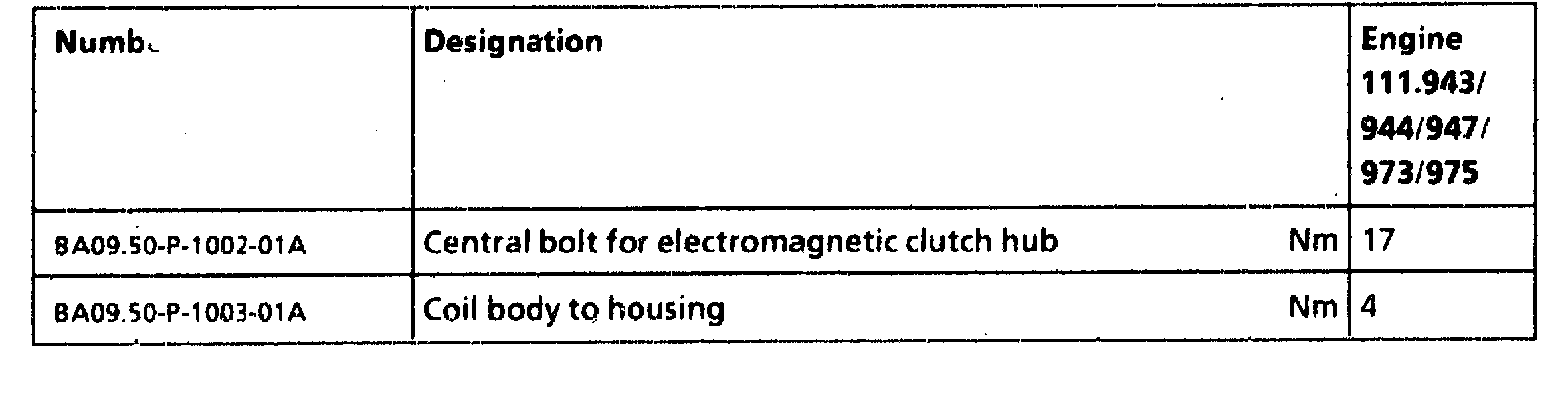

References, Electromagnetic coupling






References (BA), Compressor

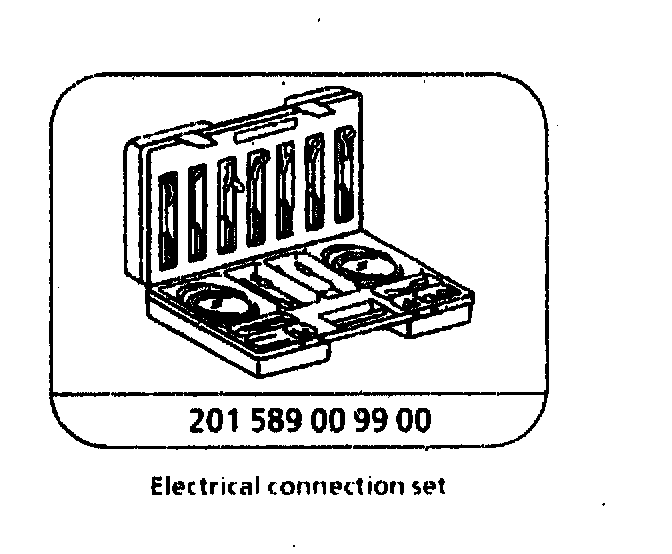

References, Special tools

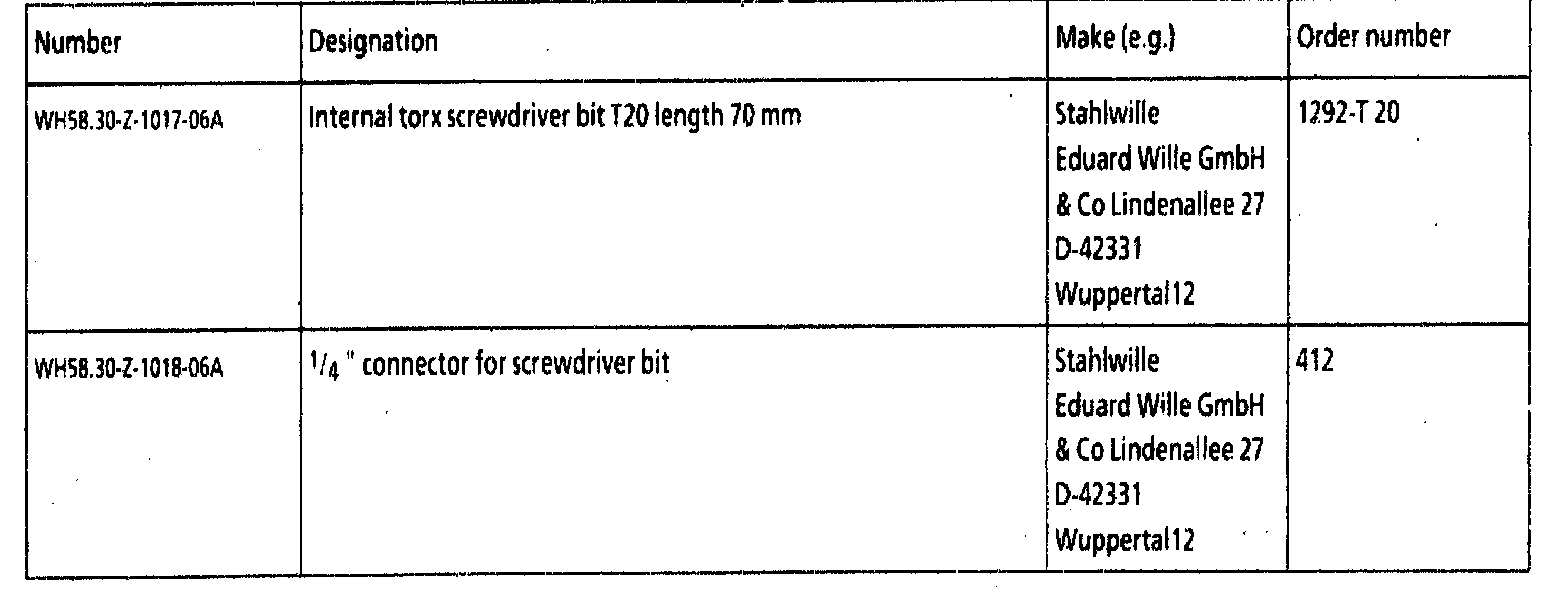

References, Commercially available tools






Adapter Cable For Electromagnetic Clutch At Compressor
