Supercharger Clutch: Adjustments

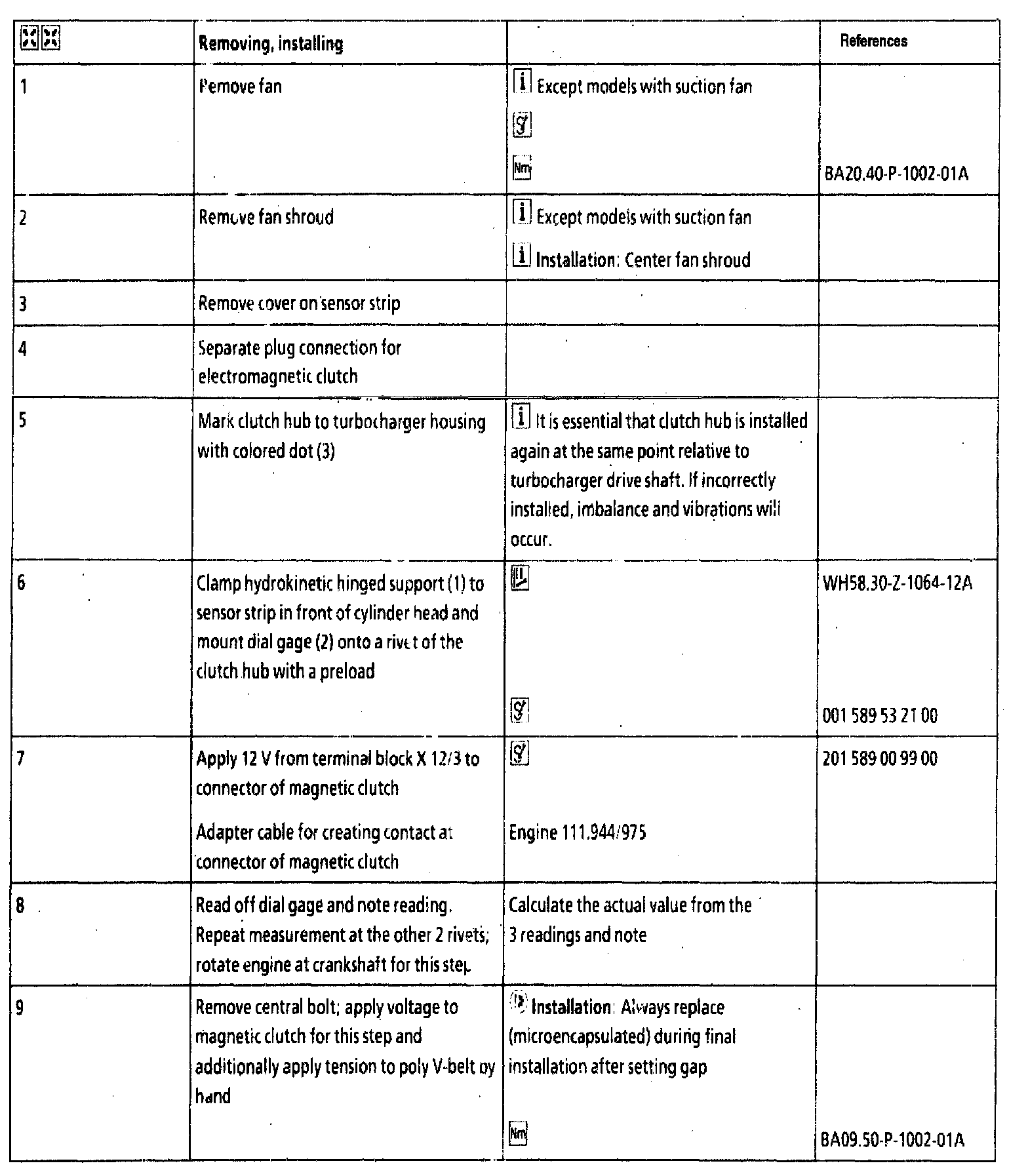

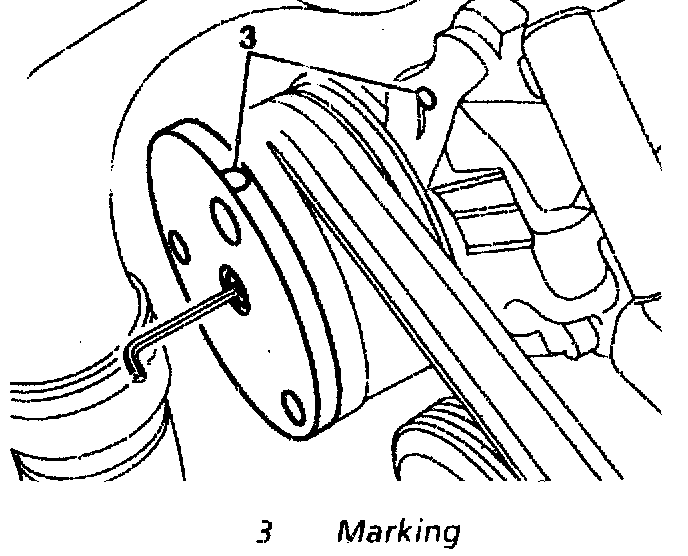

Removing, installing, Part 1 of 2






Removing, installing, Part 2 of 2

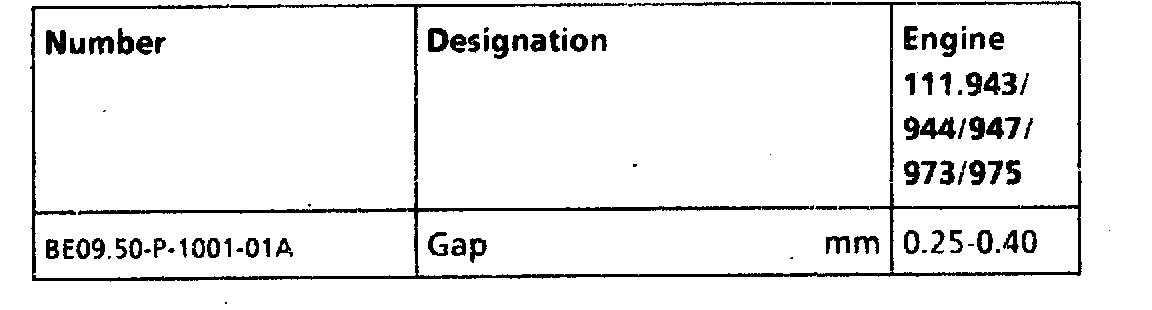

References (BE), Electromagnetic clutch

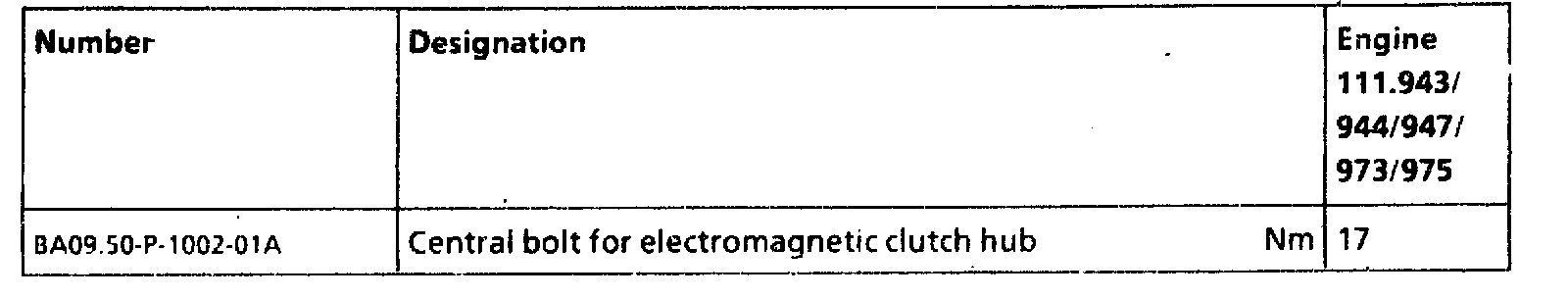

References (BA), Compressor

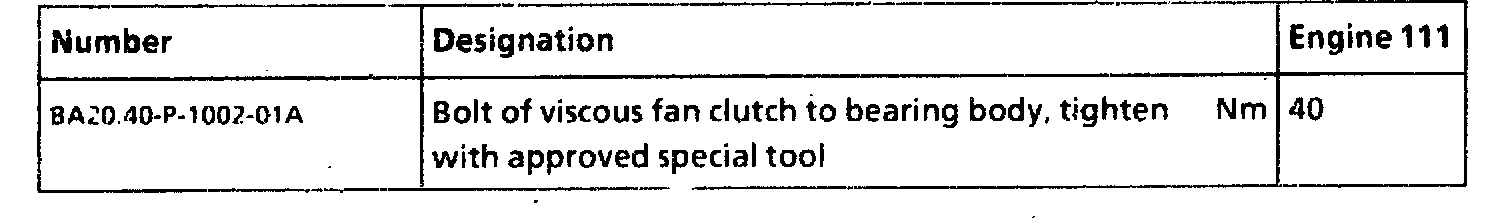

References (BA), Fan, fan clutch

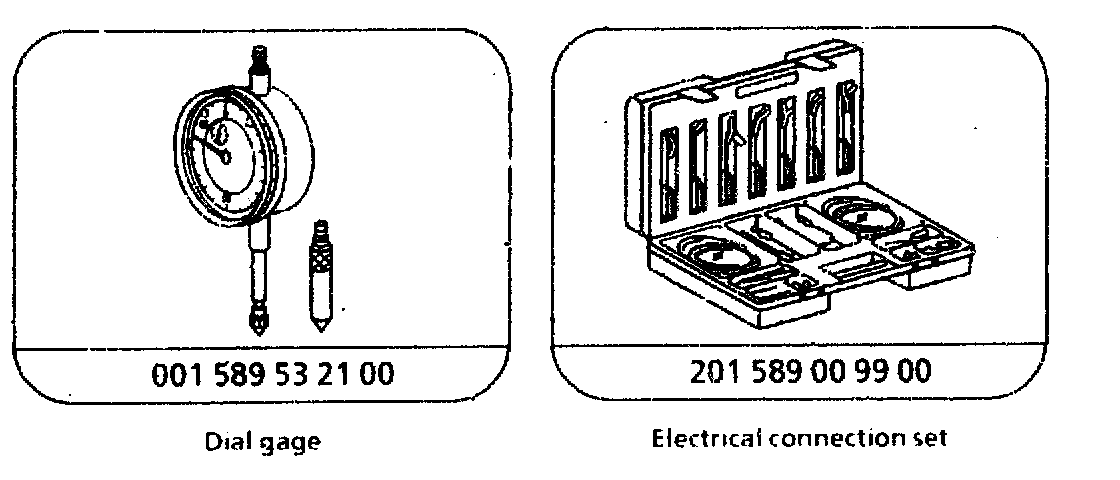

References, Special tools

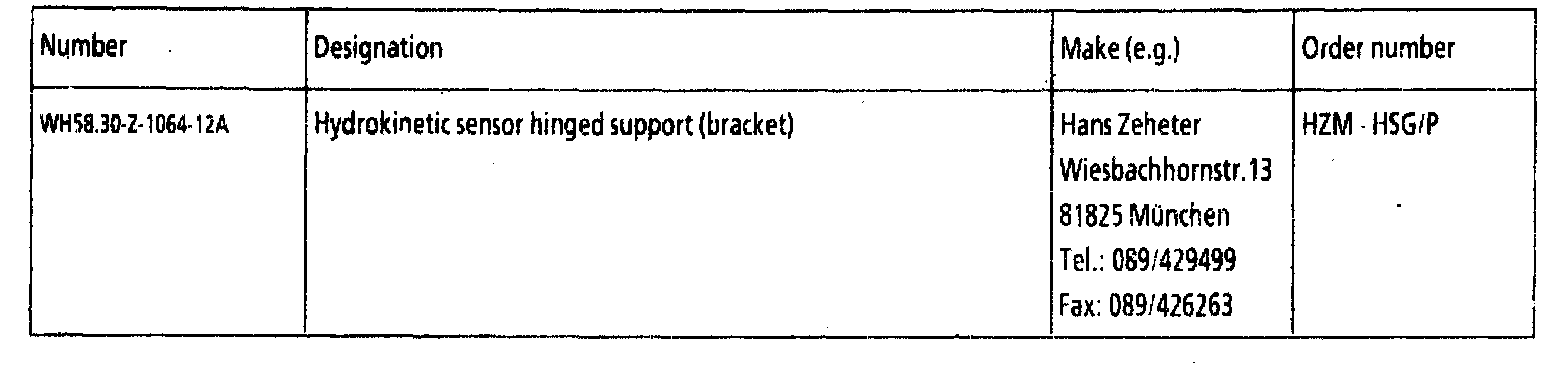

References (WH), Commercially available tools

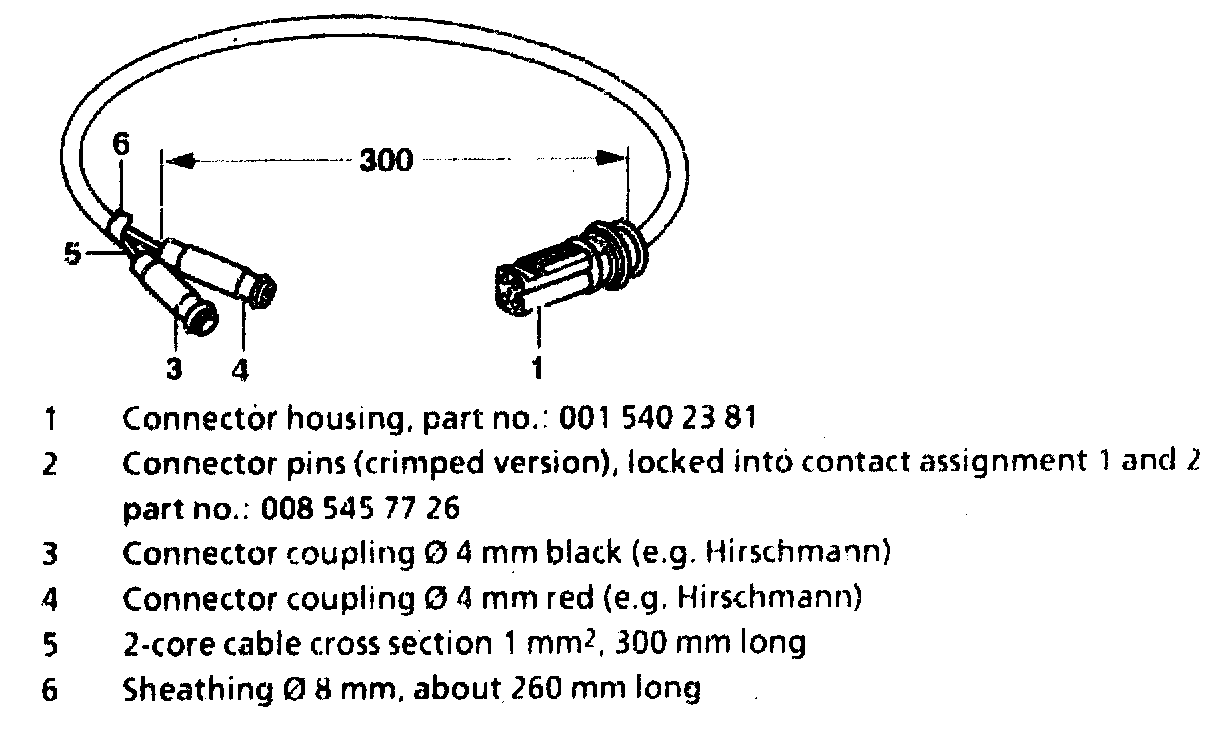

Adapter Cable For Electromagnetic Clutch At Compressor
