Air Bypass Valve Actuator: Locations

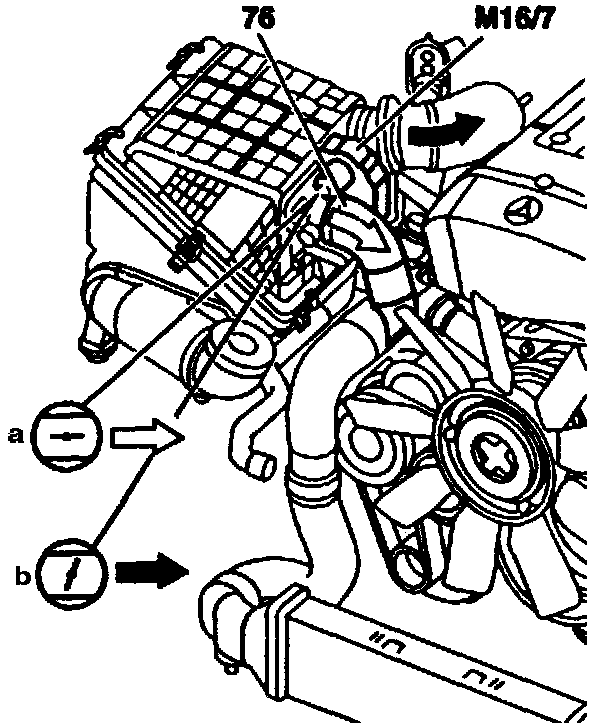

POSITIONAt top part of air cleaner.
76 - Recirculated air pipe
M16/7 - Recirculated air flap actuator
a - Recirculated air flap open (aspiration mode)
b - Recirculated air flap closed (maximum boost pressure)
At top part of air cleaner.
76 - Recirculated air pipe
M16/7 - Recirculated air flap actuator
a - Recirculated air flap open (aspiration mode)
b - Recirculated air flap closed (maximum boost pressure)
