Home
>>
Mercedes Benz
>>
1999
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
ME-SFI Position of Components, By Chassis
ME-SFI Position of Components, By Chassis

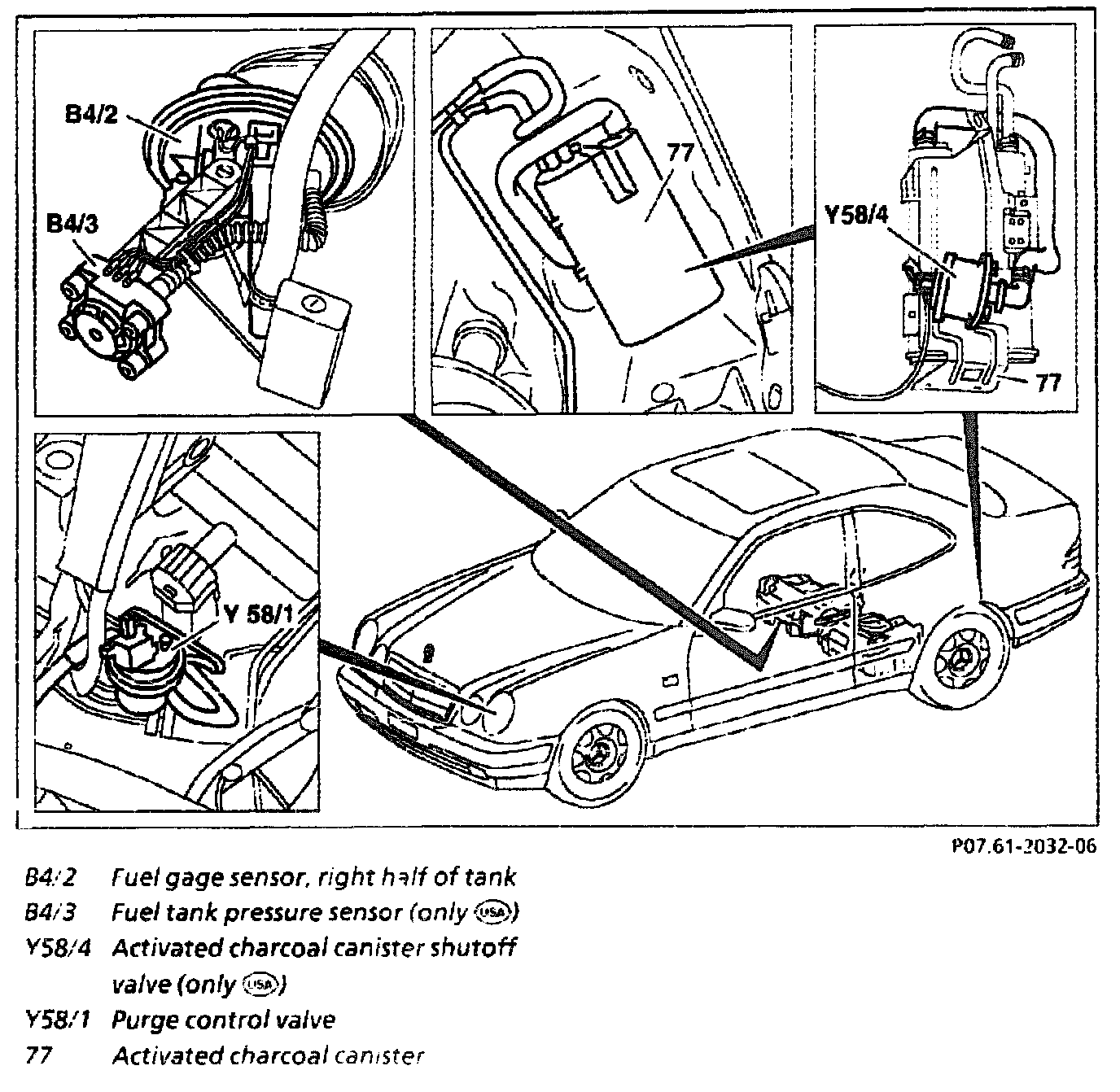

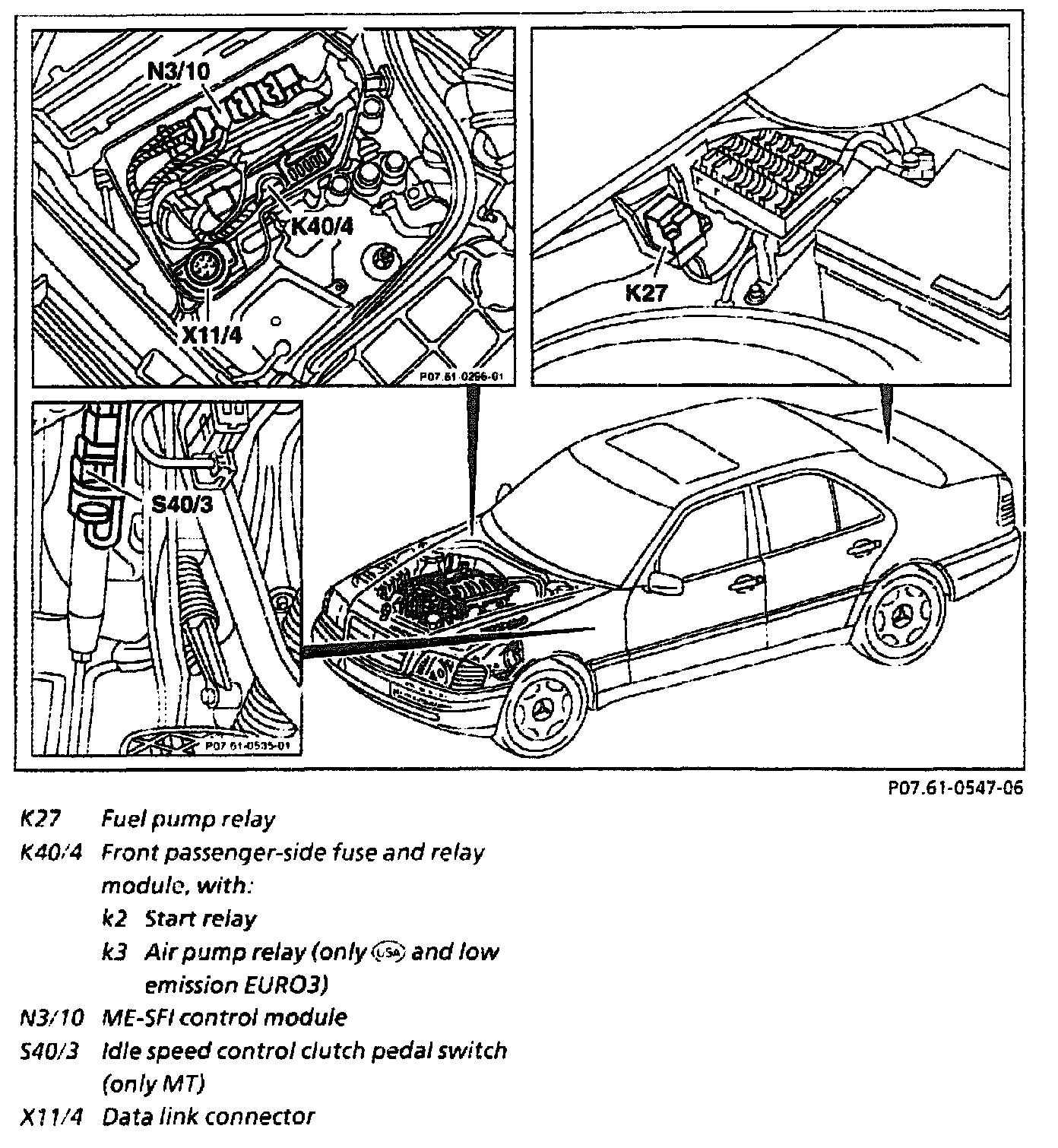

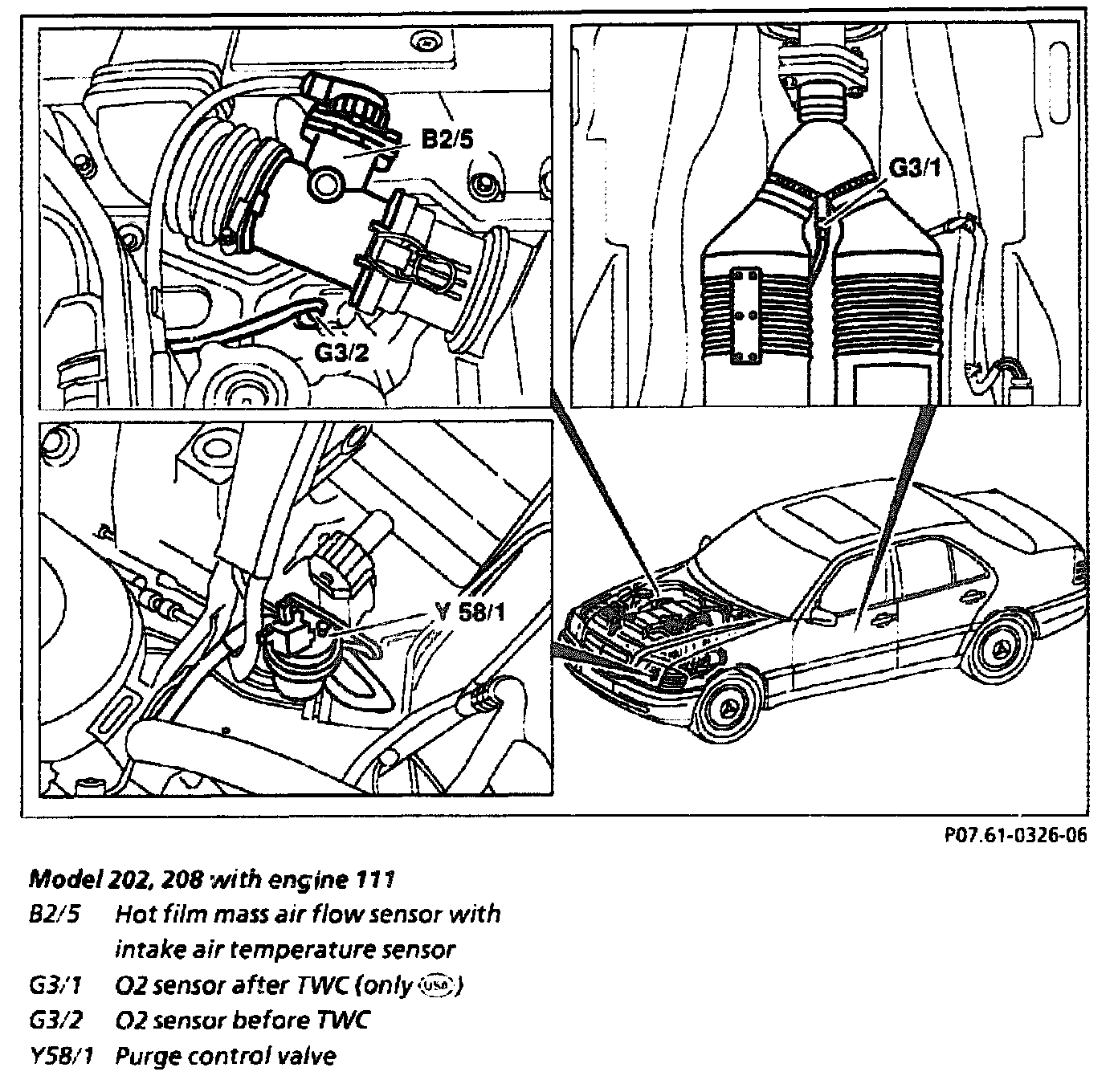

Model 202, 208 With Engine 111:
Model 202, 208 With Engine 112:
Model 208 With Engine 113:
