Remove/Install Pressure Connection at Compressor








Shown on model 111.975

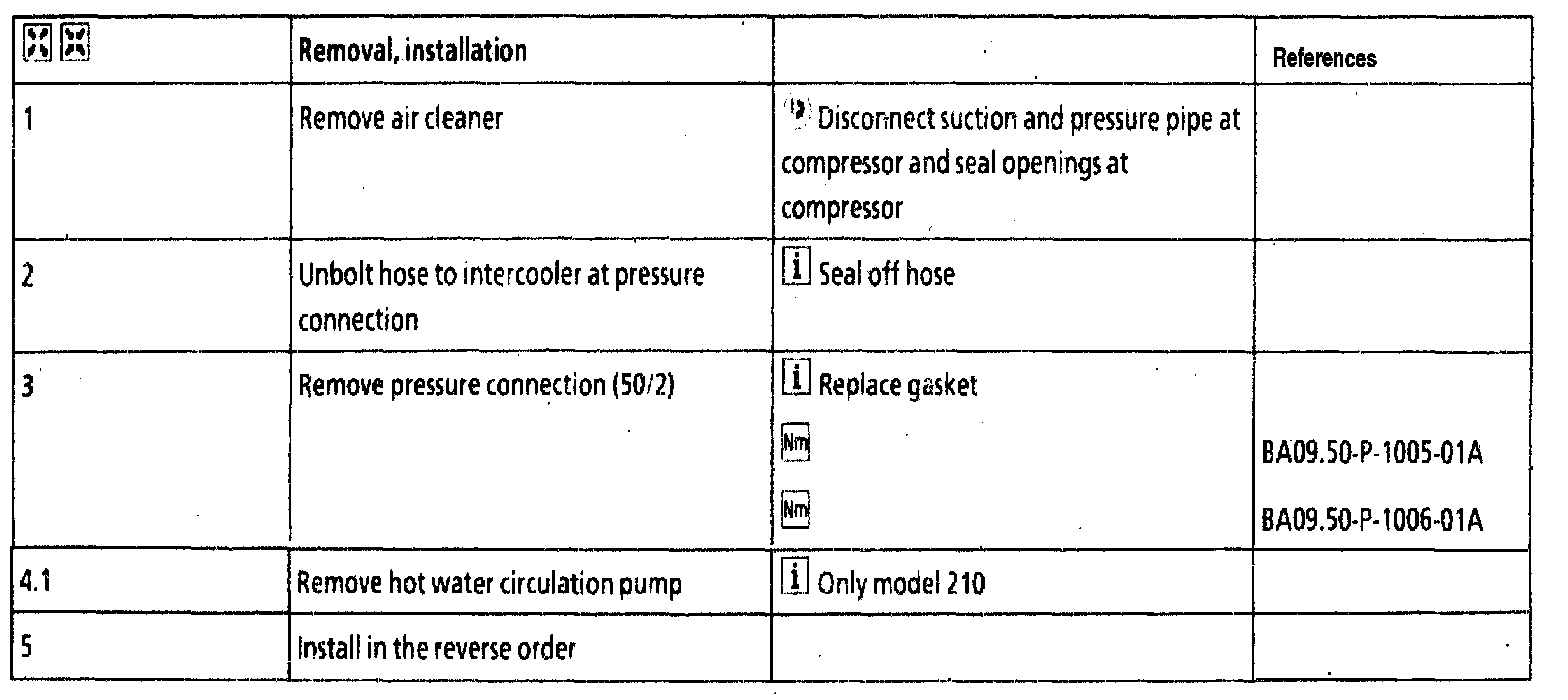

Removal, installation

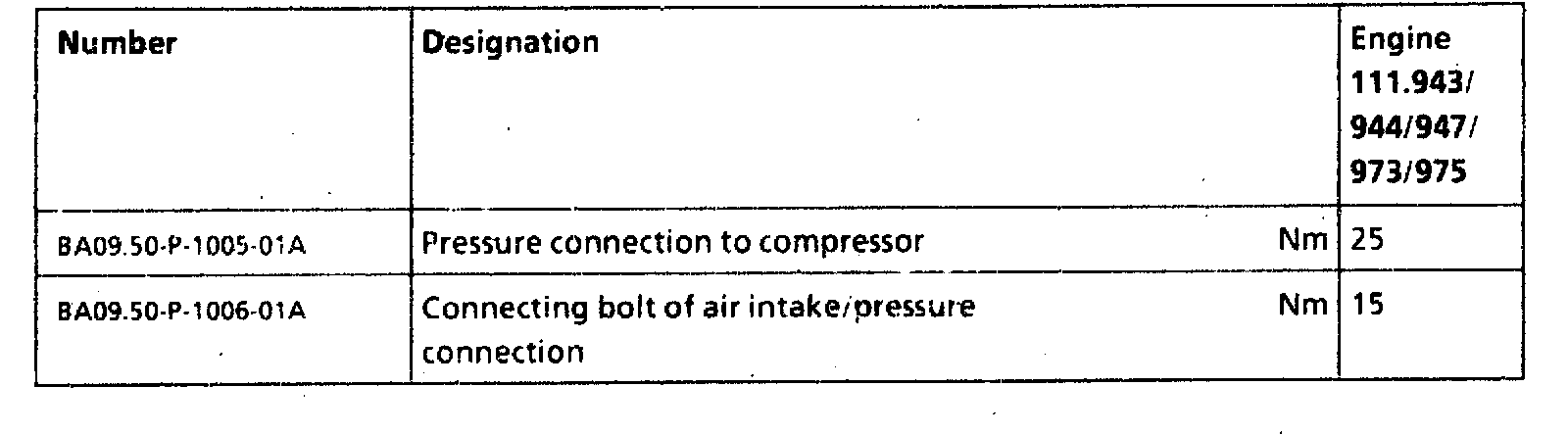

References (BA), Compressor
