GF47.10-P-3000-01E Fuel Tank Function

GF47.10-P-3000-01E Fuel Tank Function

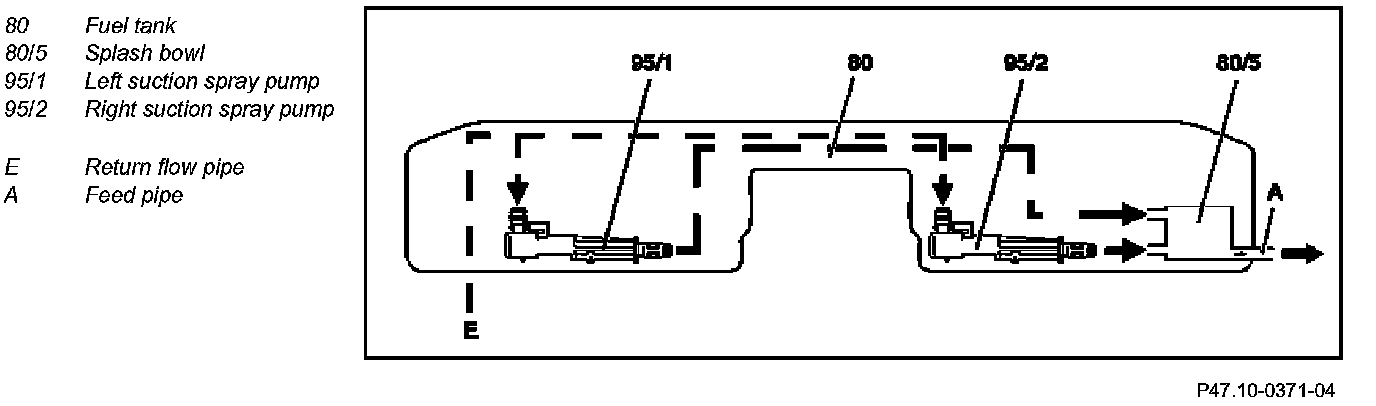

The fuel flows from the return flow pipe (E) as a partial flow through the suction spray pump (95/1) in the left chamber of the fuel tank and the remaining quantity through the second suction spray pump (95/2) in the left chamber of the fuel tank along the connection pipes to the splash bowl (80/5) in the right chamber of the fuel tank.
