AR13.22-P-1202A Remove/Install Poly V-Belt
AR13.22-P-1202A Remove/Install Poly V-Belt

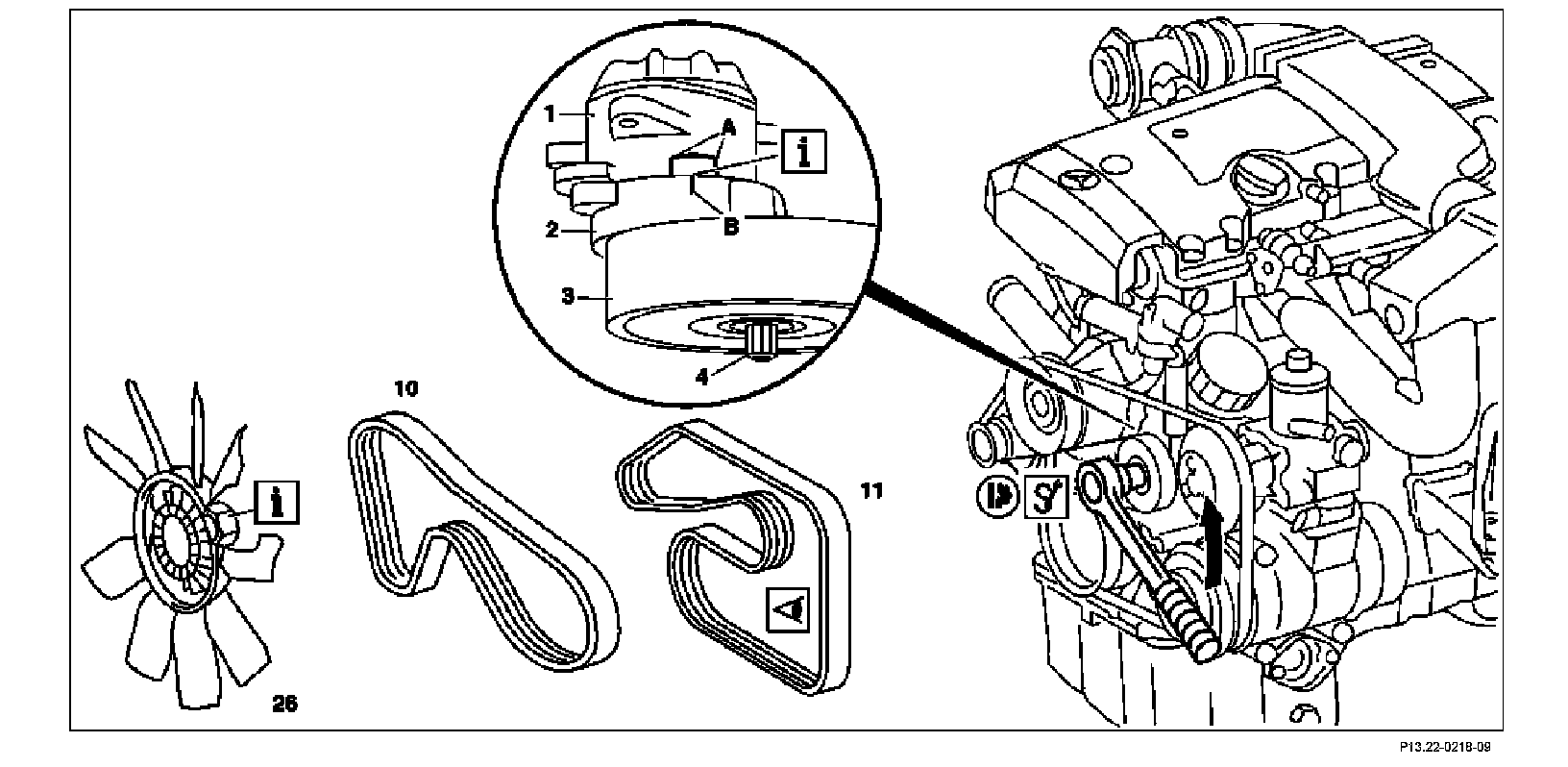

Remove poly V-belt, install

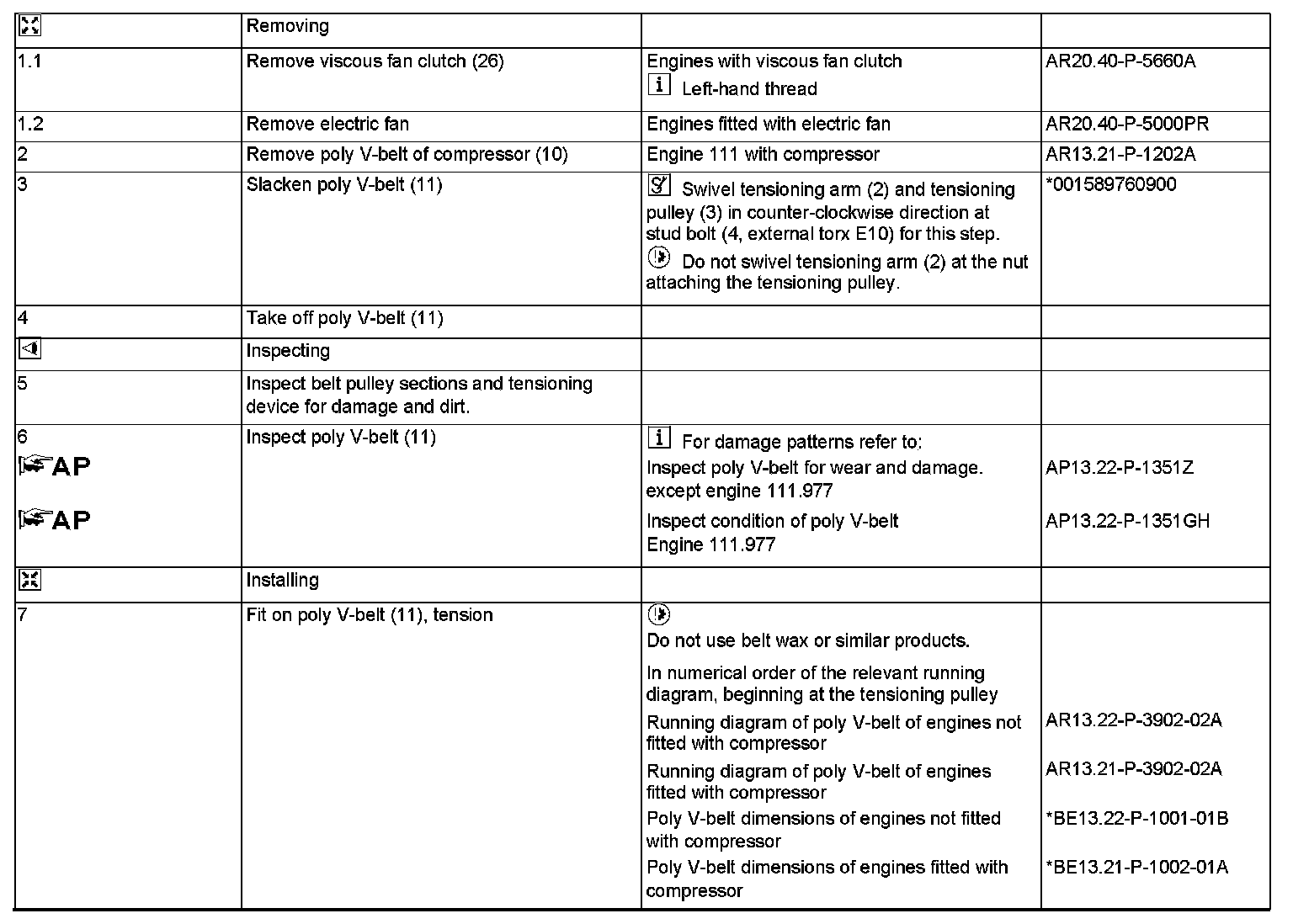

Steps 1-7:

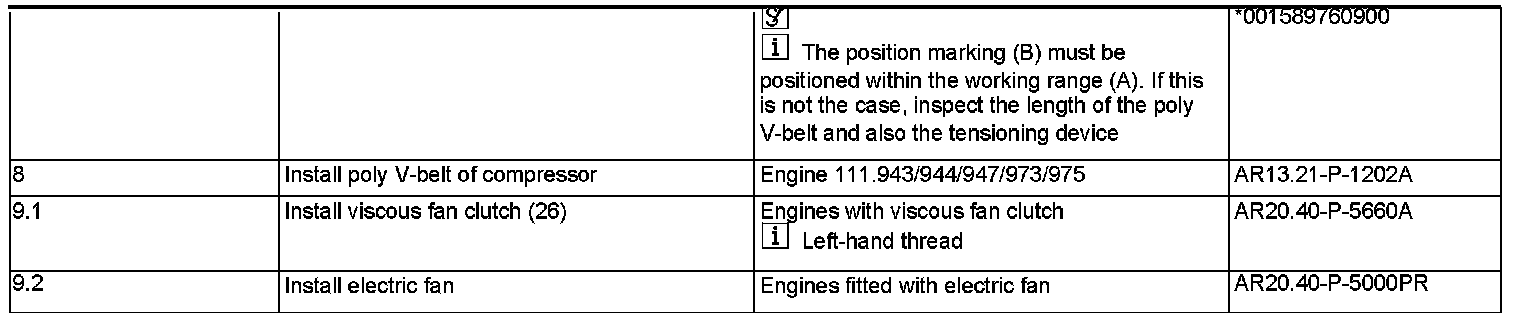

Steps 7-9:
