Drive Belt: Diagrams

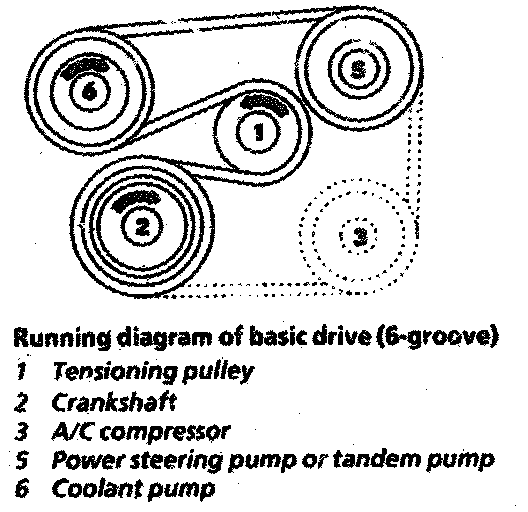

Basic Drive (6-groove):

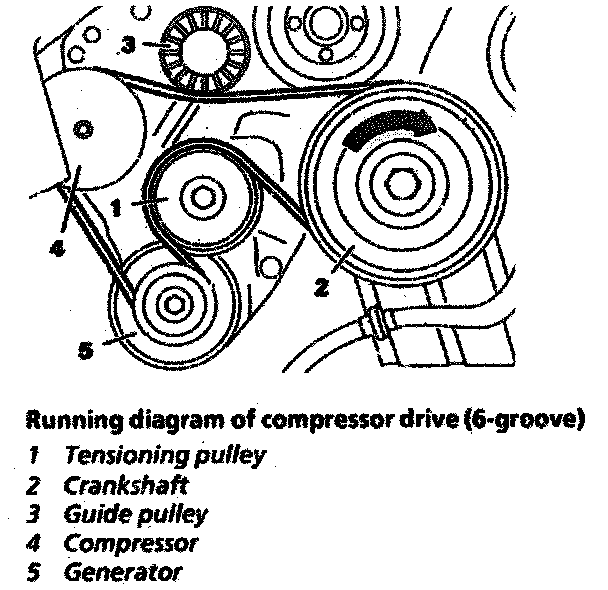

Compressor Drive (6-groove):

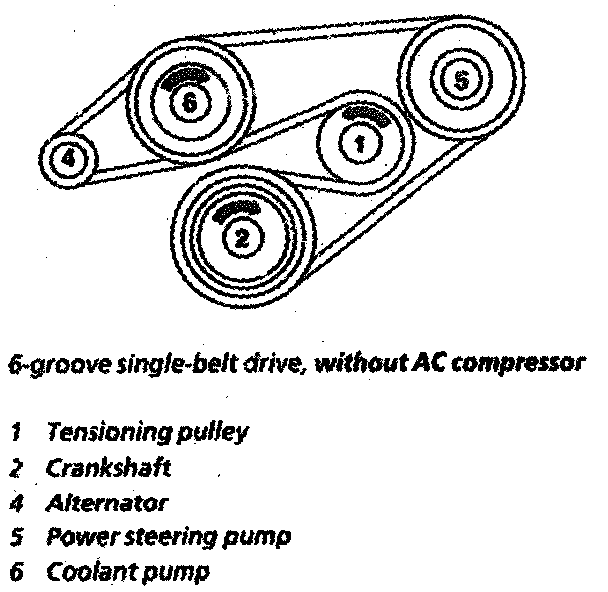

Single Belt Drive, Without A/C:

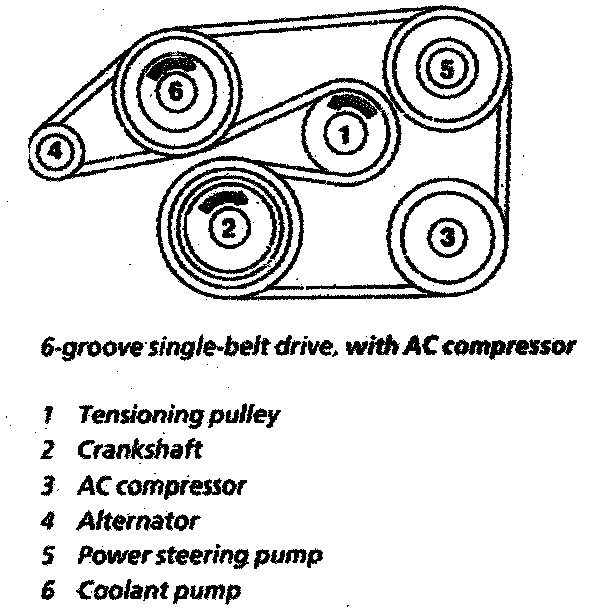

Single Belt Drive, With A/C:
