B3.7 Trunk (Right)

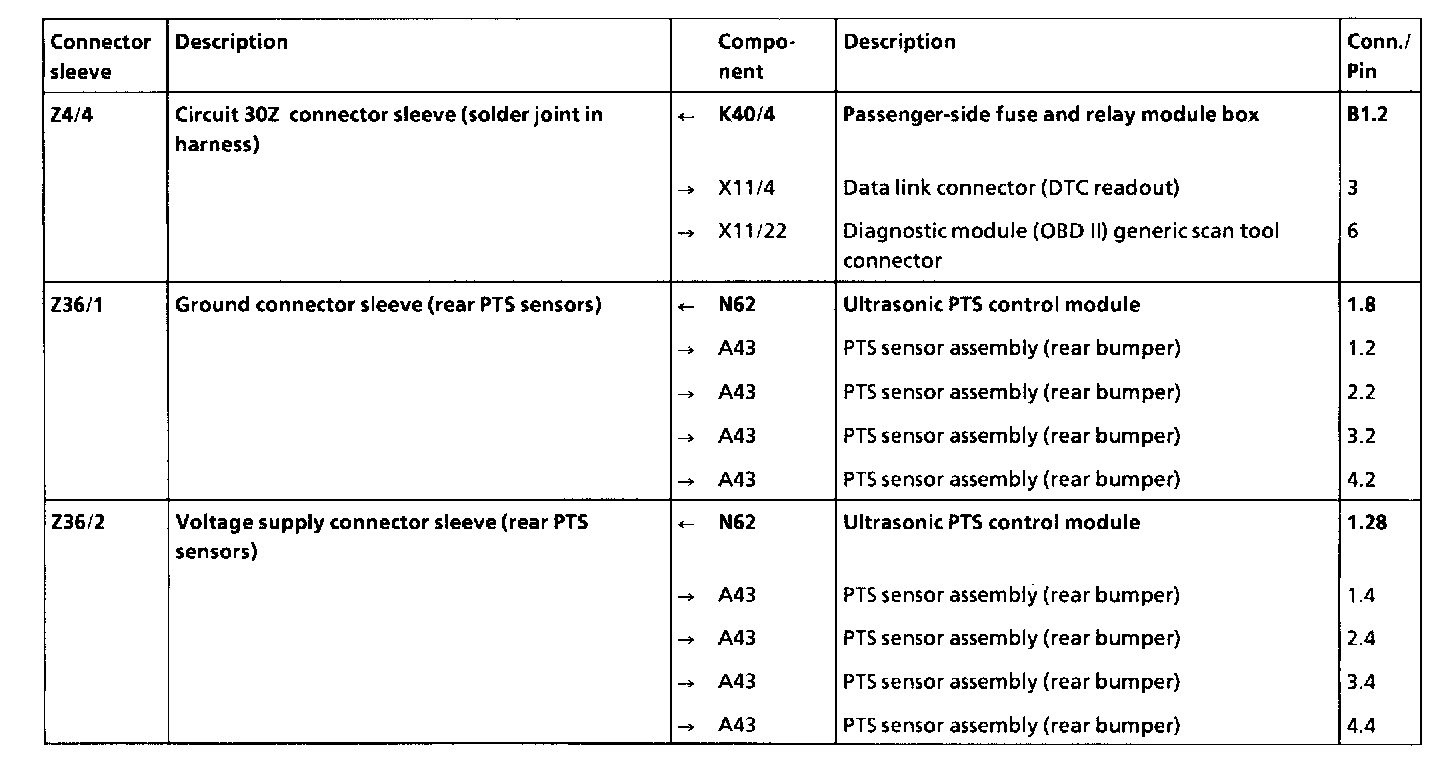

Arrangement and assignment of Z end connectors (connectors in harness) in right of trunk

Splice Locations:







Connector ID

Z4/4 - Z36/2:
