Lamp Out Indicator: Testing and Inspection

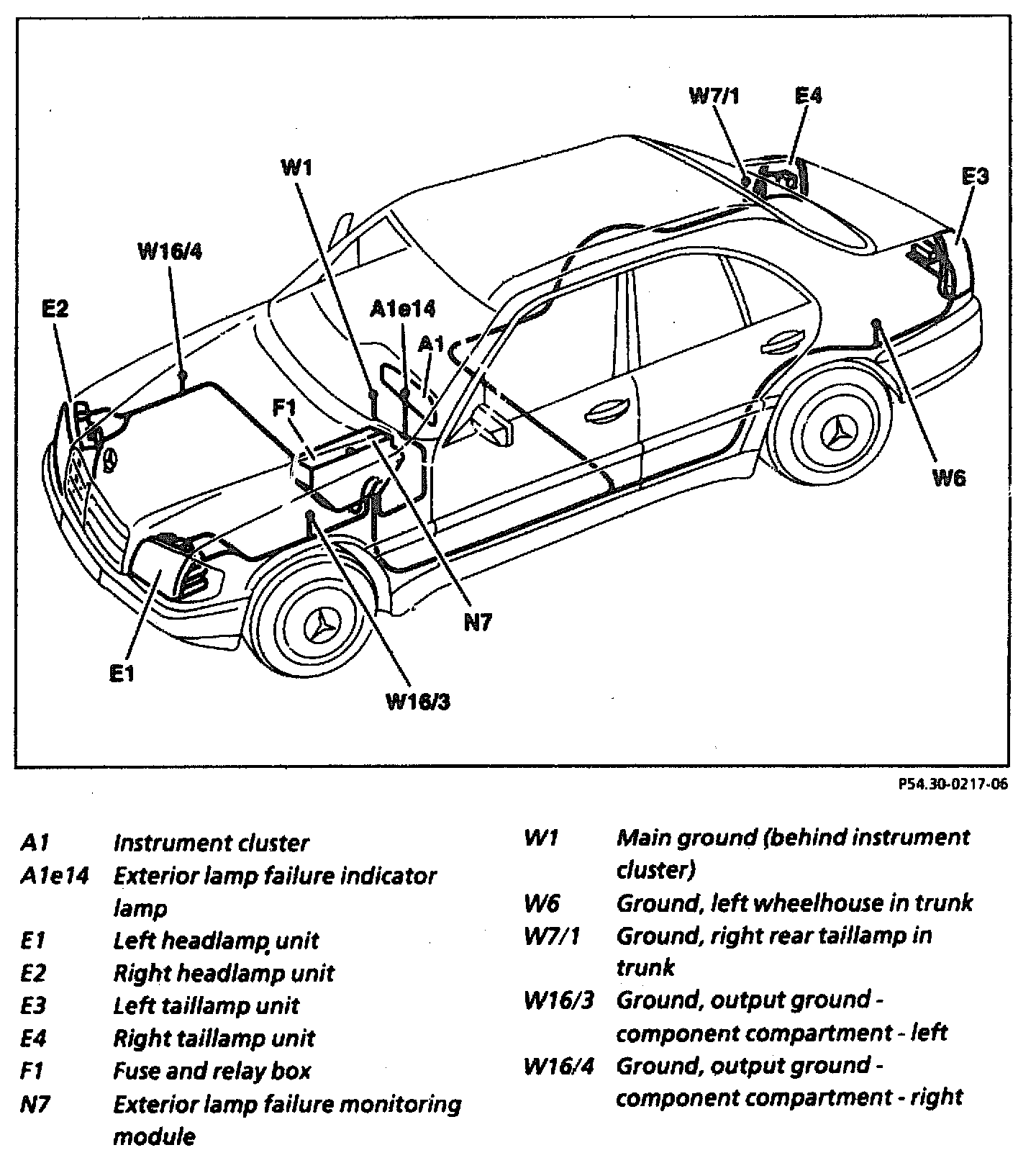

Component Identification:






NOTE: The figure shows the routing of the wires in the model 202 sedan. The schematic for the wire routing and location of the components is also applicable for the T-model.

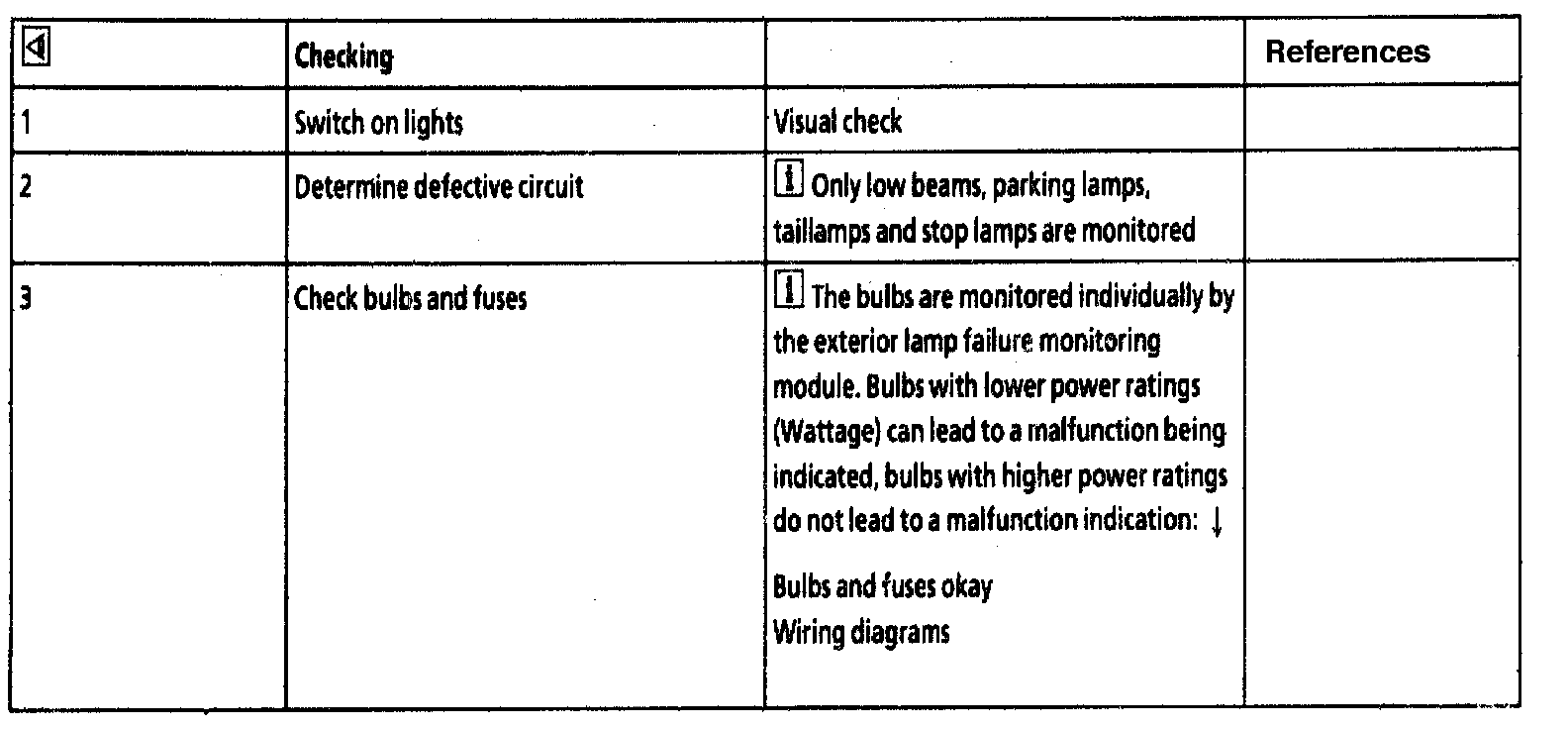

Checking, Steps 1 - 3:
