Air Conditioning (A/C)




Air Conditioning (A/C)

Models 202 (as of MY 1996)

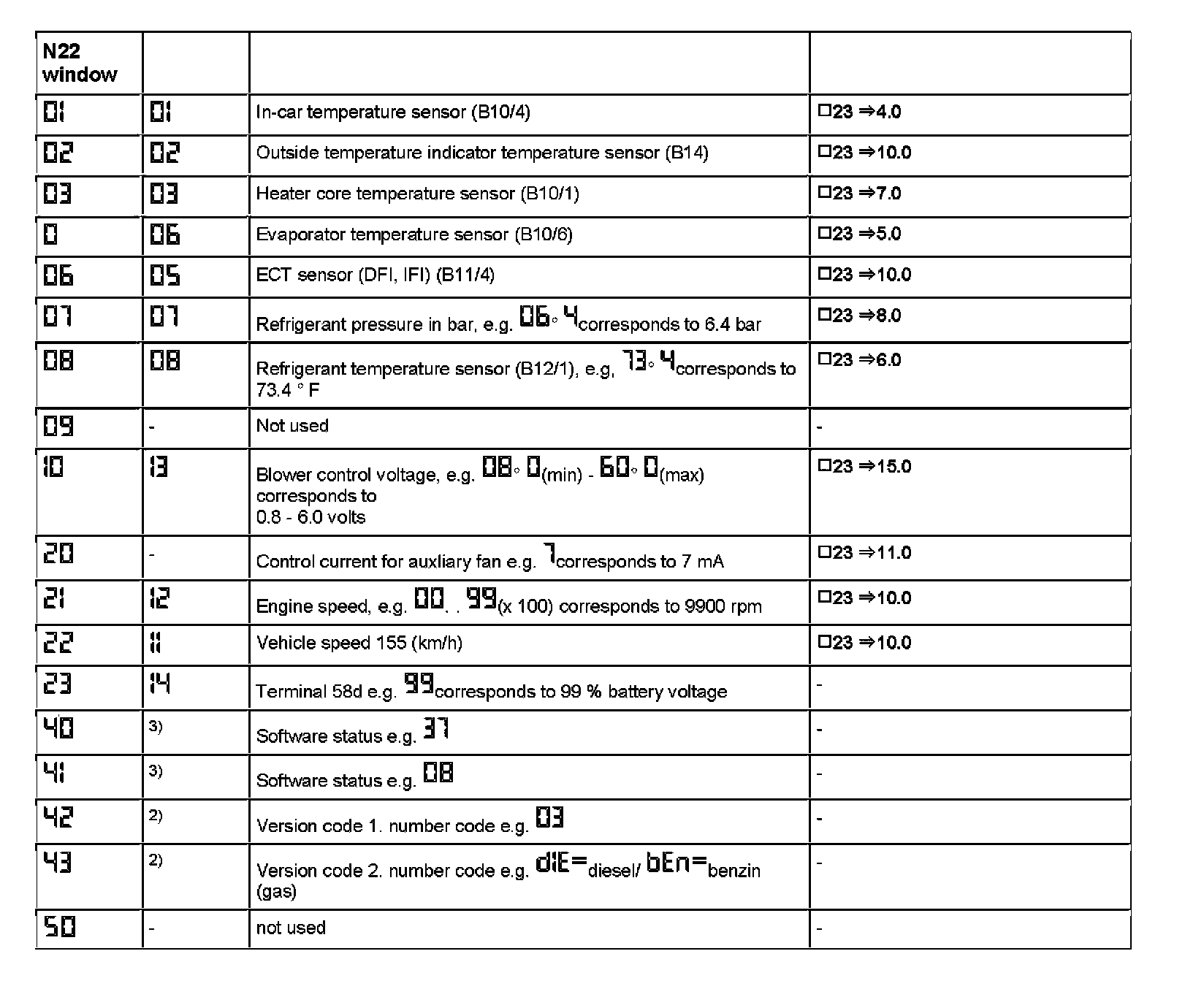

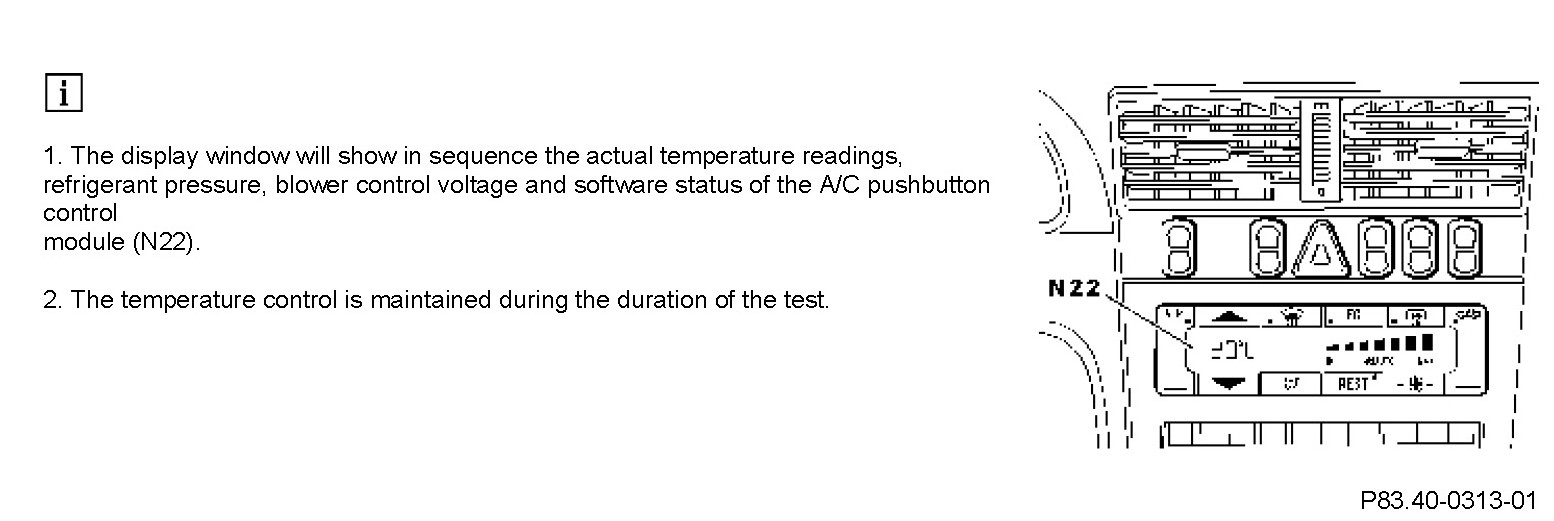

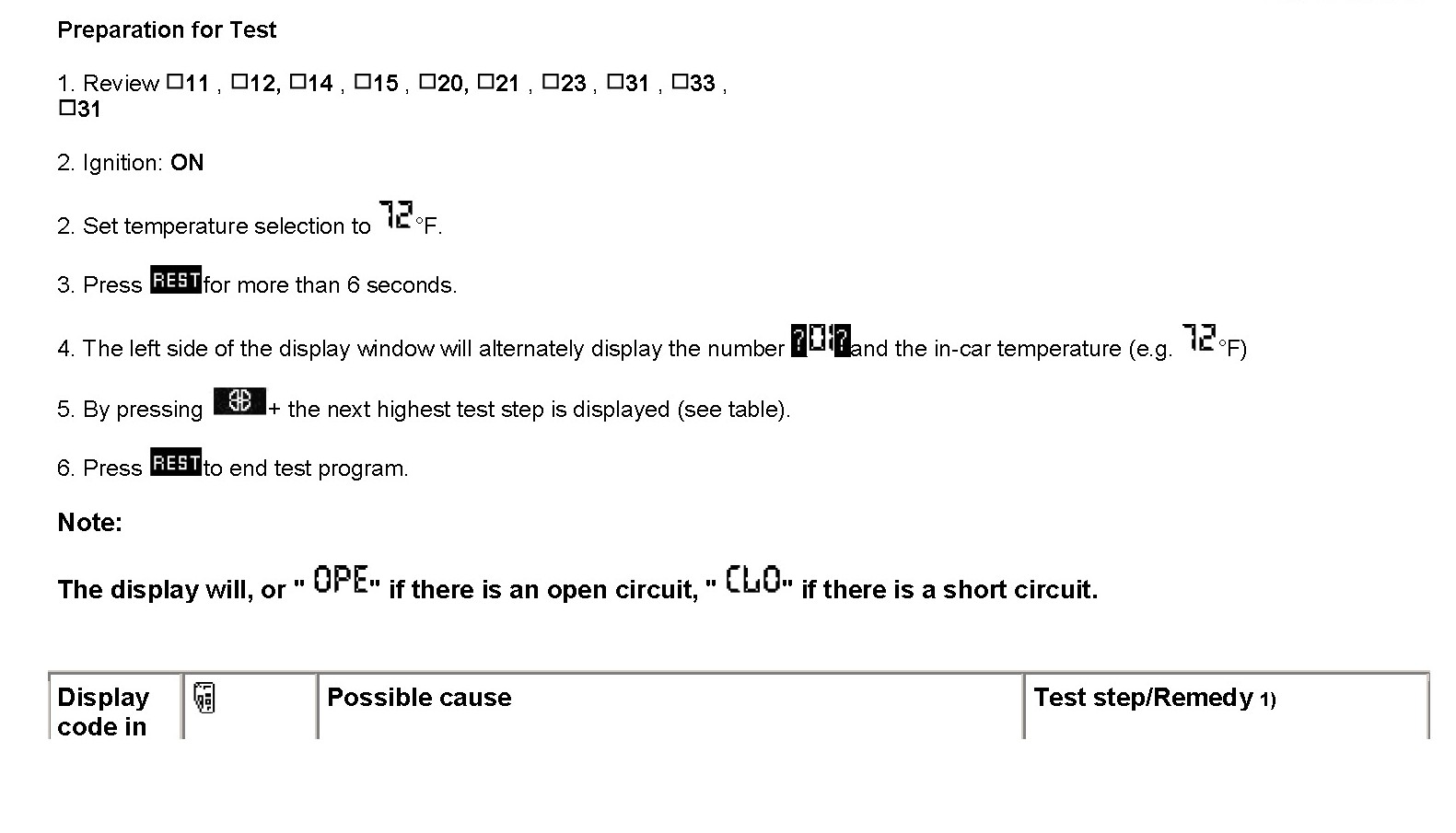

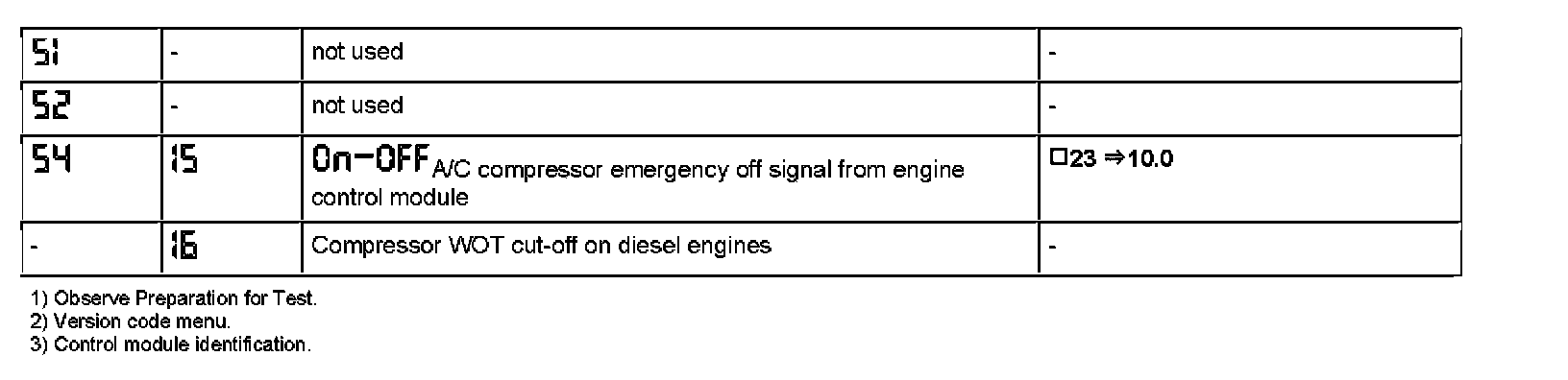

Reading Actual Values (via A/C Pushbutton Control Module [N22])
