Air Conditioning (A/C) (Tempmatic)

Air Conditioning (A/C) (Tempmatic)

Models 202 (as of MY 1999)

Electrical Test Program (ETP) - Preparation for Test

1. Remove A/C pushbutton control module (N19)
2. Review "Connection Diagram - Socket box"

Note: Upon completion of test, erase DTC memory from A/C pushbutton control module (N19) (see section 0).

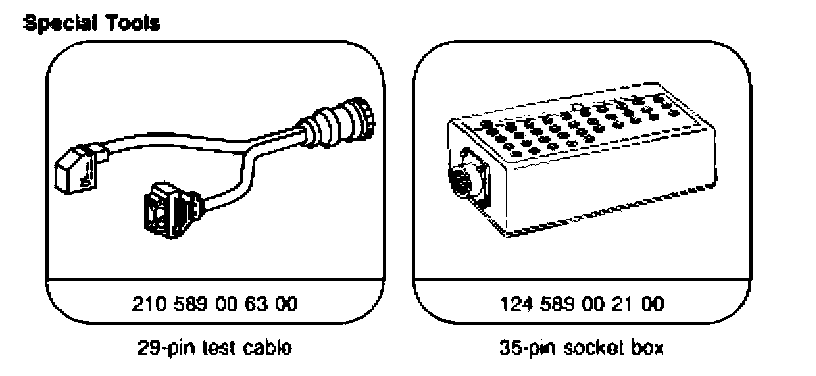

Special Tools:

Test Equipment:

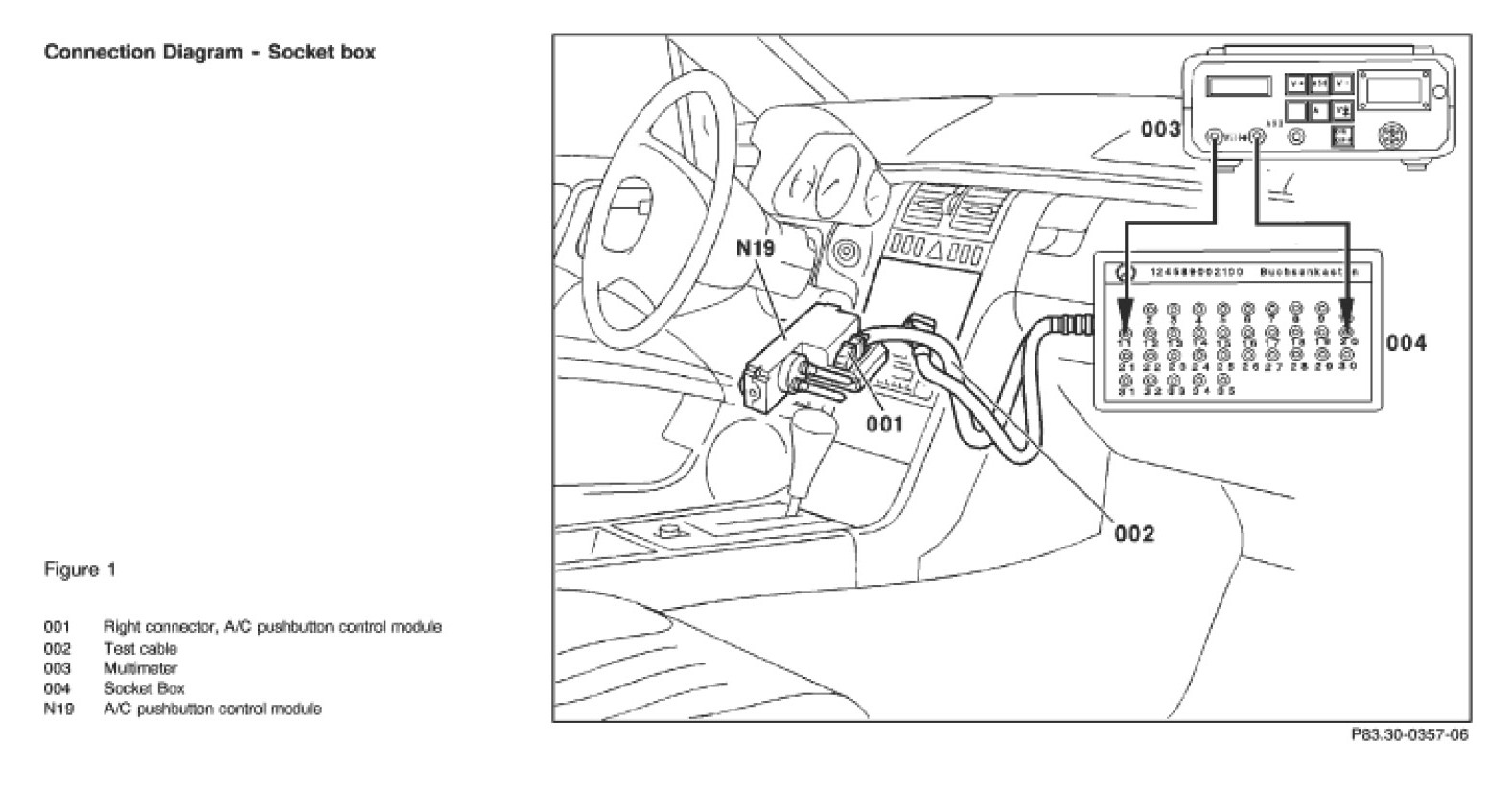

Connection Diagram - Socket box:
