Heater Core: Locations

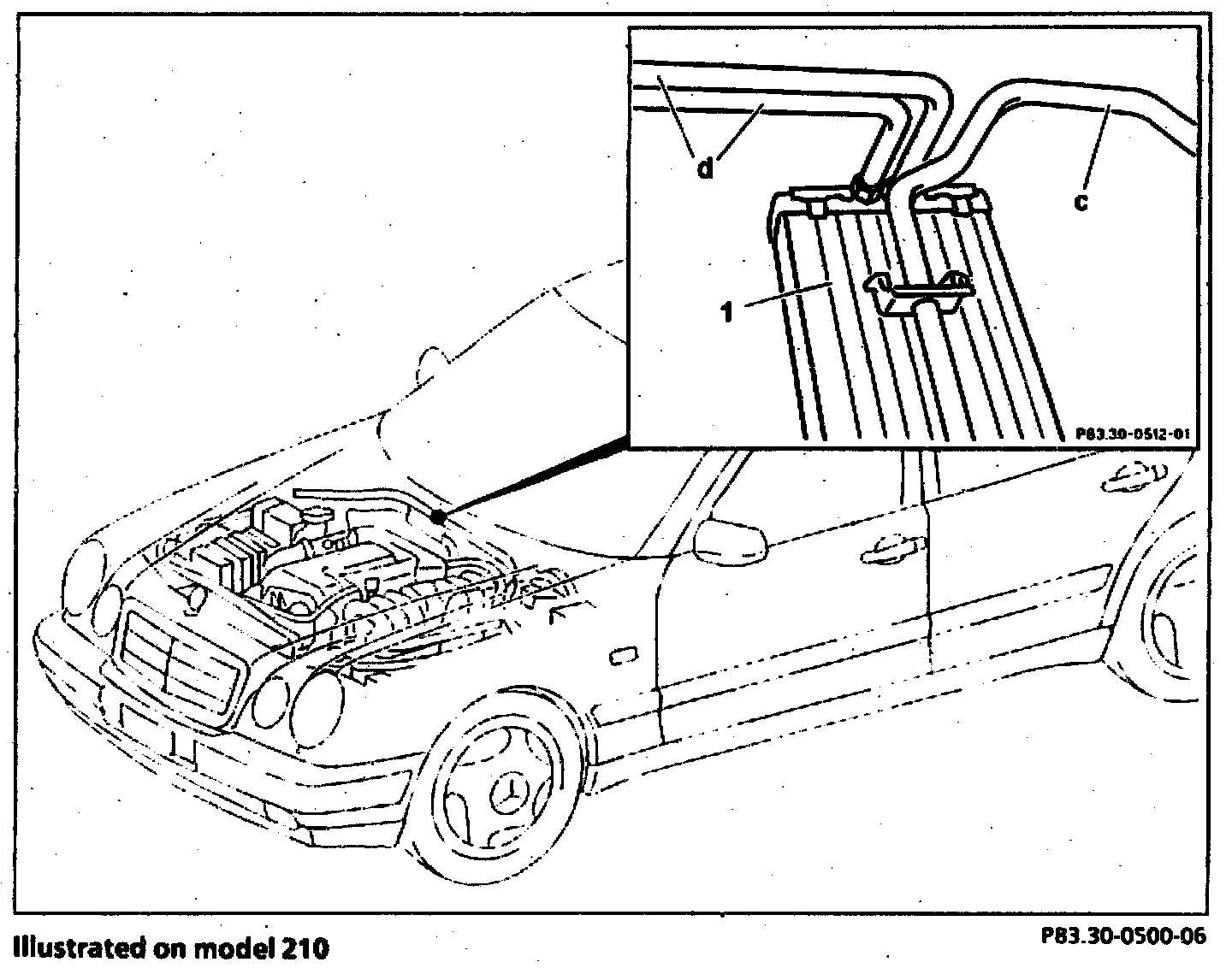

Illustrated On Model 210:






The heater core (1) is located behind the instrument panel in the heater/air conditioning housing.
