Evaporator Case: Service and Repair

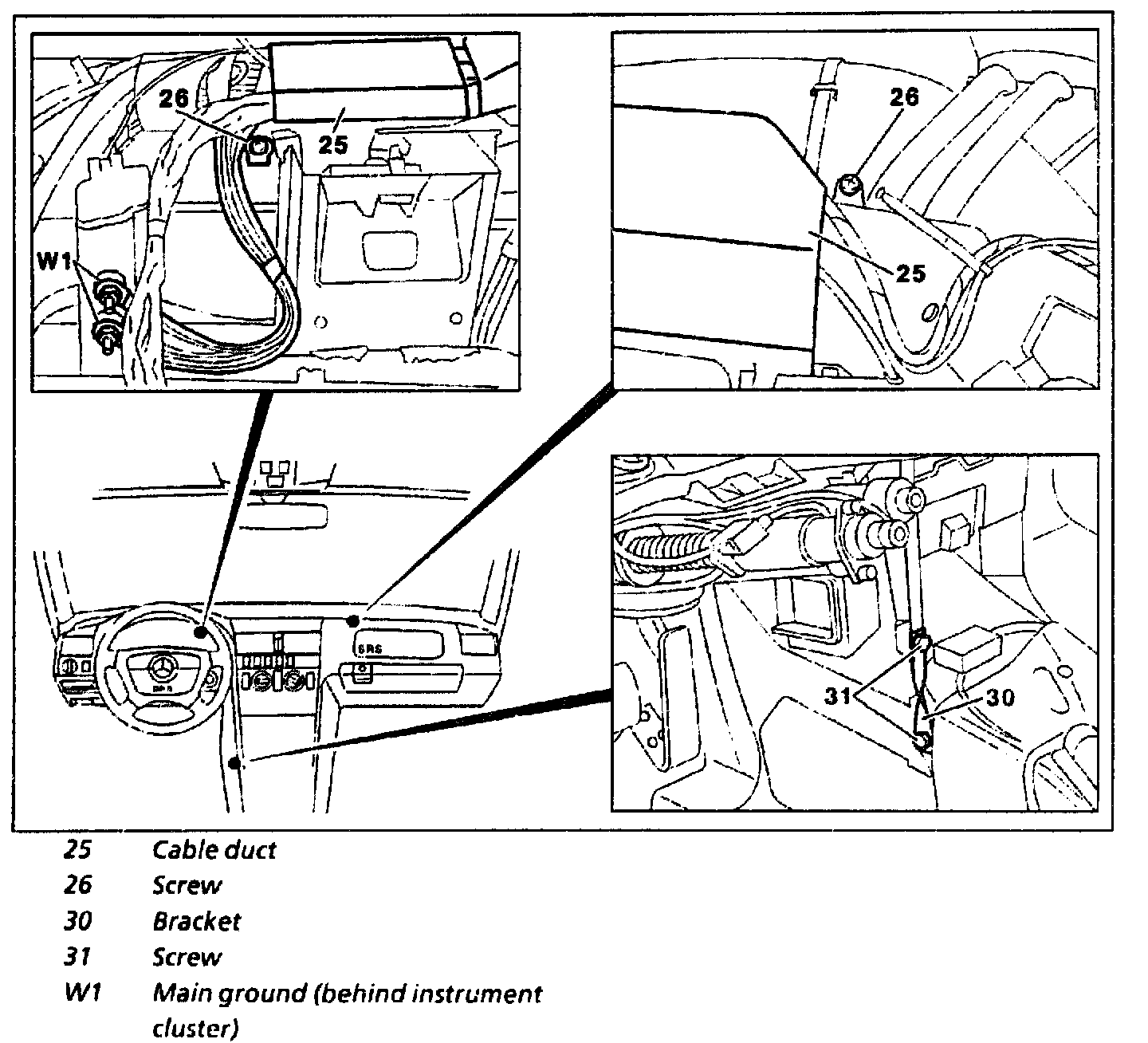

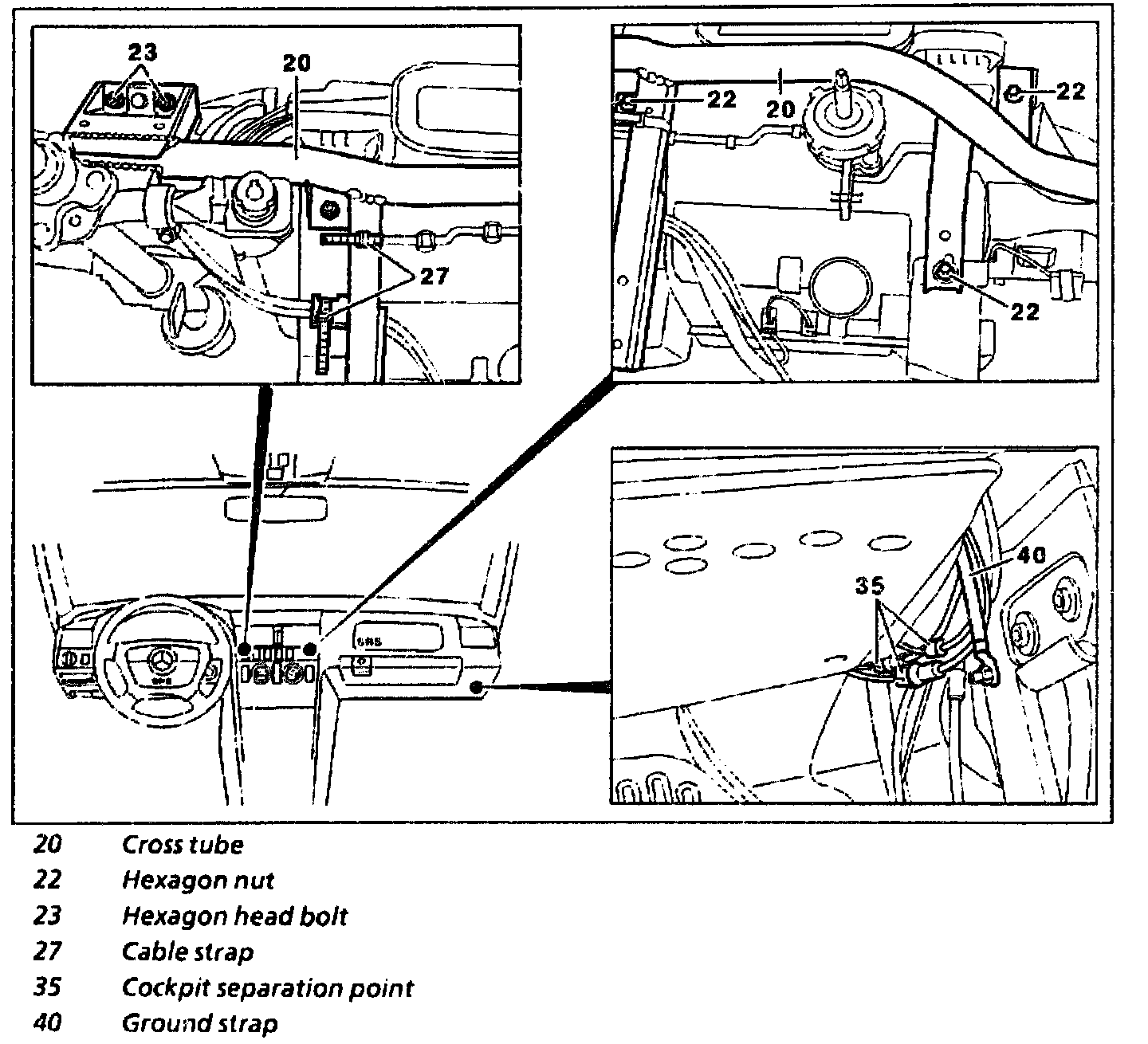

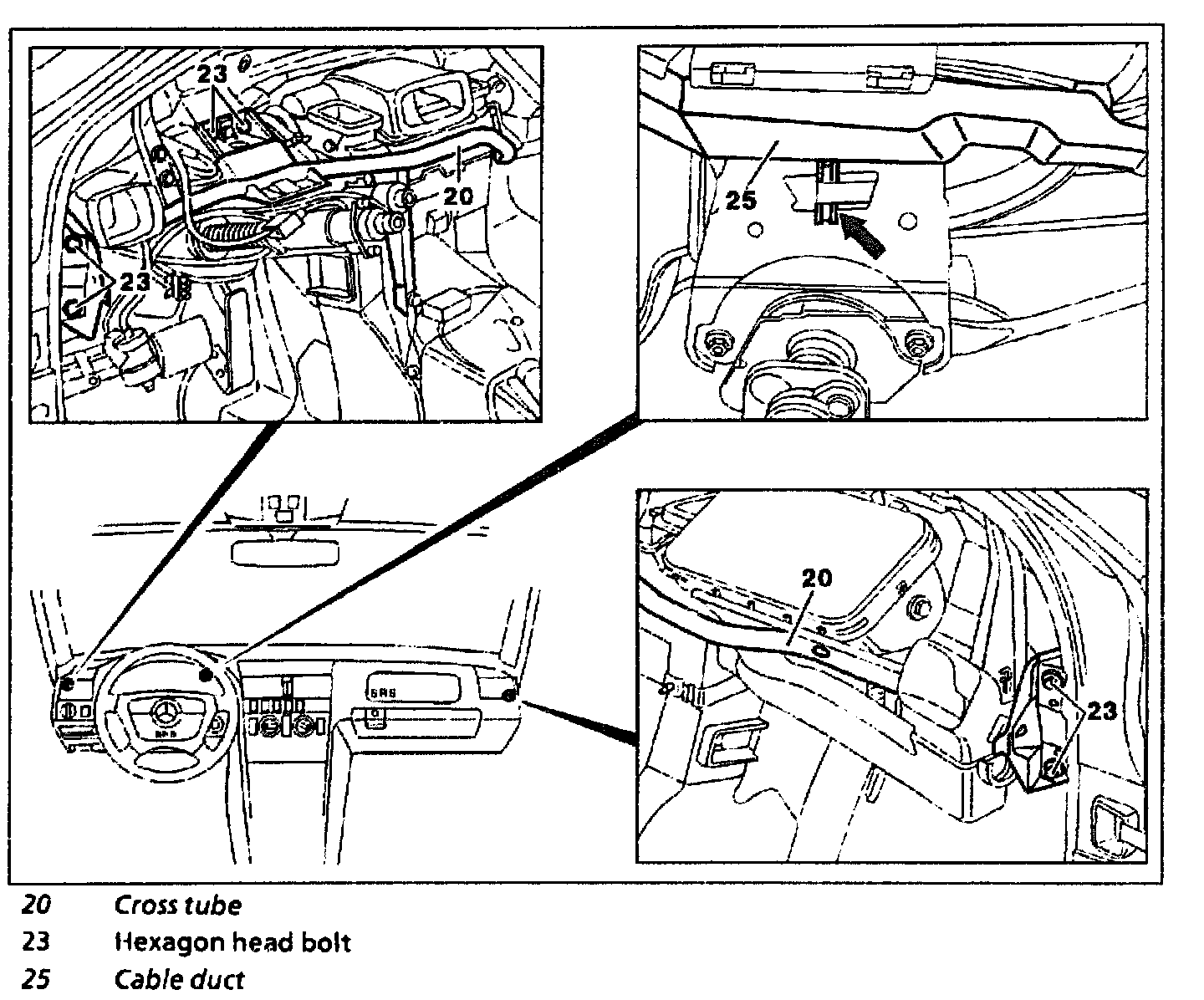

Component Identification

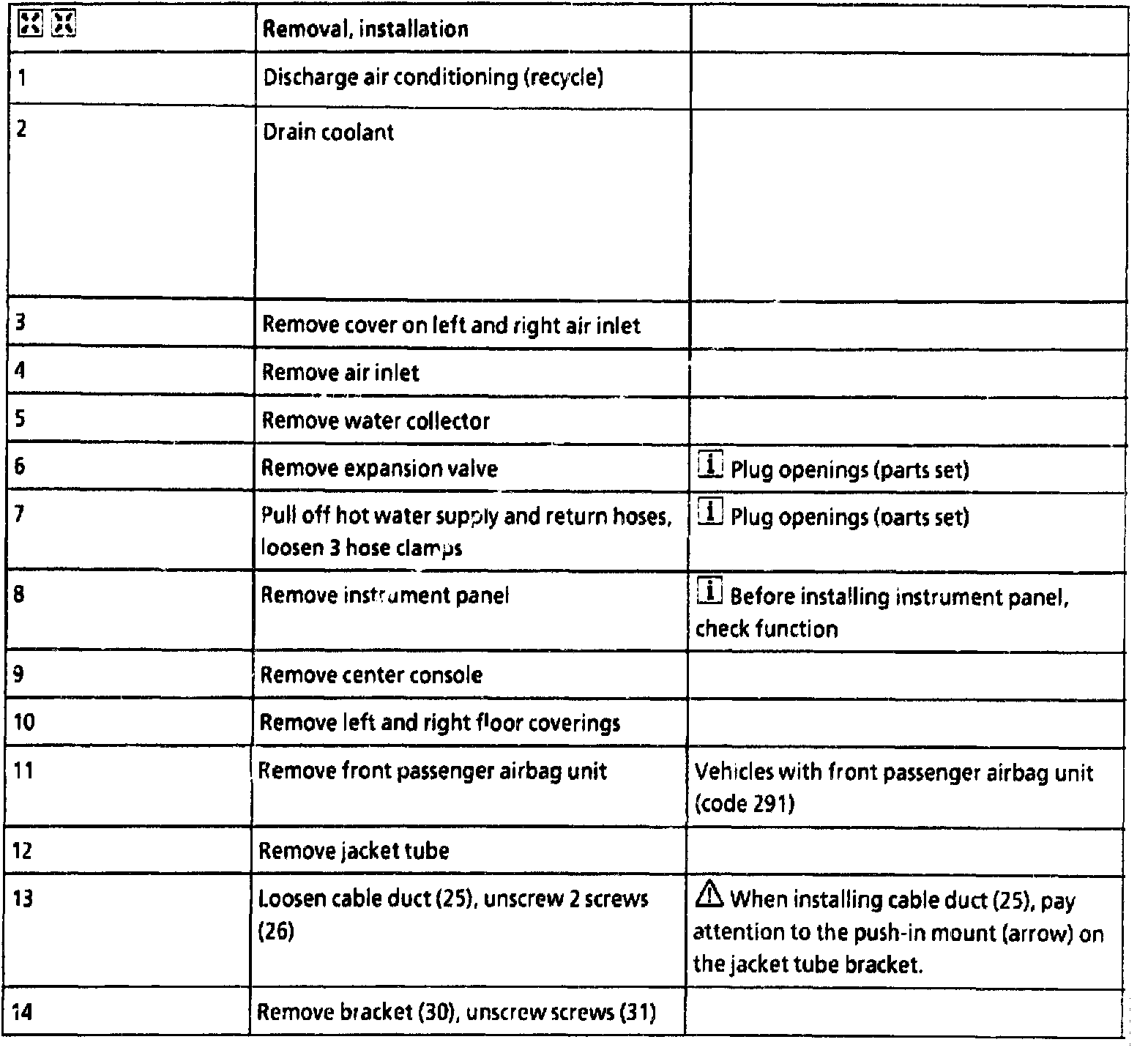

Removal, installation, Part 1 of 2

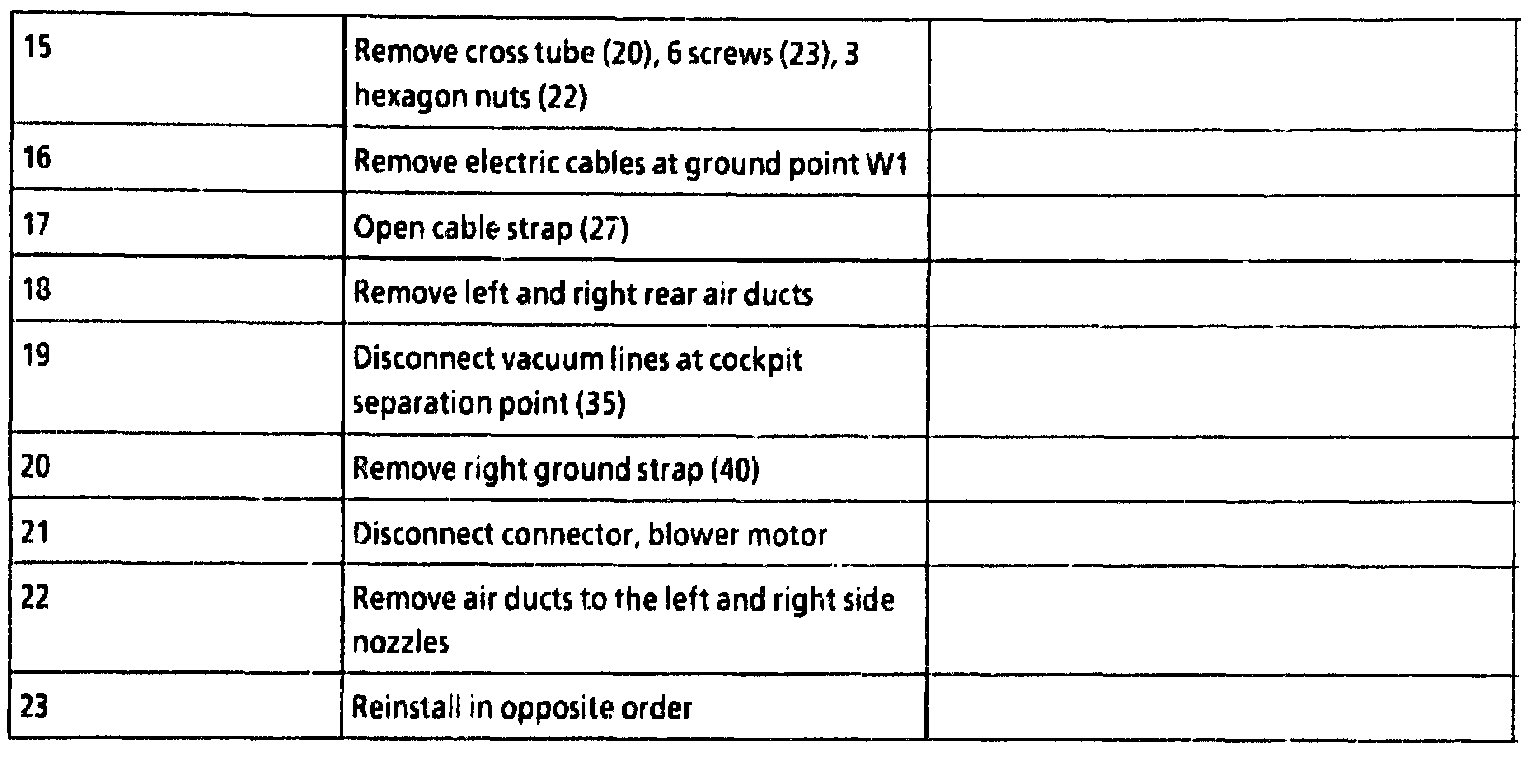

Removal, installation, Part 2 of 2
