Compressor HVAC: Locations

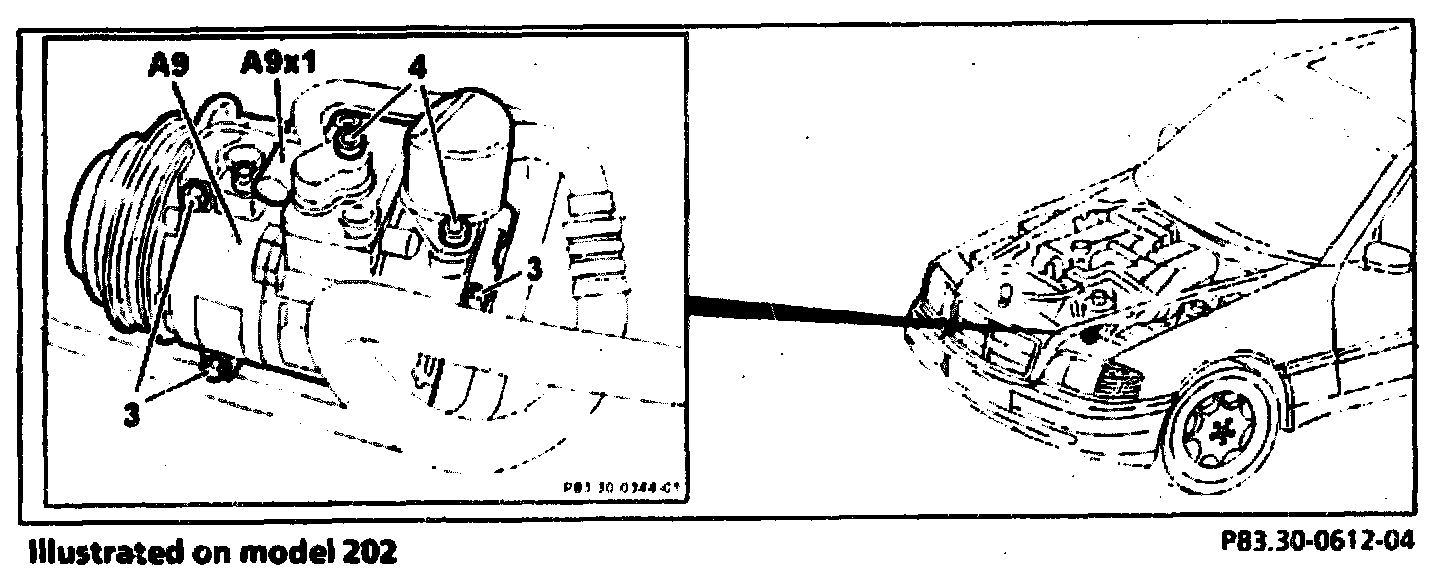

Illustrated On Model 202:
The A/C compressor (A9) is attached to the engine at the front left.
