Center Nozzle

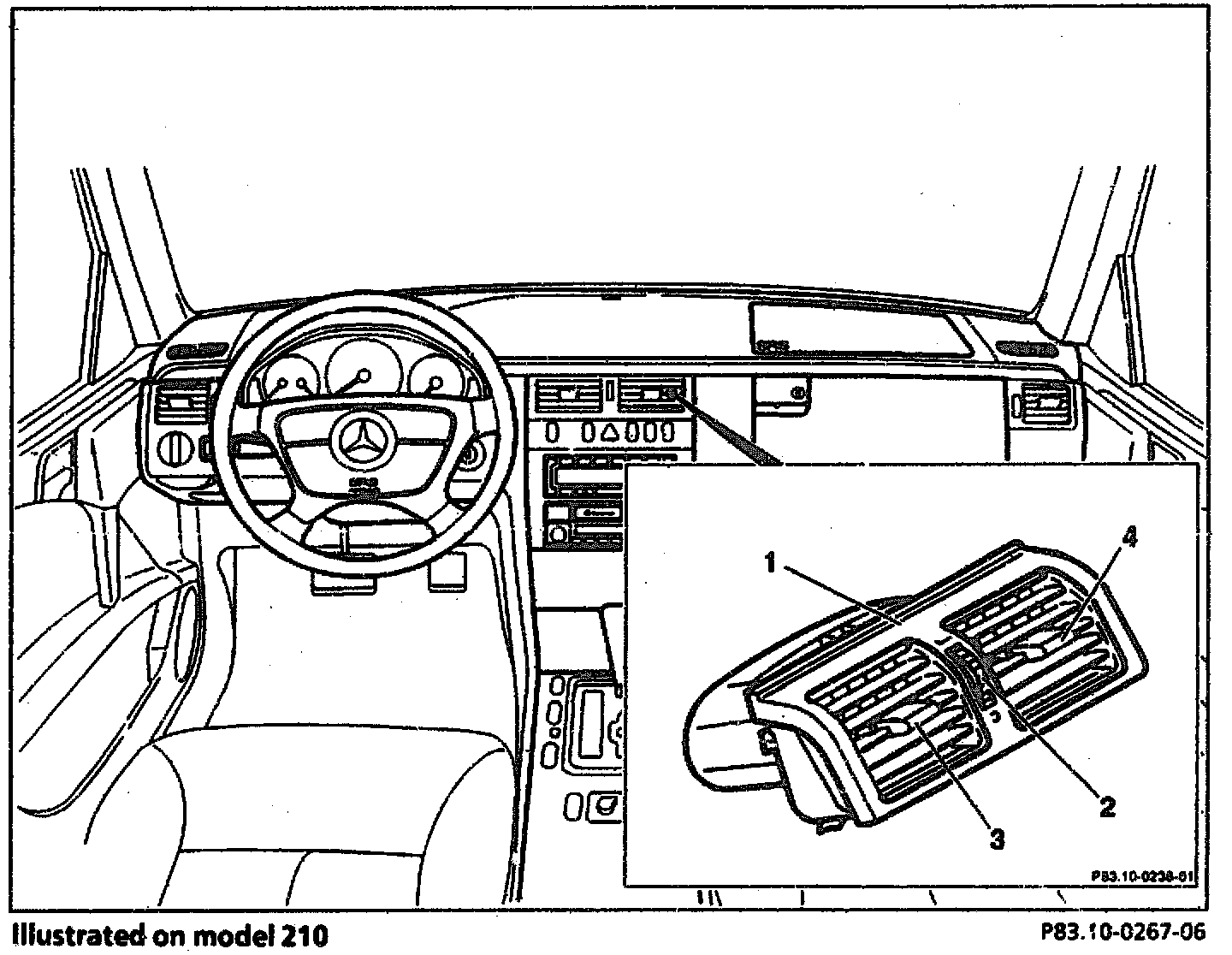

Illustrated On Model 210:

The center nozzle allows the air in the upper front passenger compartment to be guided and distributed as desired.

The center nozzle (1) can be partially opened and closed with the adjustment wheel (2).

The direction of the air can be adjusted as desired upward, downward to the left, right or to the middle with two separately adjustable louvers (3, 4).

On vehicles equipped with automatic heater (HEAT) fresh air exits from the center nozzle (1), on vehicles with air conditioning (Tempmatic) and automatic air conditioning (Auto A/C) blended air exits from the center nozzle (1).
