Air Door Vacuum Solenoid Valve: Locations




Component Identification:

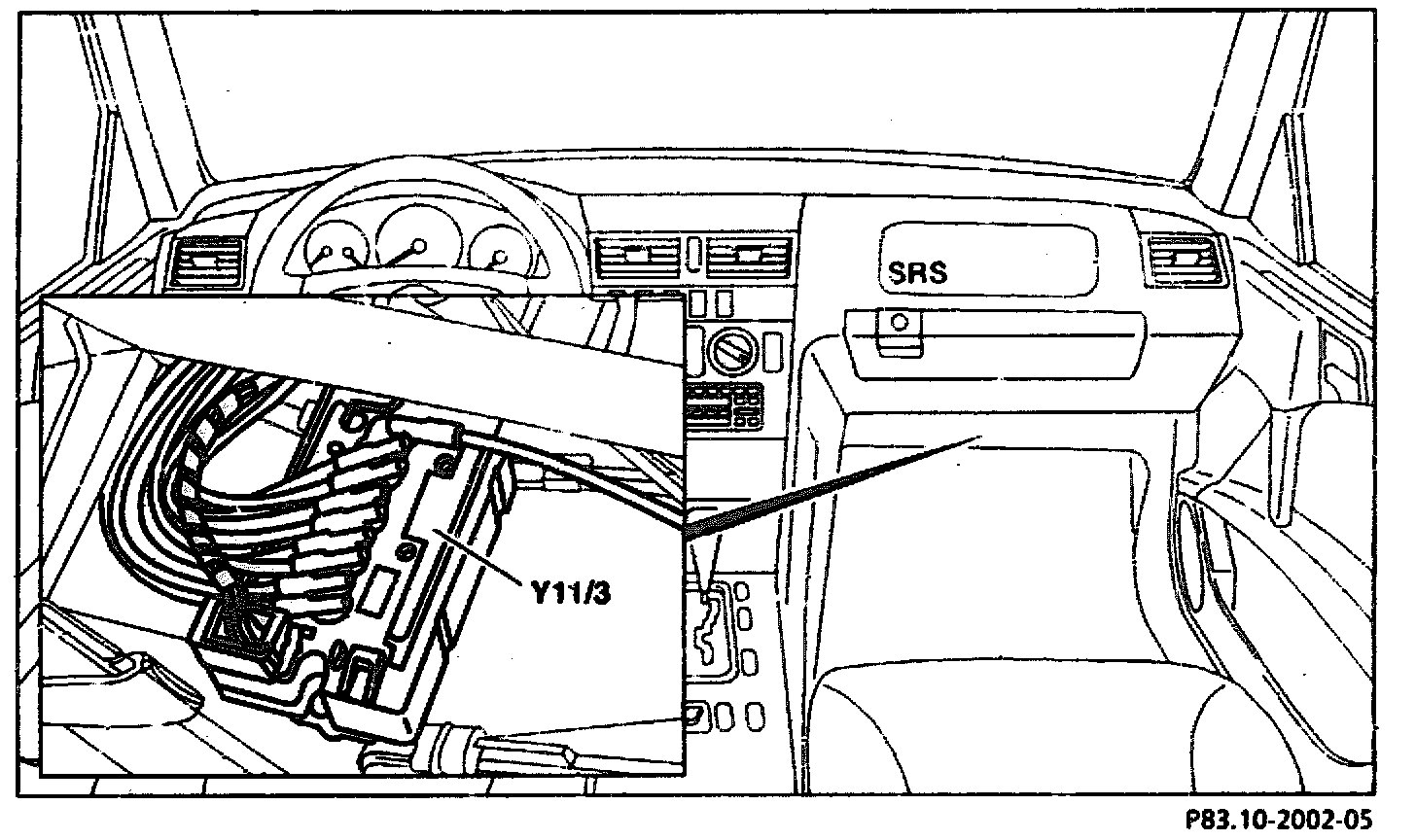

The switchover valve block (Y11/3) is located behind the glove compartment.
