Vacuum Element For Diverter Flap
Vacuum Element For Diverter Flap

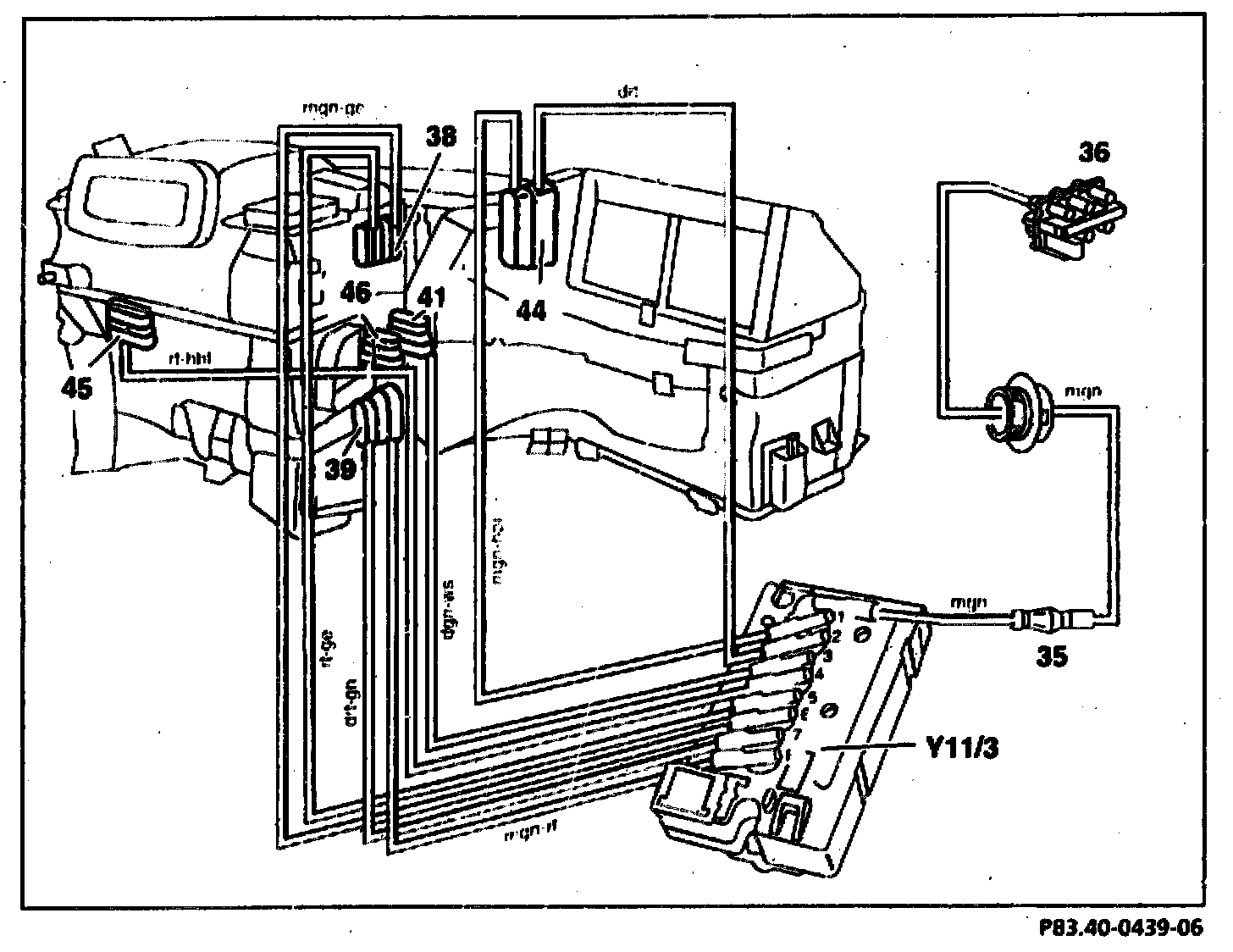

Component Identification:
The diverter flap vacuum element (41) is located on the A/C housing.
