Vacuum Element For Blend Flap
Vacuum Element For Blend Flap

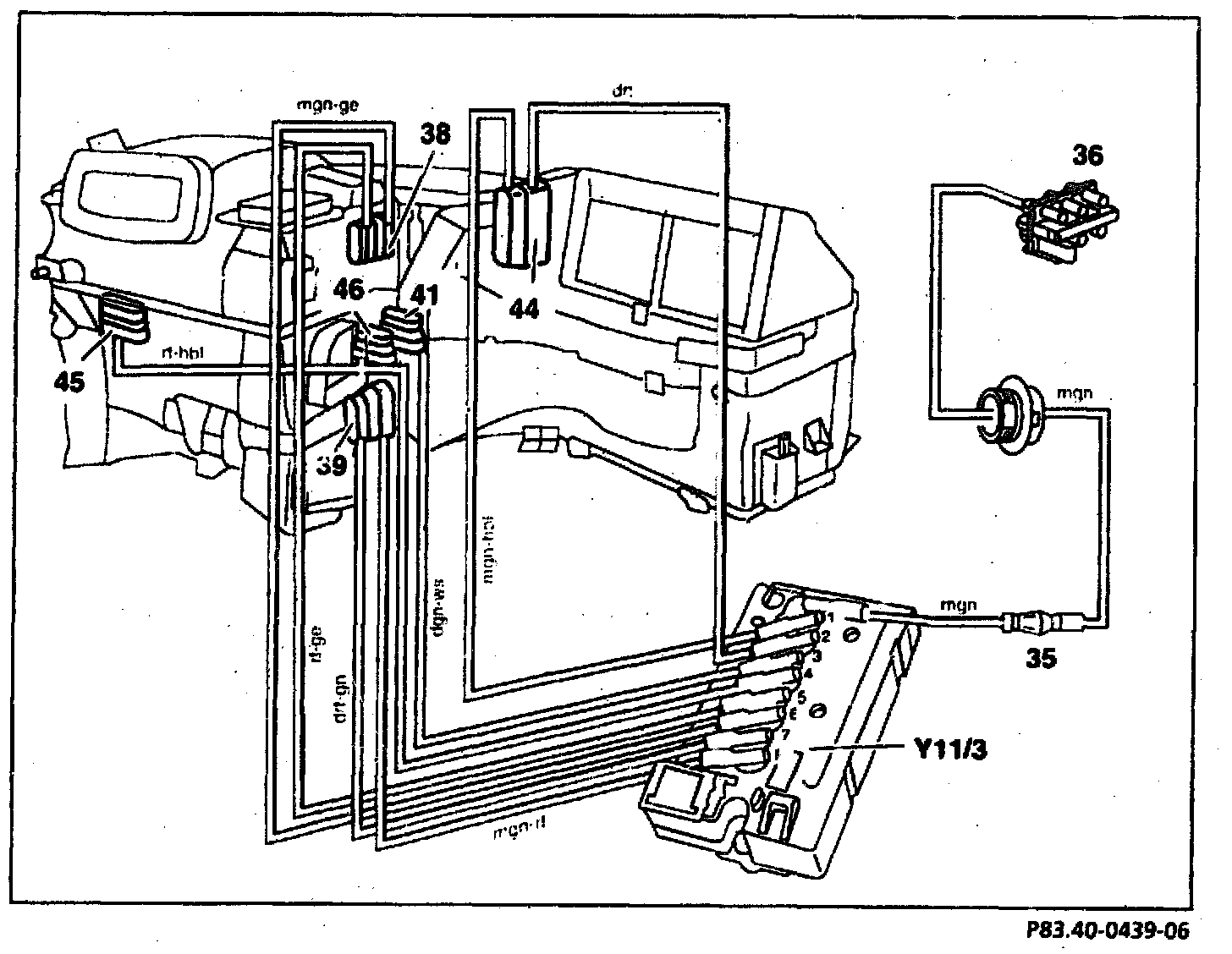

Component Identification:
The blend flap vacuum elements (45, 46) are located on the A/C housing.
