Vacuum Element For Recirculated Air Flap



The fresh/recirculated air flap vacuum element serves for switching over from fresh air to recirculated air.

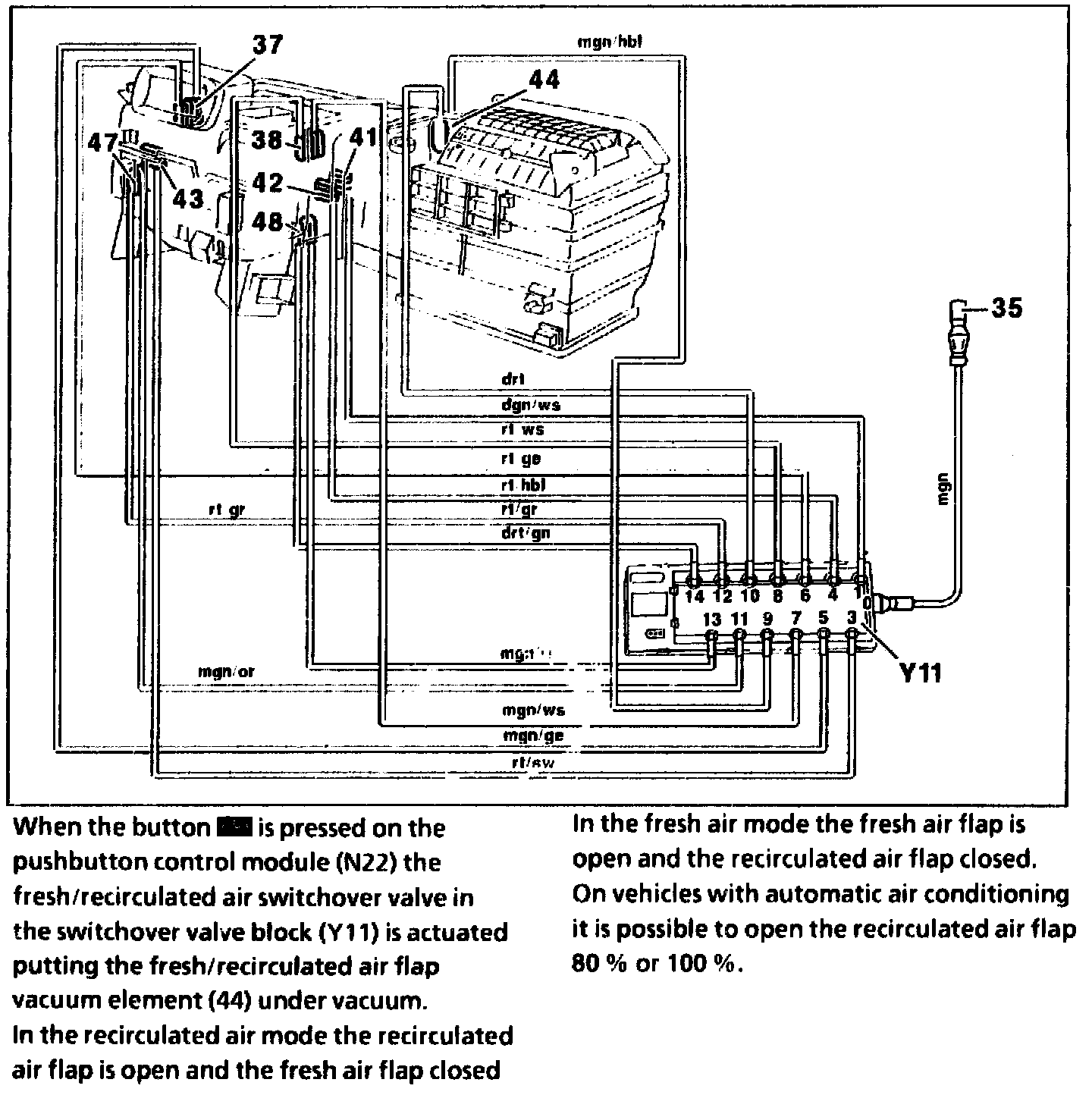

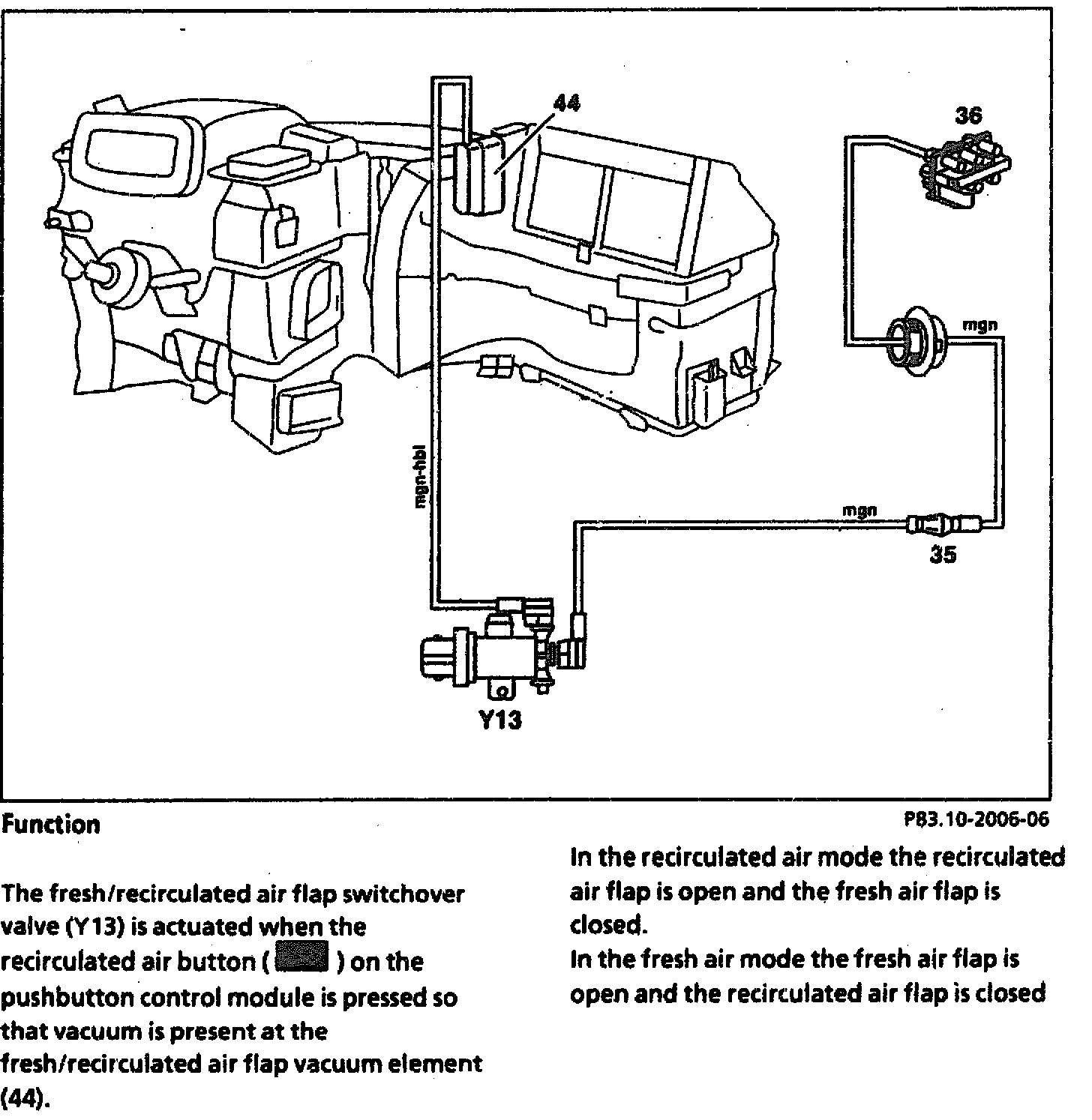

Function, Model 170:

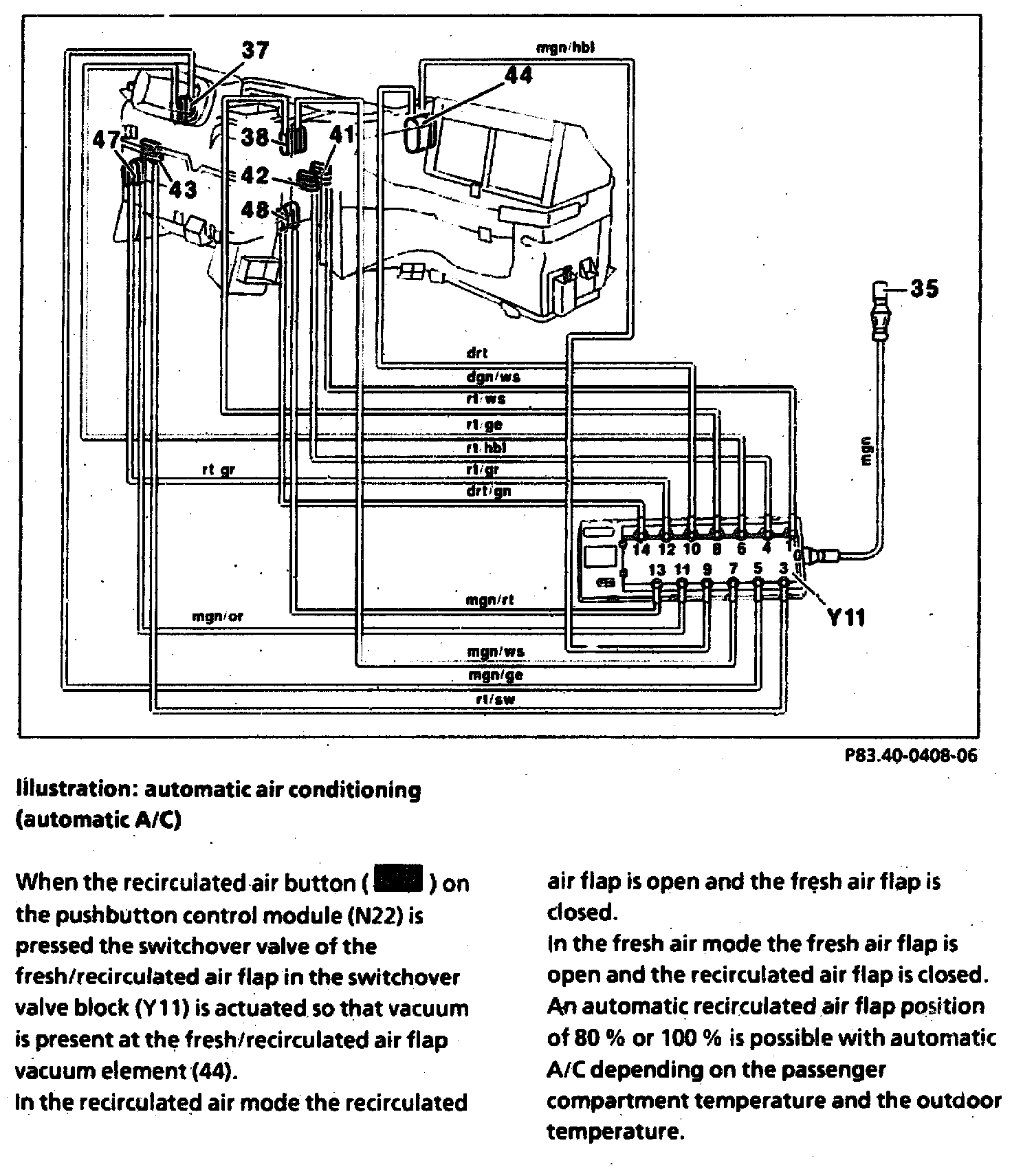

Function, Model 202:





Function, Model 208:





Function, Model 210:
