Idler Pulley: Service and Repair

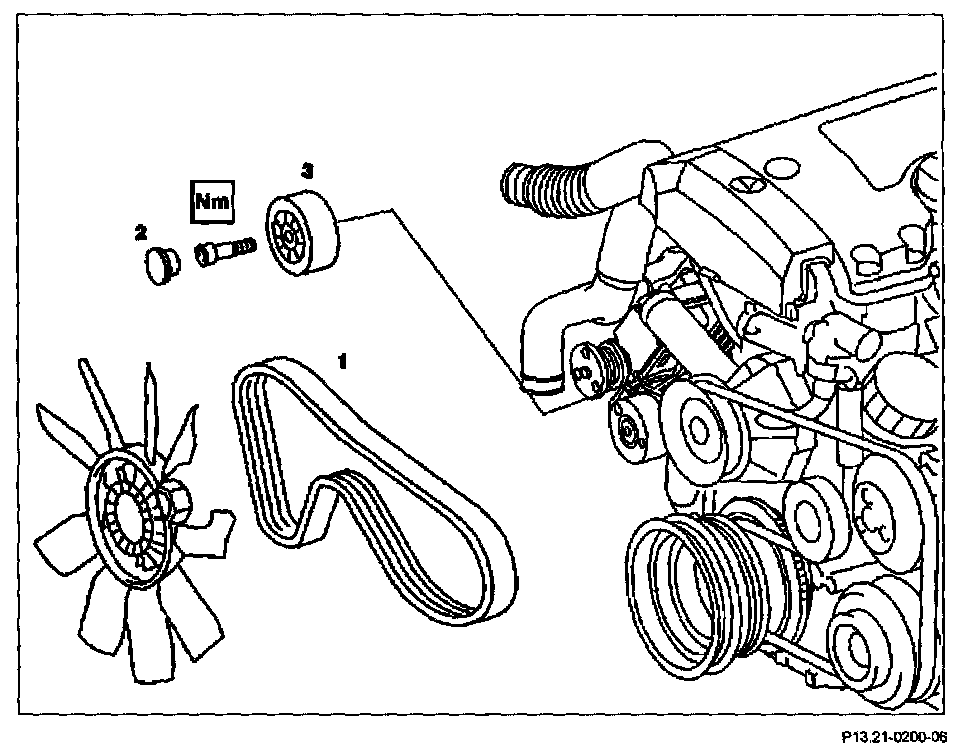

Removing, Installing Compressor Guide Pulley







Work instructions
1 Remove Poly V-belt of compressor
2 Pull off Dust cap
3 Guide pulley
- unbolt, pull off

Guide pulley to compressor support M8 - 30 N.m
