Heater Control Valve: Service and Repair



Removing and Installing Duovalve

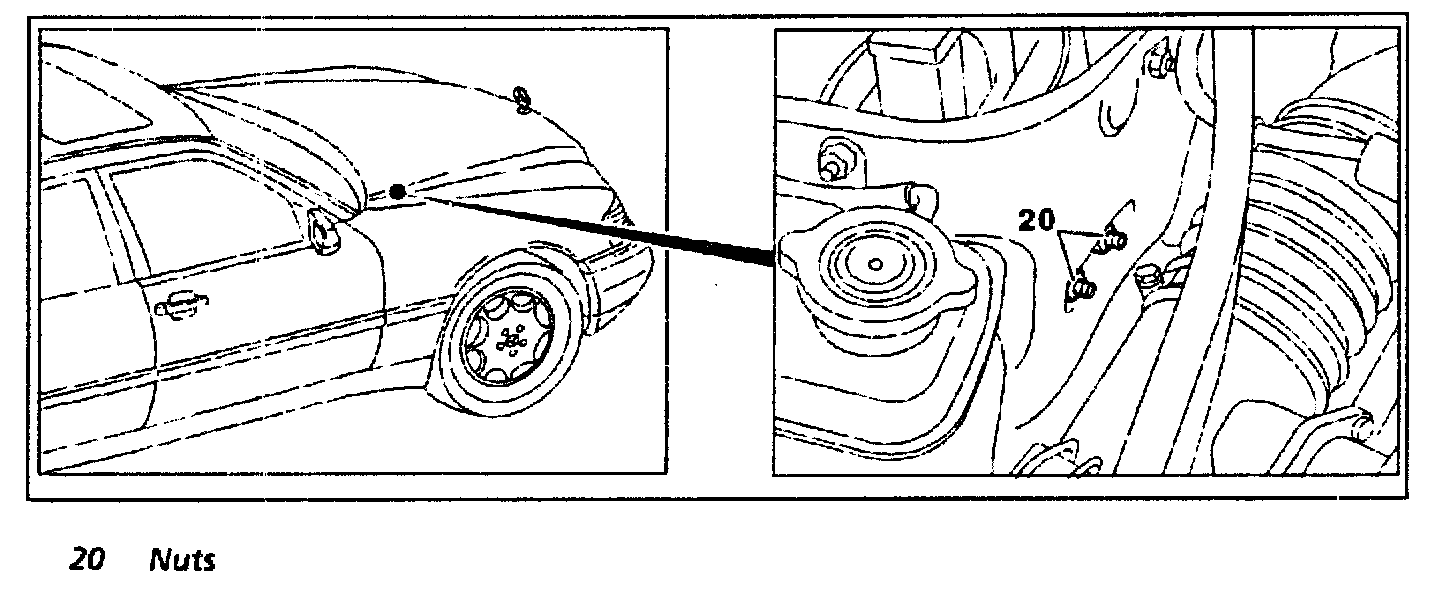

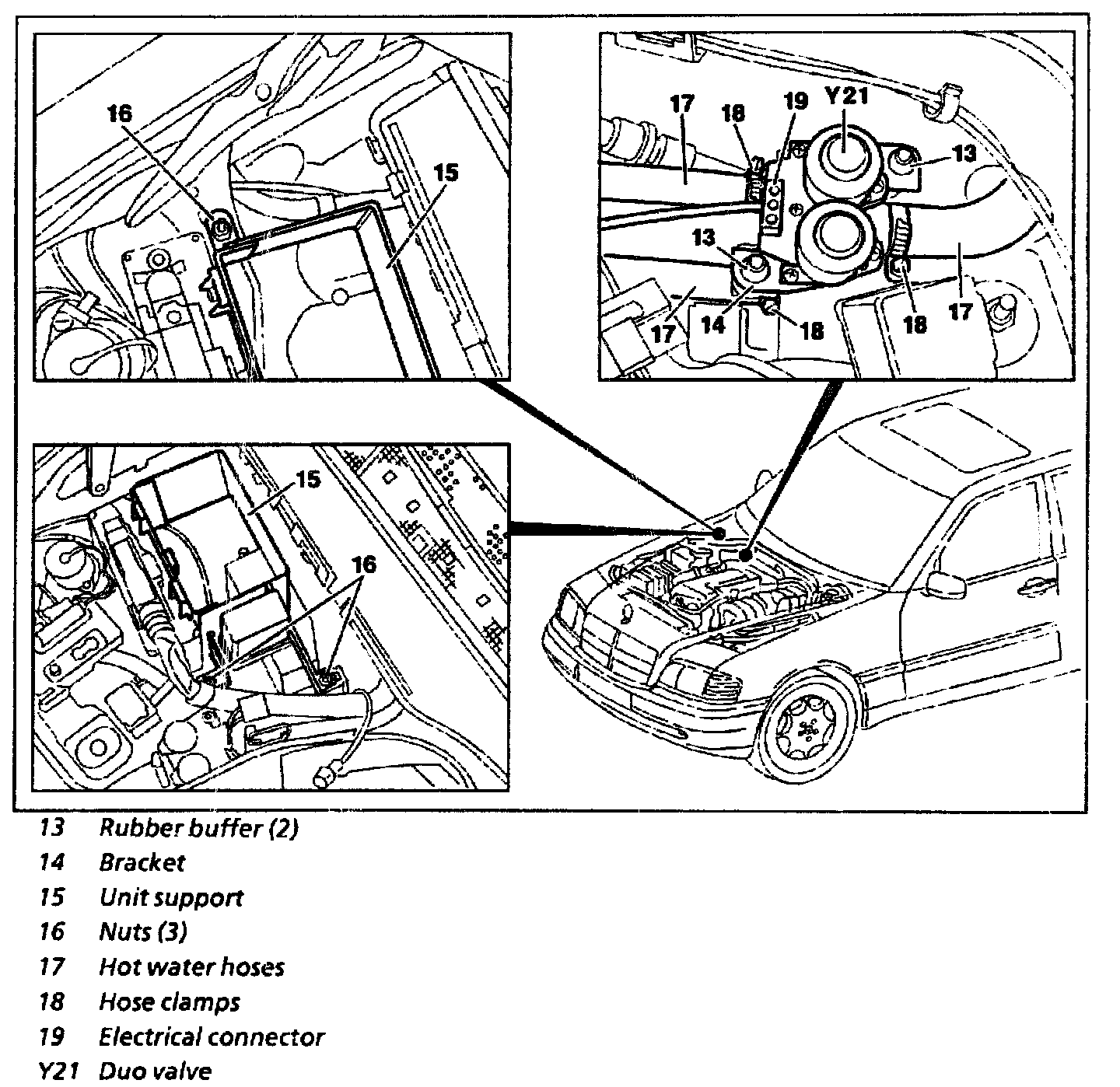

Component Identification

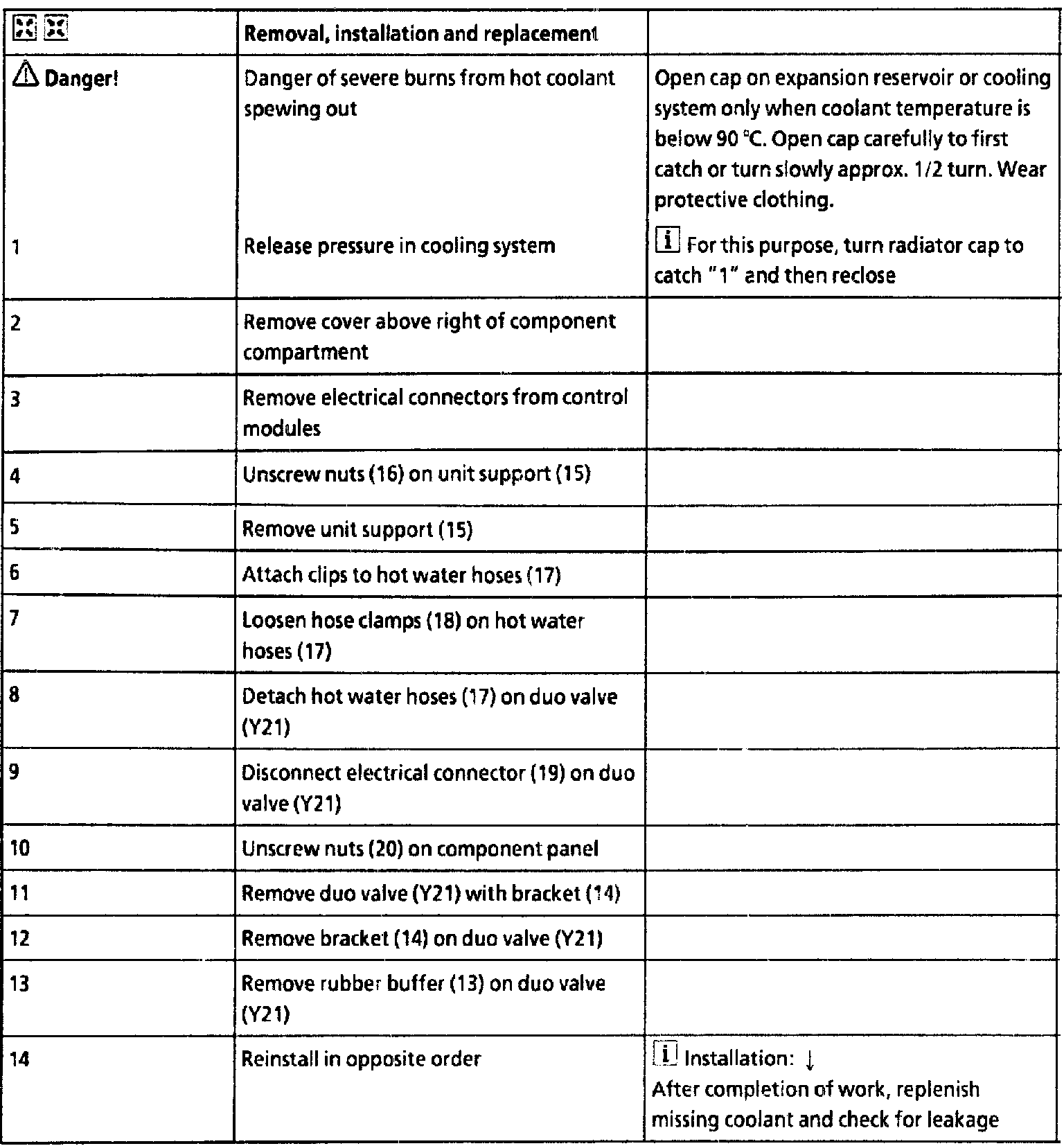

Removal, installation and replacement
