Z6/1 - Ground Solder Splice

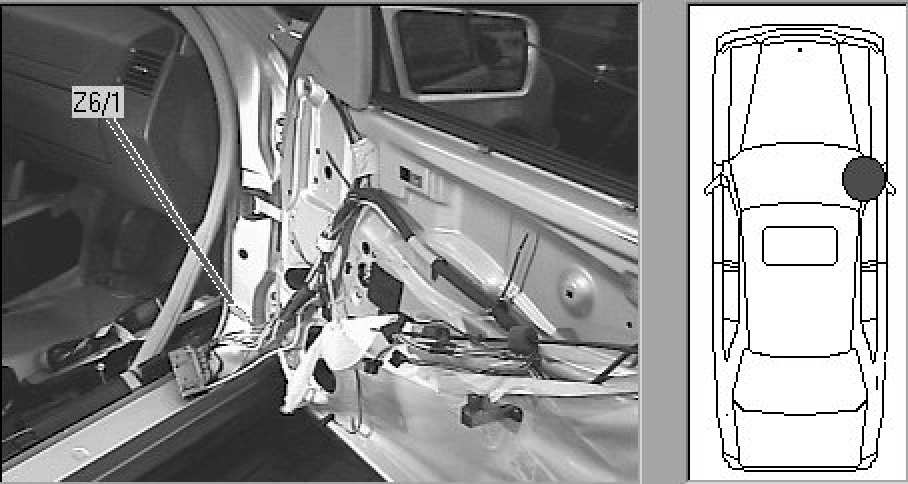

Z6/1 - Ground Solder Splice
Right front door rubber boot (between door and door jamb) (shown with harness pulled from boot)
