B2.9 Trunk (Right)
B2.9 Trunk (Right)

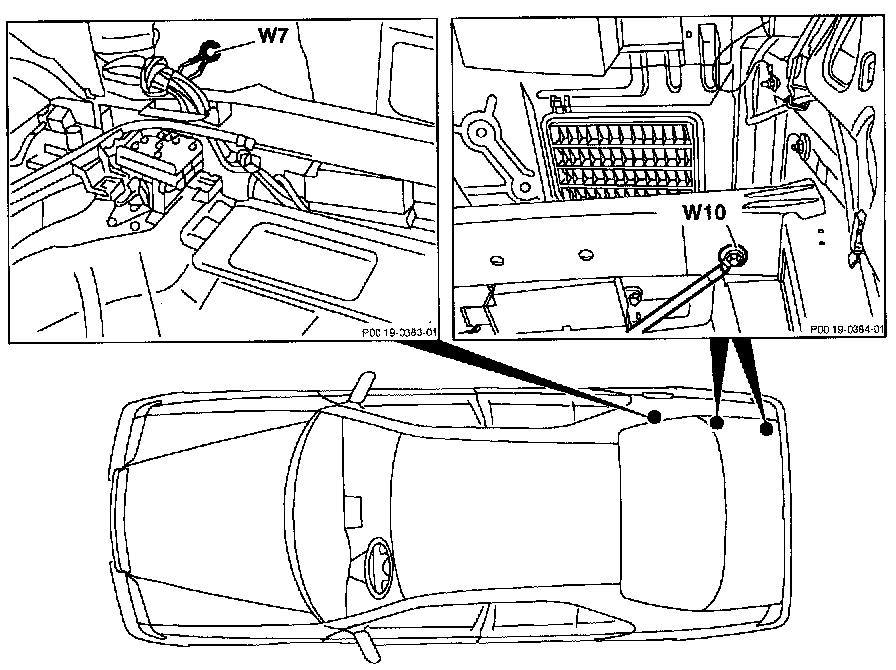

Arrangement and assignment of ground terminals, trunk (right)

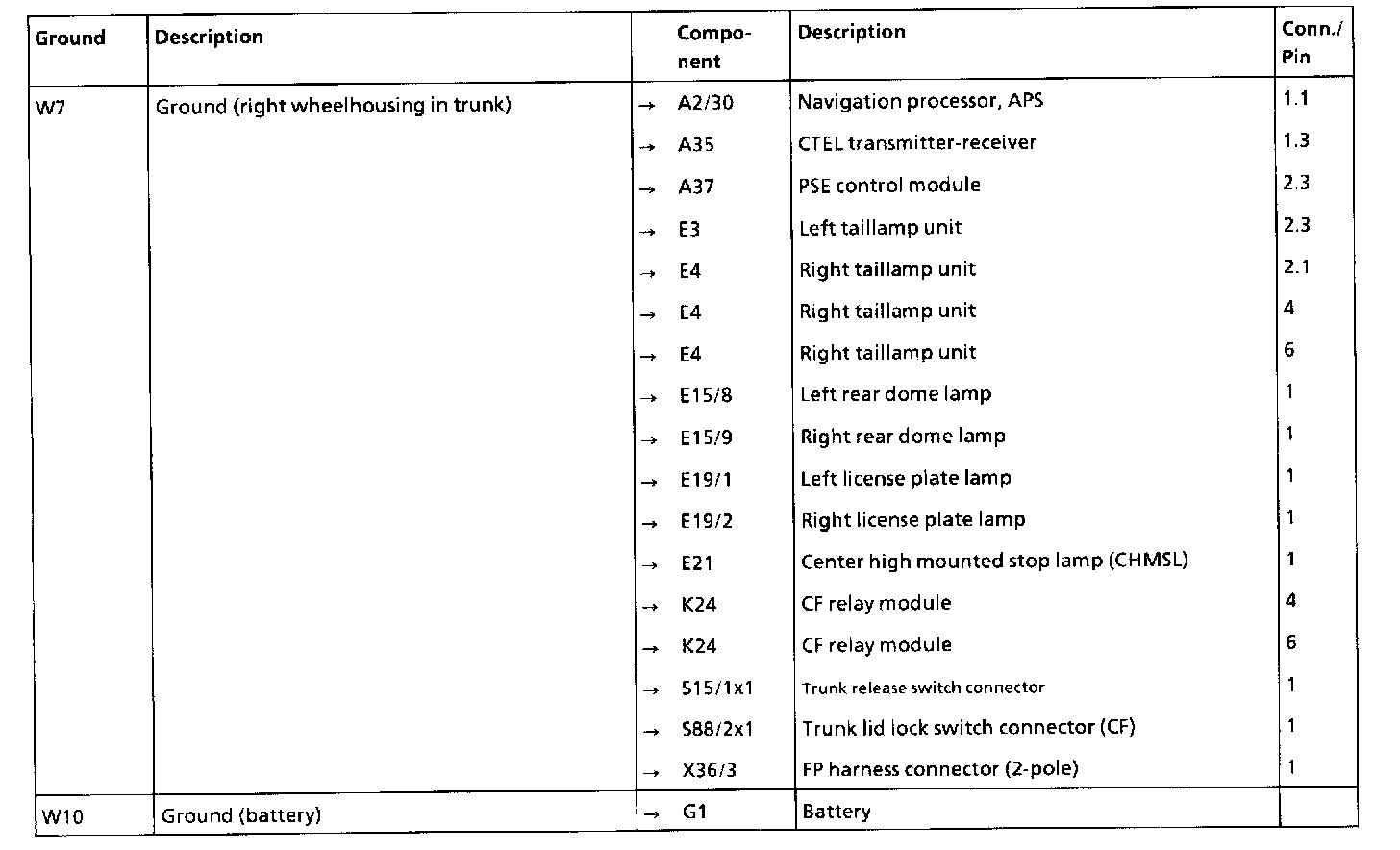

B2.9 Trunk (Right), Ground Locations:
Connector ID
W7 - W10:
