B2.5 Interior Compartment (Right)

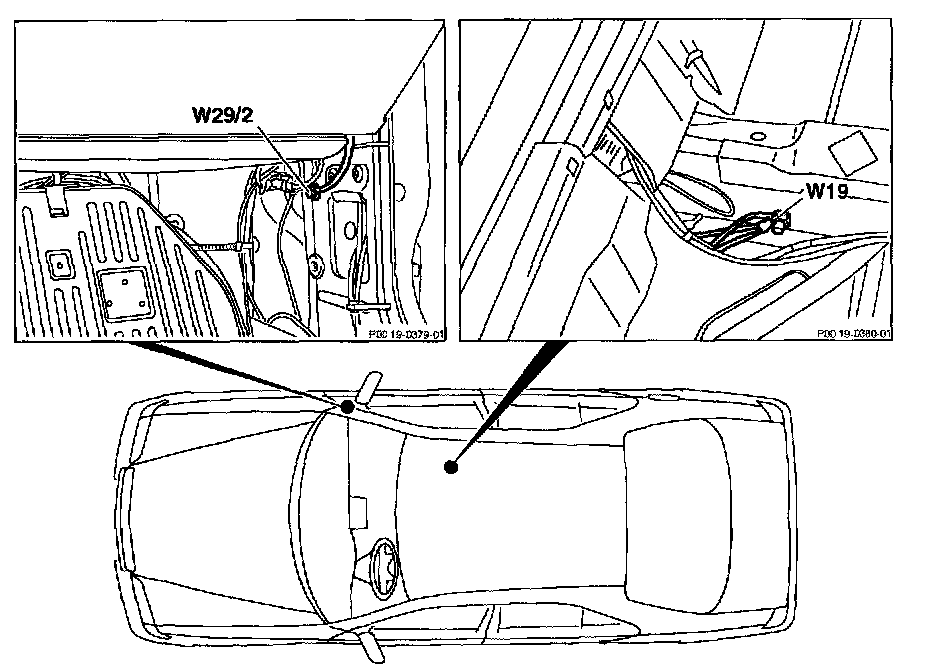

Arrangement and assignment of ground terminals, interior compartment (right)

B2.5 Interior Compartment (Right), Ground Locations:







Connector ID

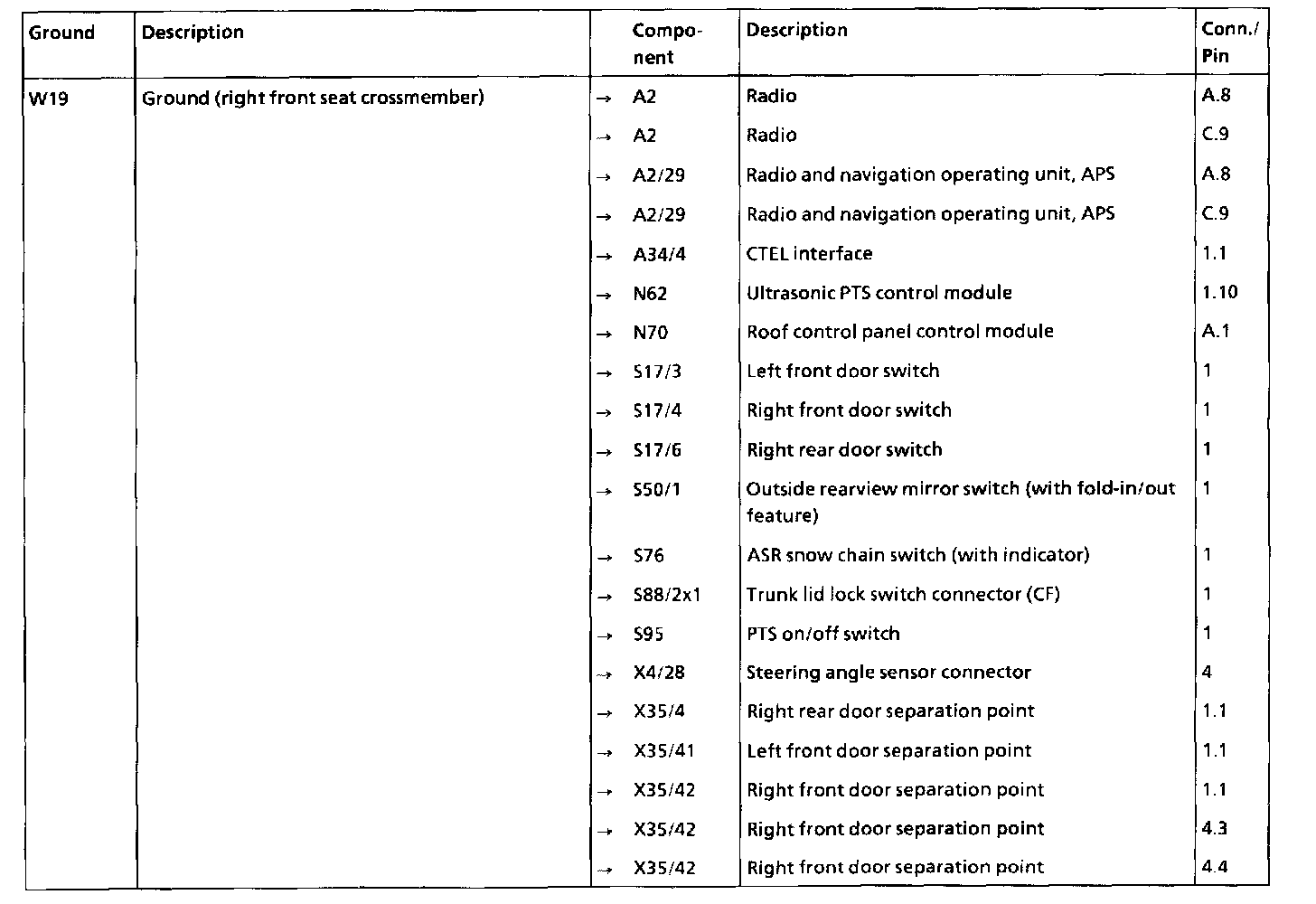

W19:

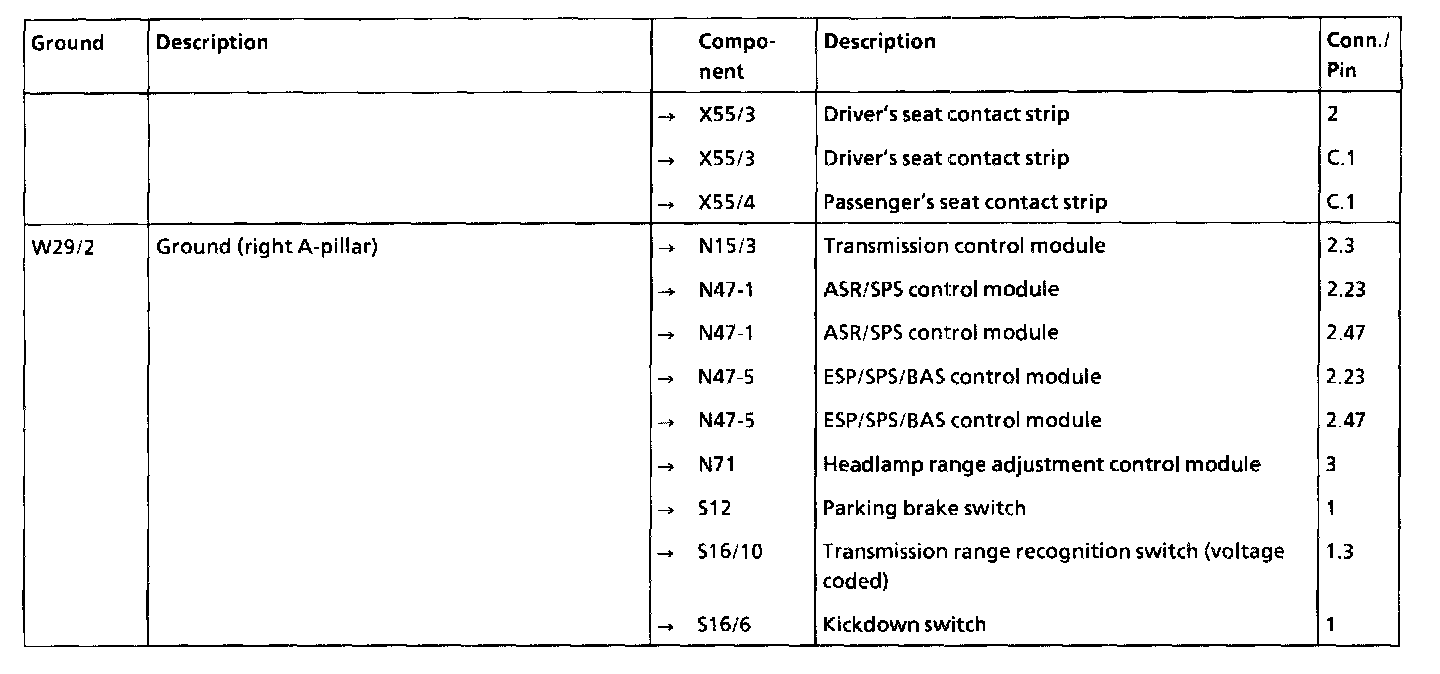

W19 - W29/2:
