B2.3 Interior Compartment (Cockpit)
B2.3 Interior Compartment (Cockpit)
Arrangement and assignment of ground terminals (cockpit)
B2.3 Interior Compartment (Cockpit), Ground Locations:
Connector ID

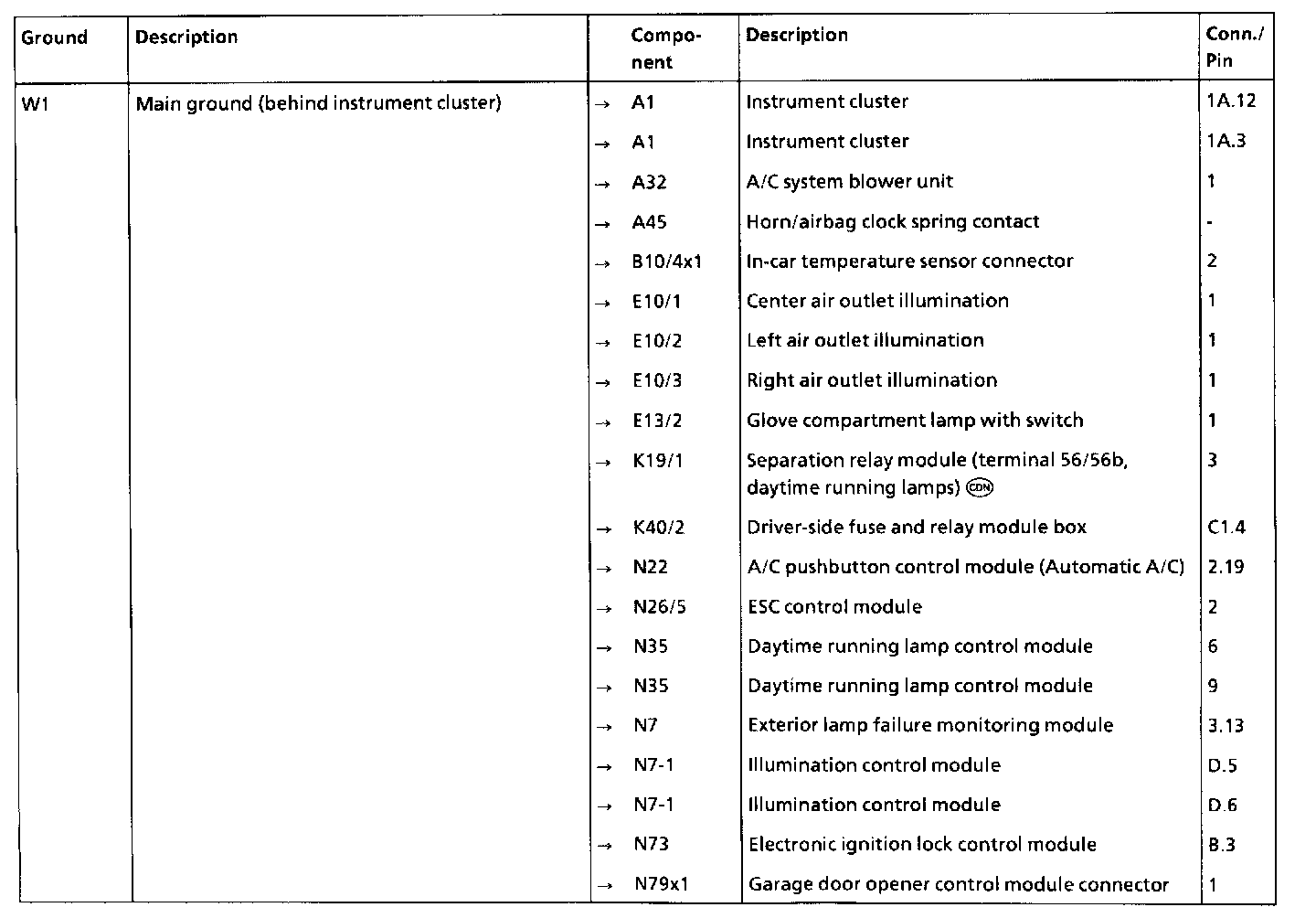

W1:

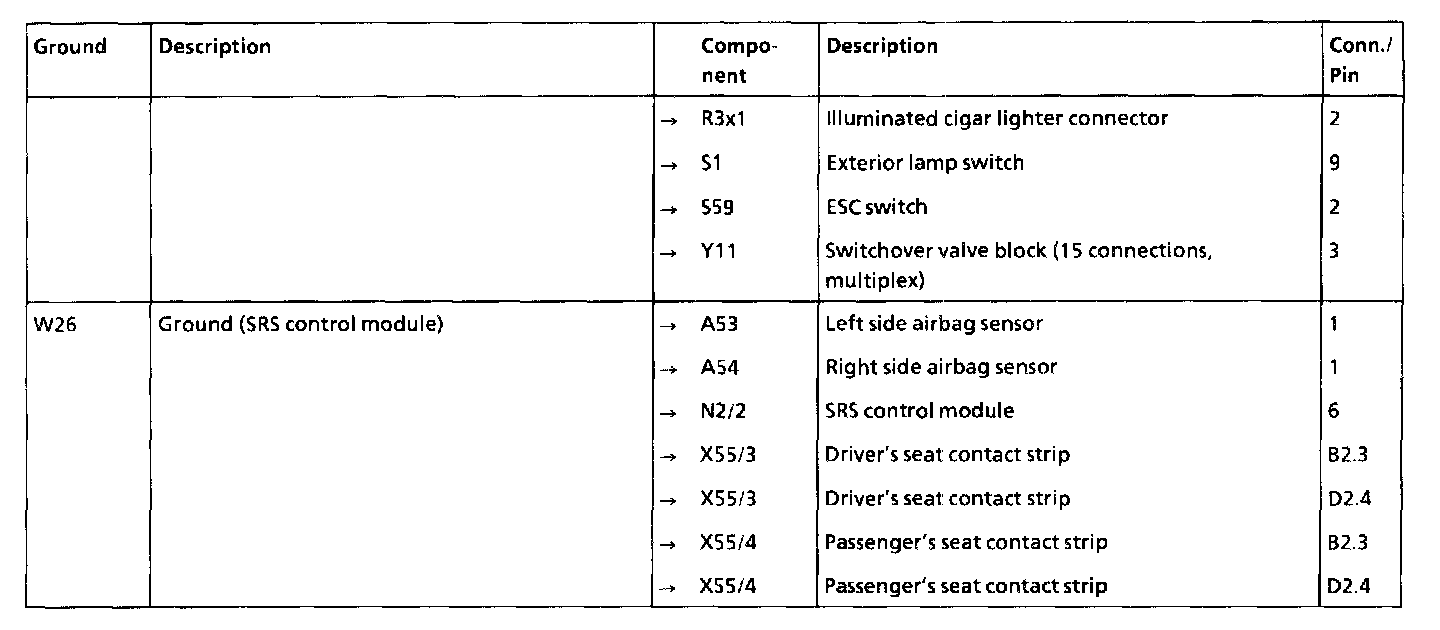

W1 - W26:
