ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WC

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WC
- Engine compartment

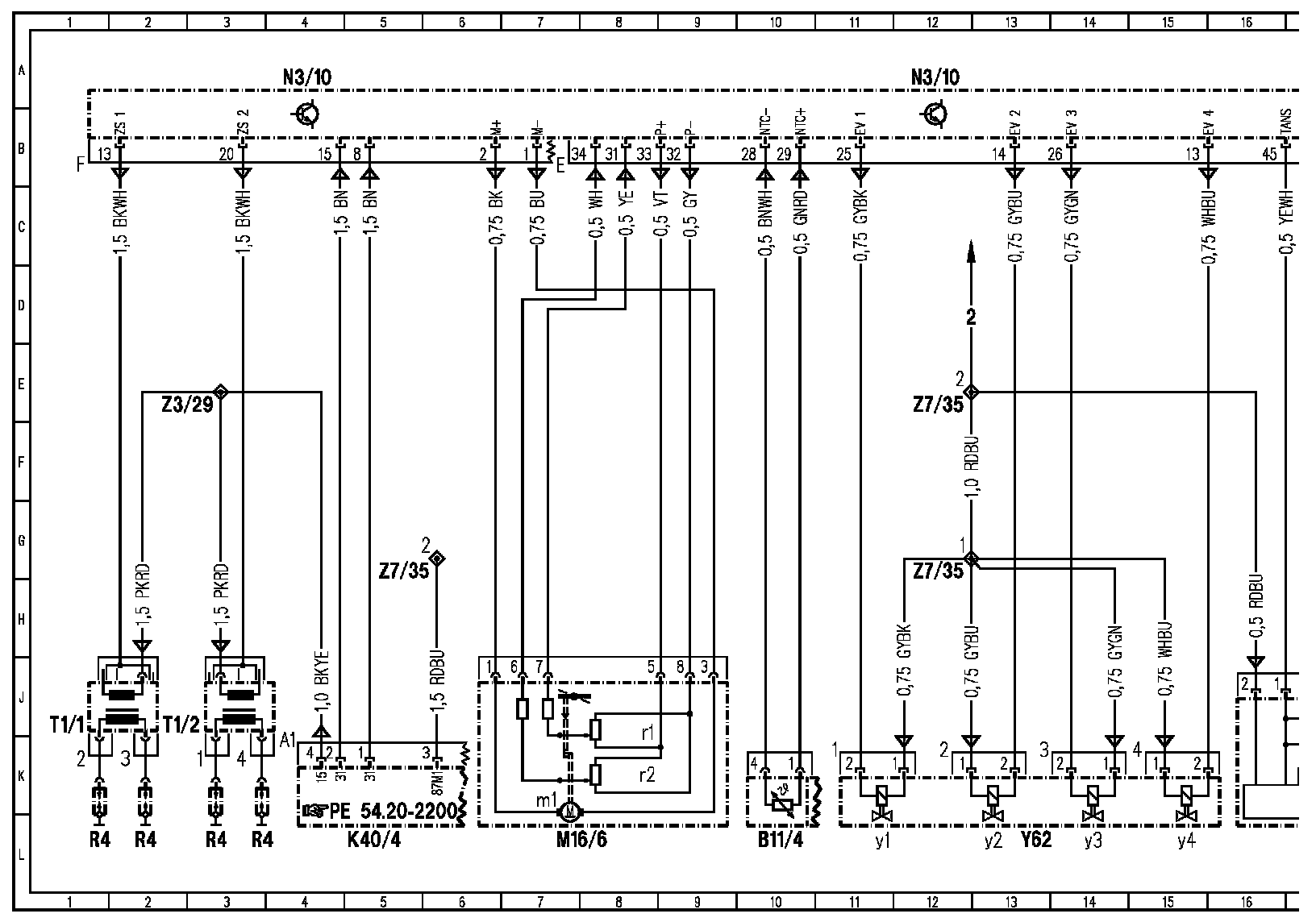

Wiring Diagram, Part 1:

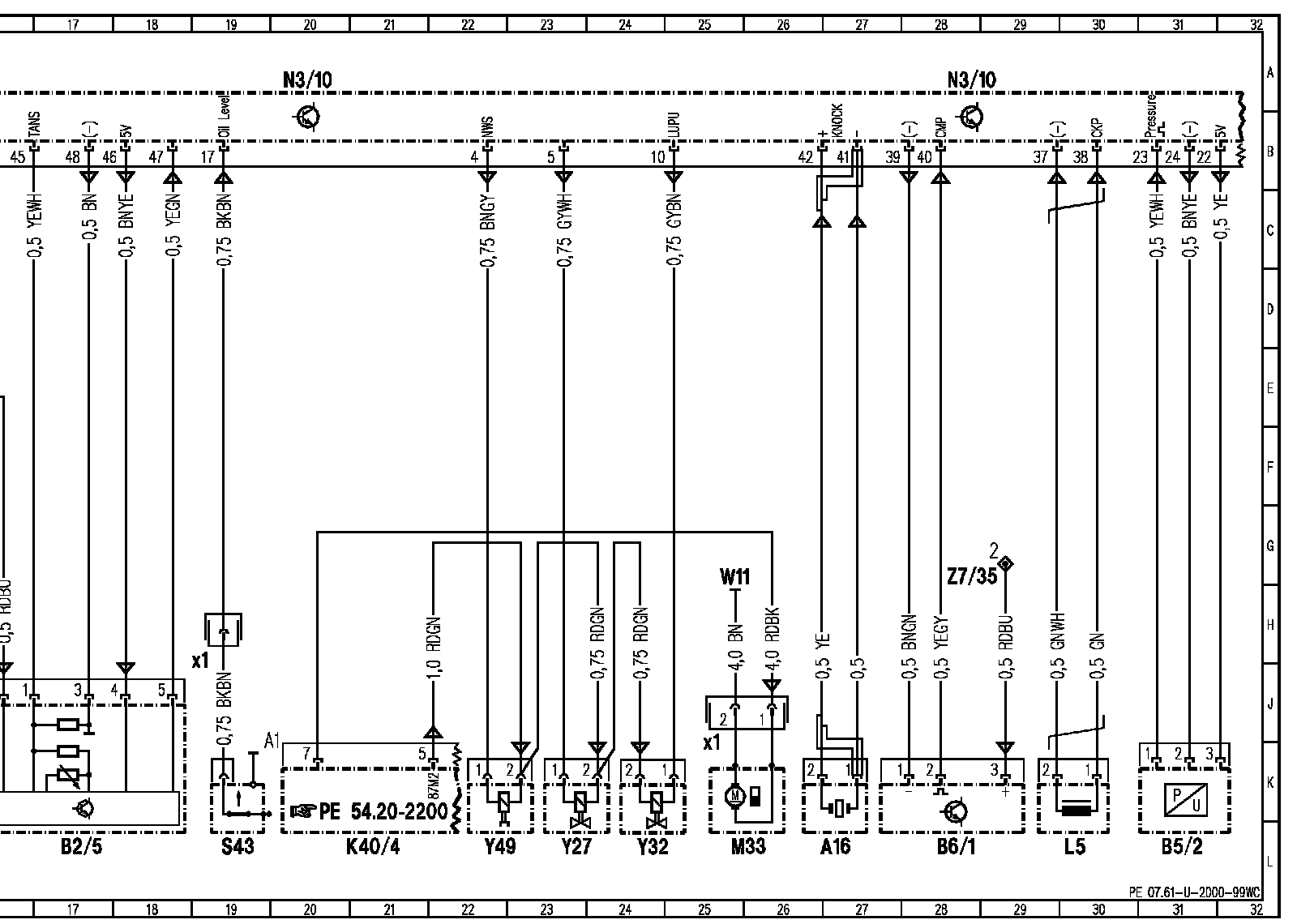

Wiring Diagram, Part 2:

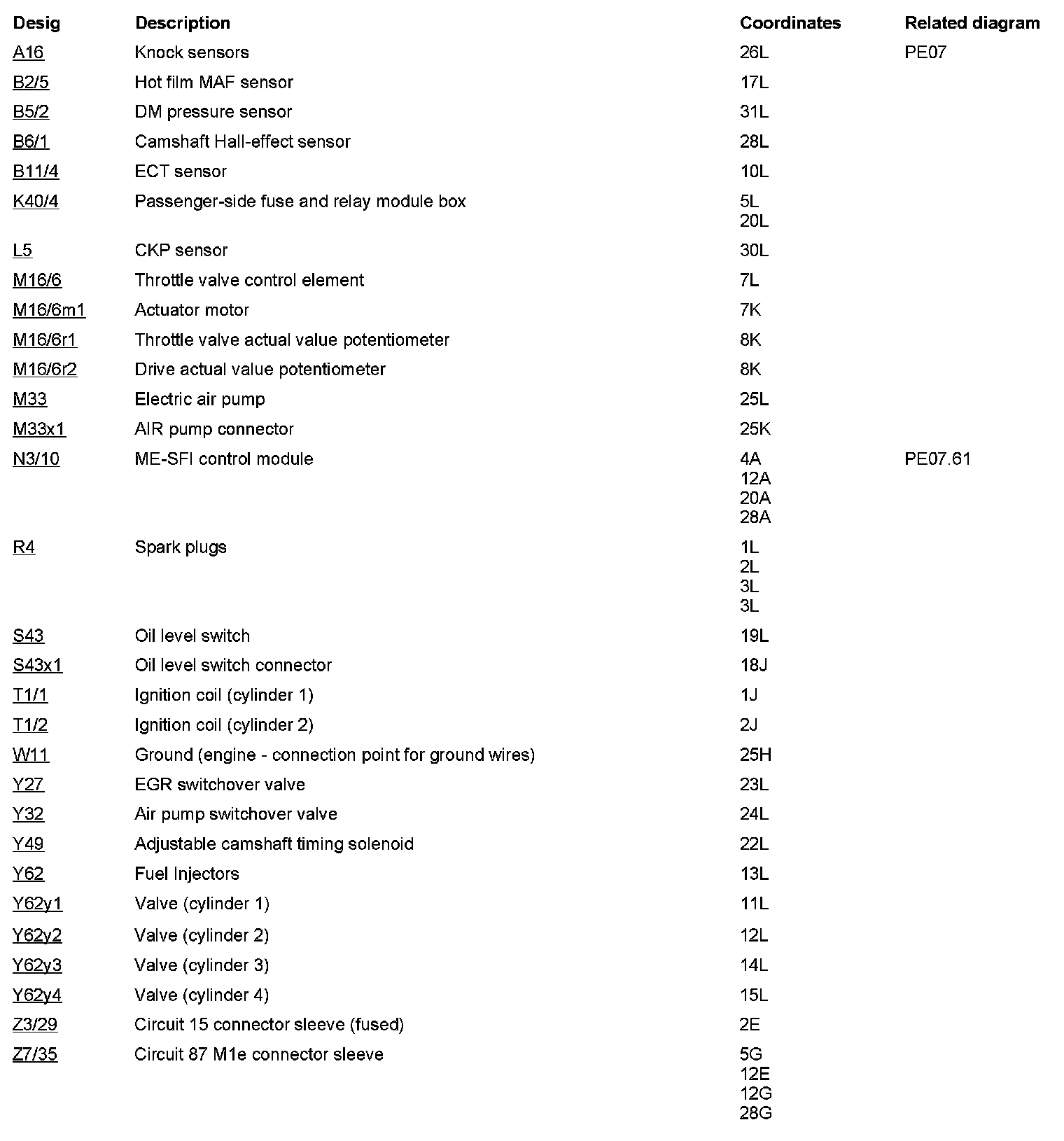

Component Description/Coordinates, A16 To Z7/35:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
