Exterior Lights PE82.10-U-2000L

Exterior Lights PE82.10-U-2000L
- Except CODE (612b) Xenon headlamp unit
- without turn signal/hazard warning lamps

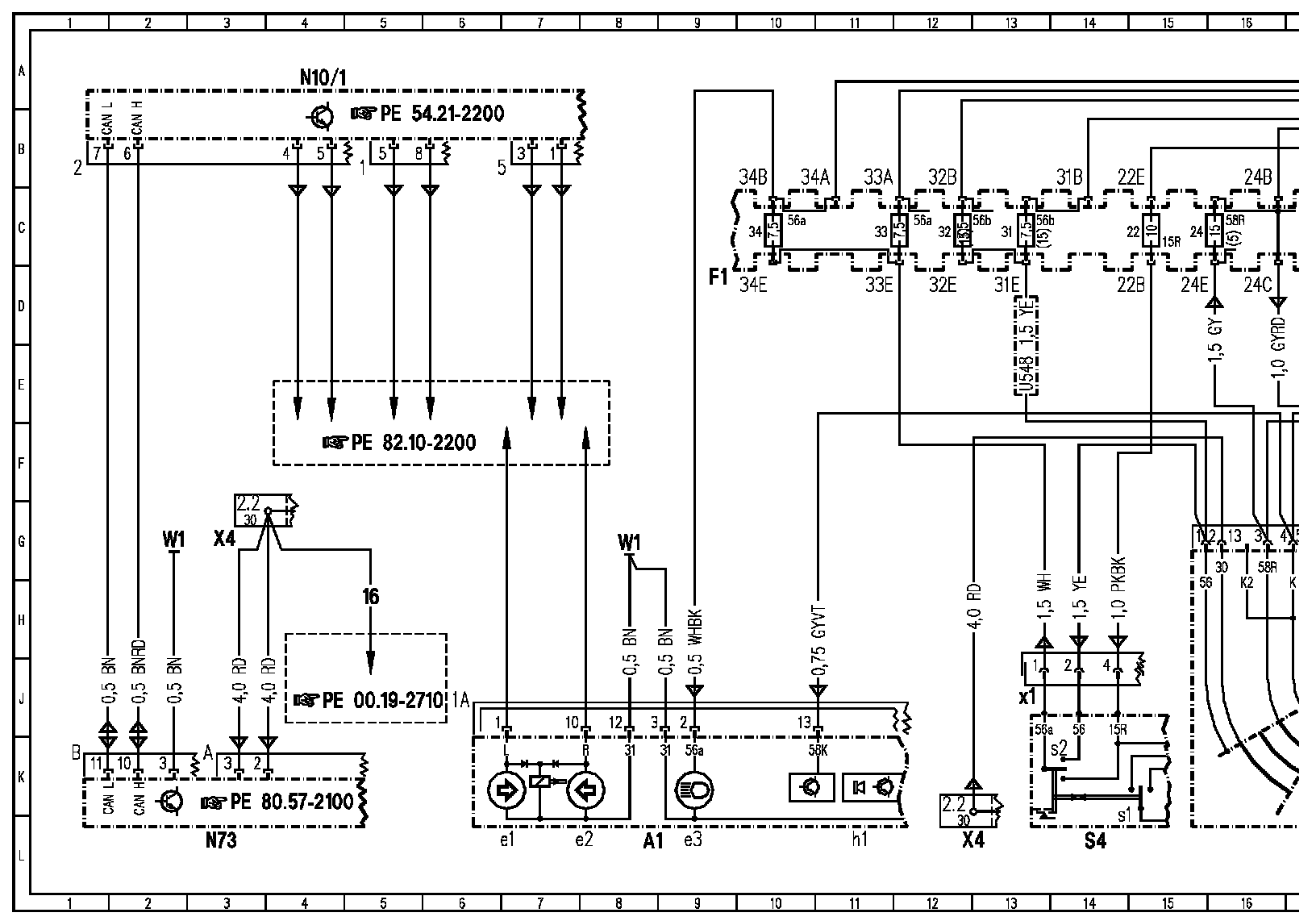

Wiring Diagram, Part 1:

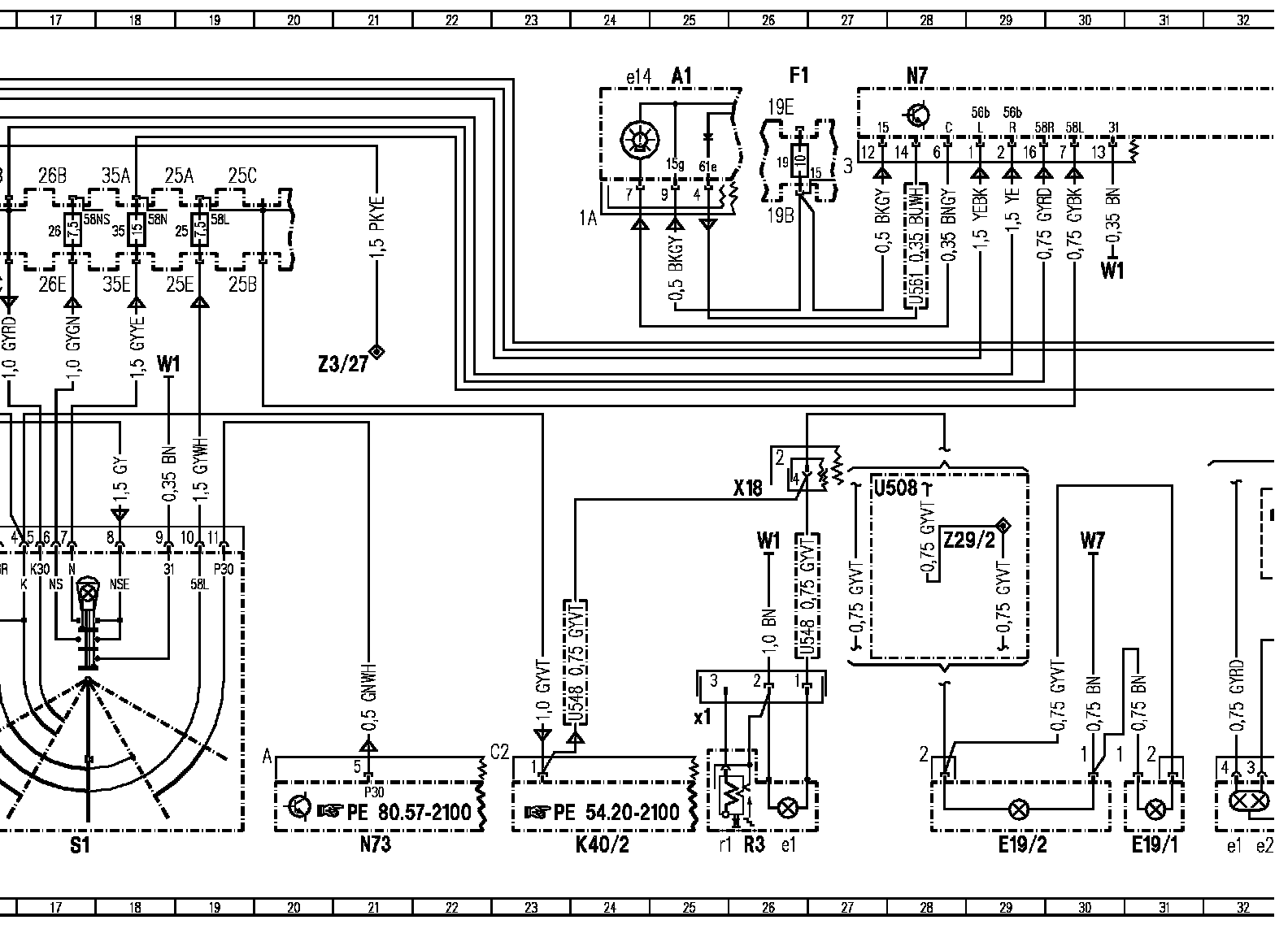

Wiring Diagram, Part 2:

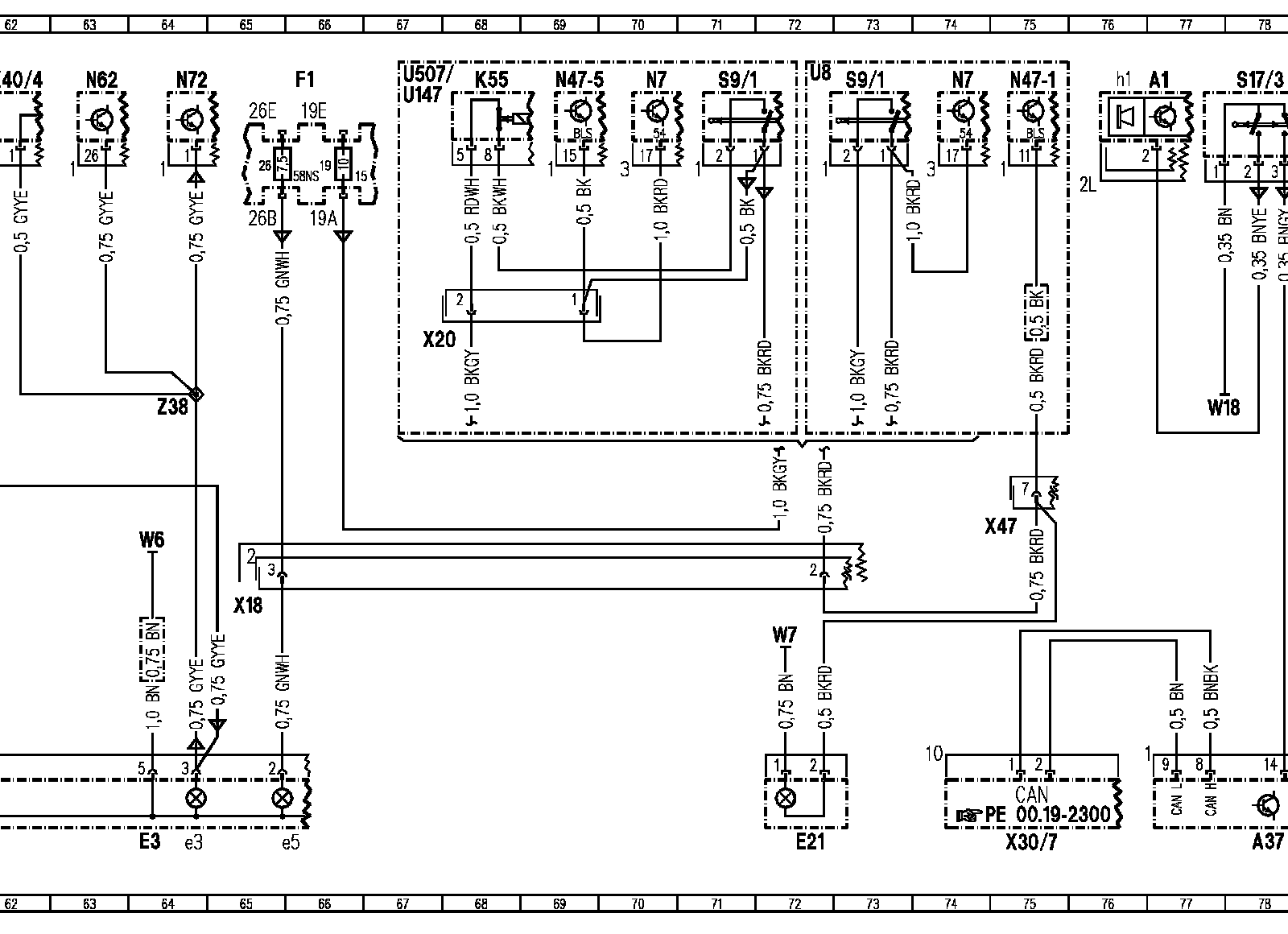

Wiring Diagram, Part 3:

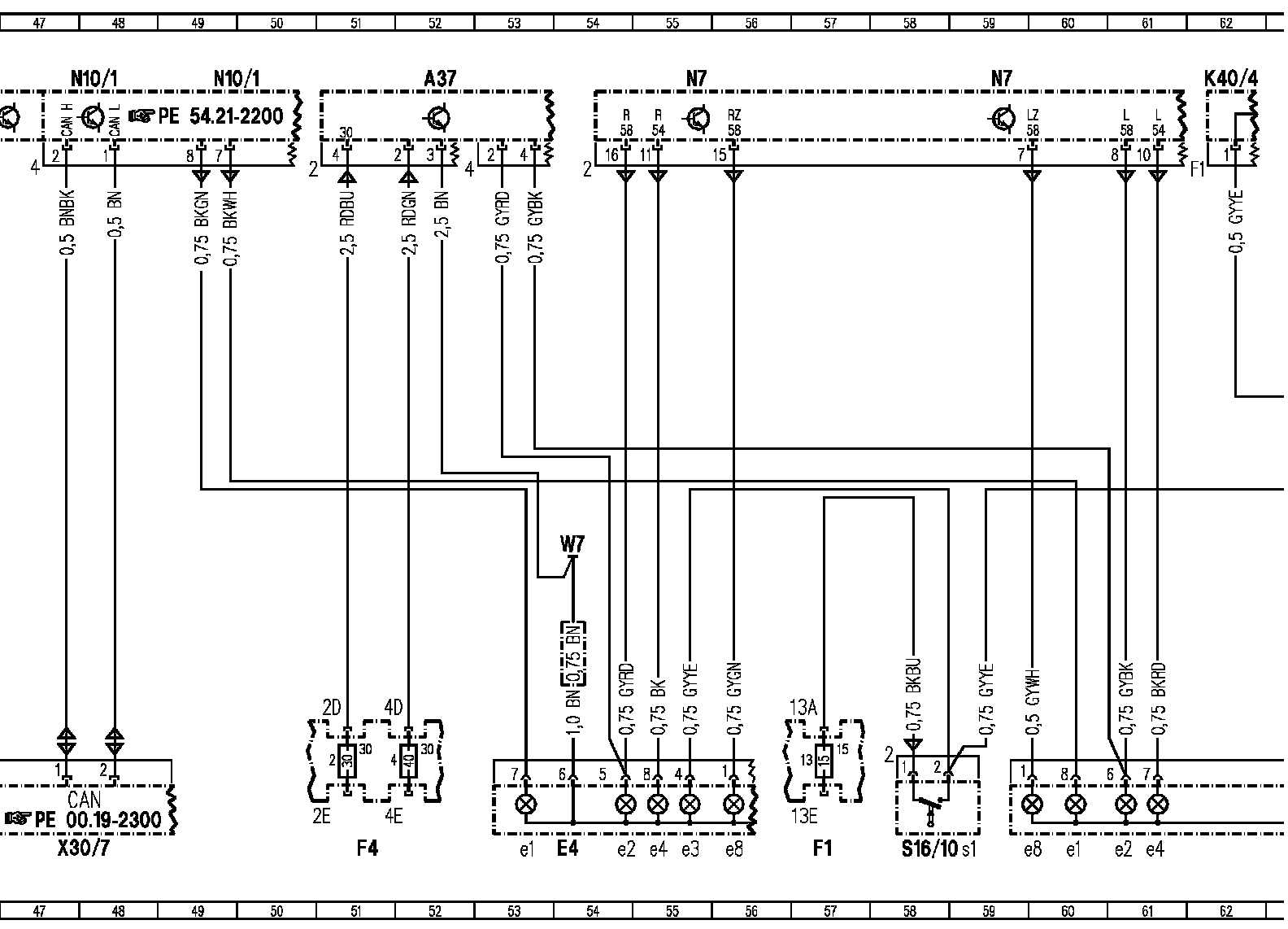

Wiring Diagram, Part 4:

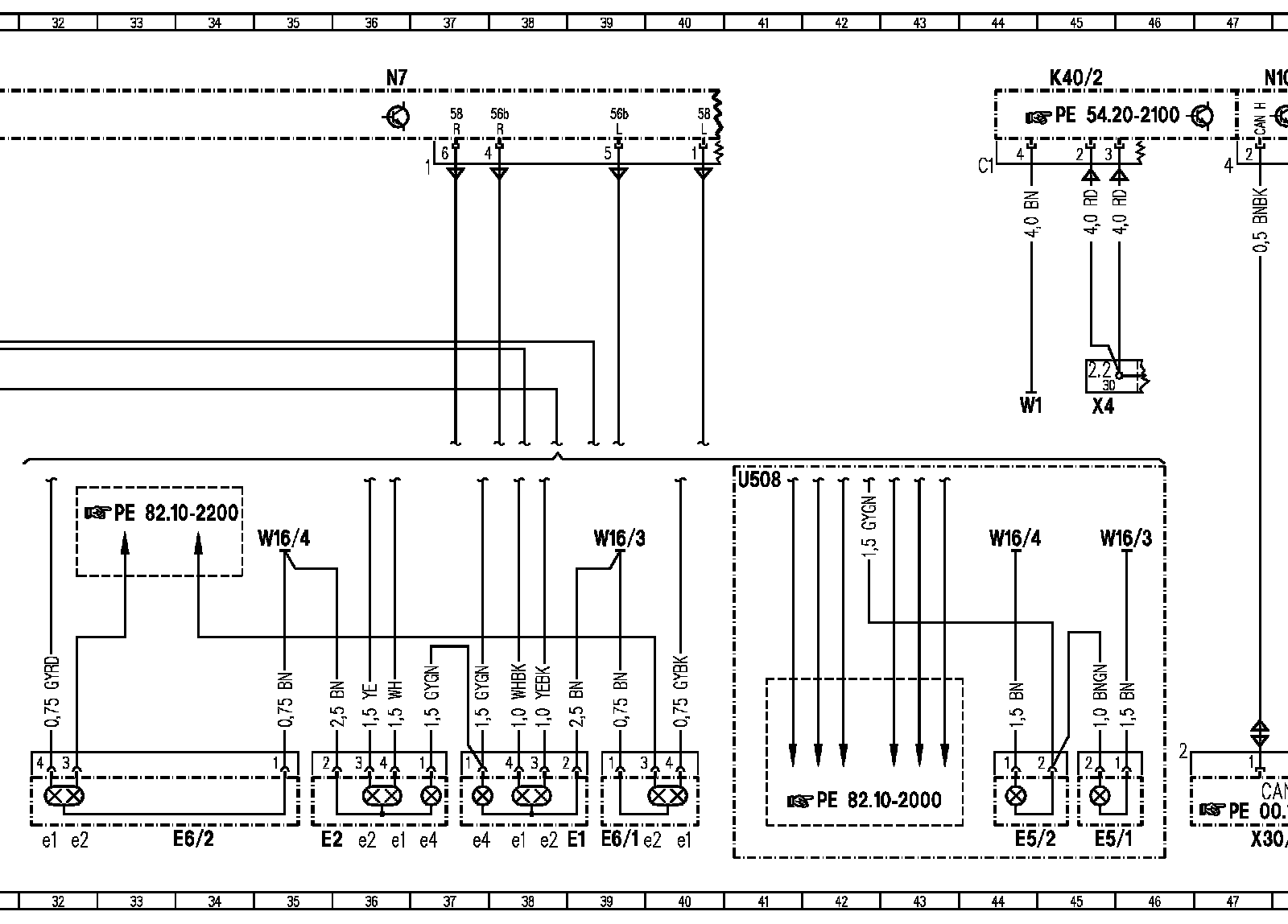

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

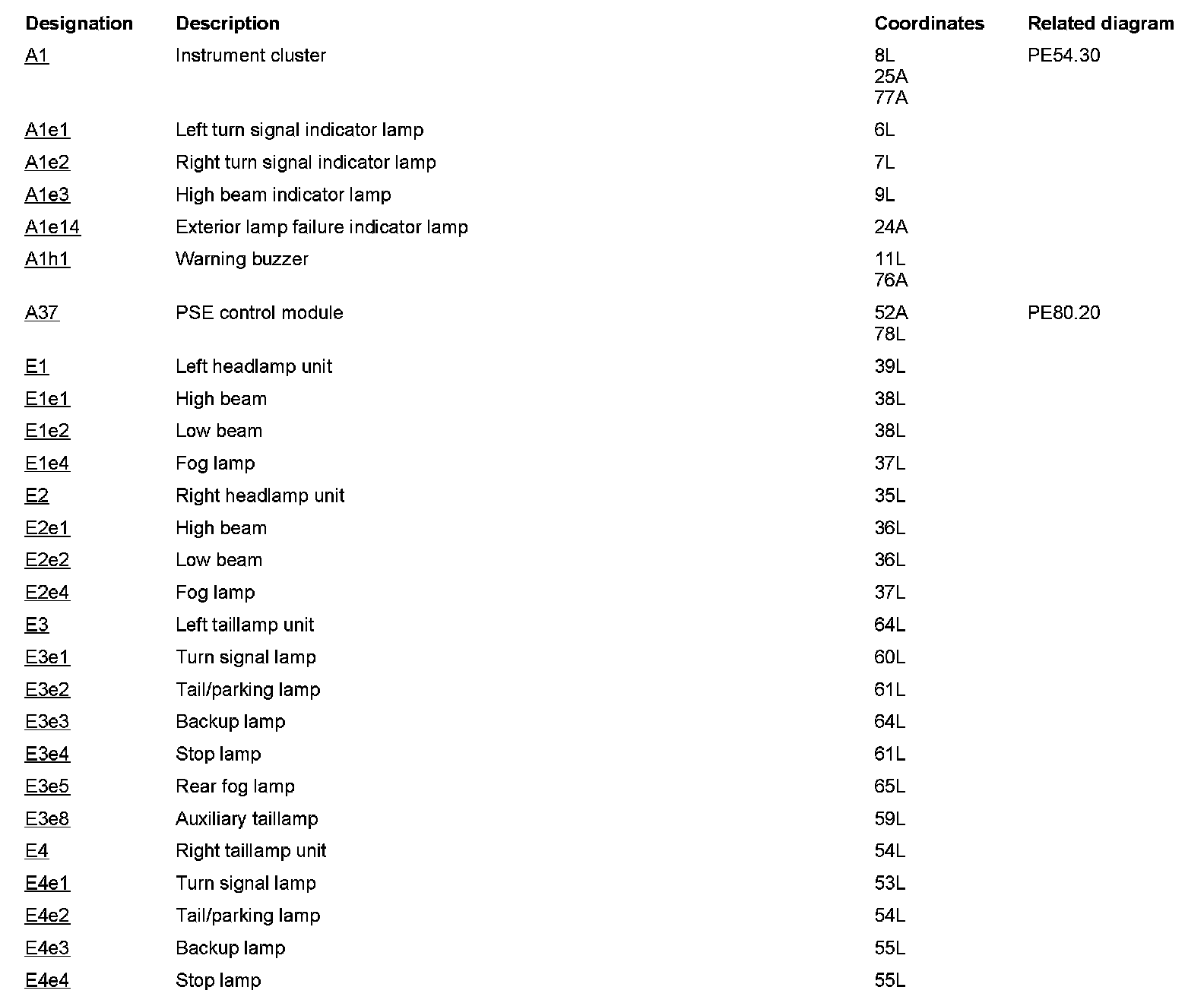

Component Description/Coordinates, A1 To E4e4:

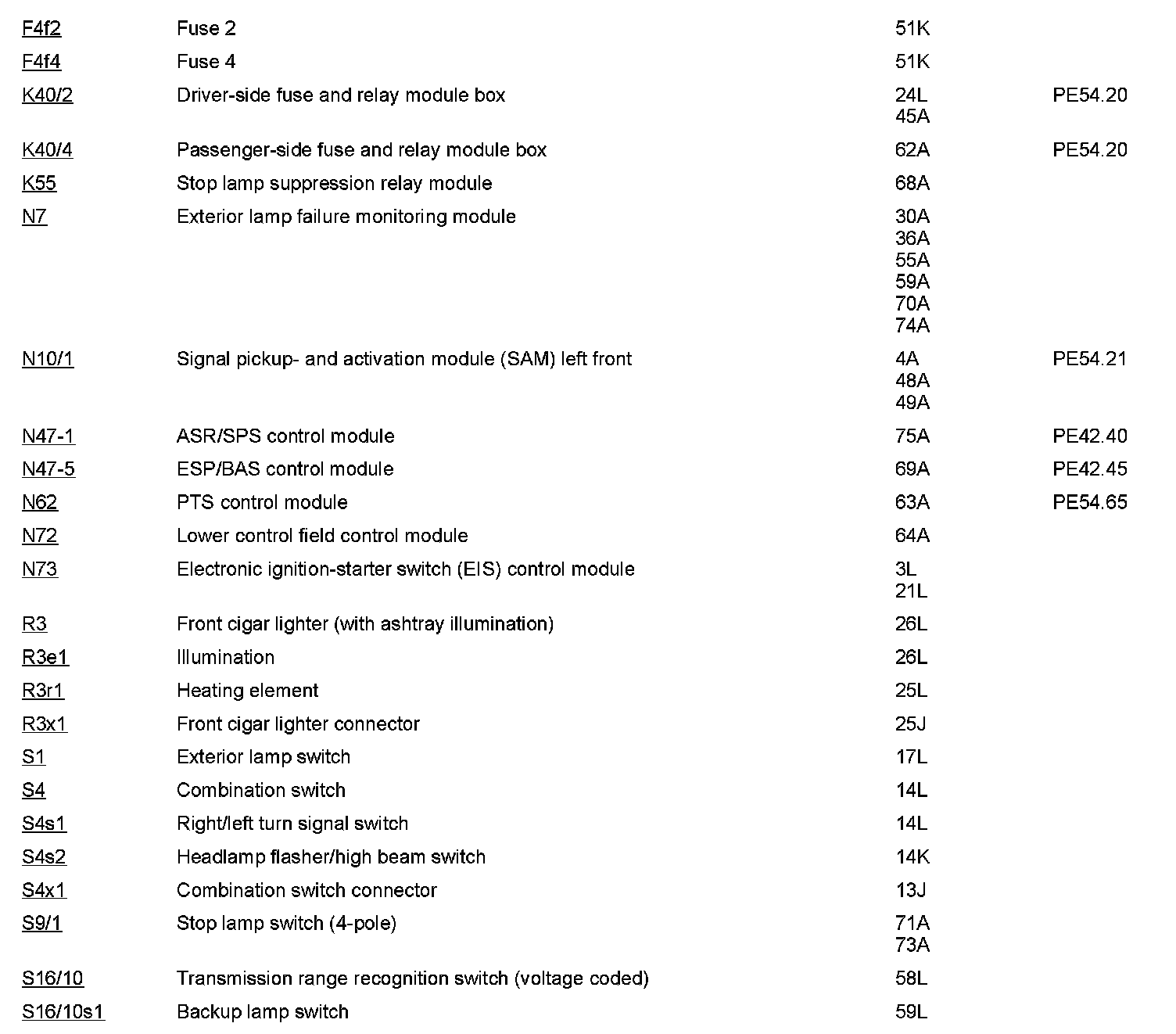

Component Description/Coordinates, E4e8 To F4:

Component Description/Coordinates, F4f2 To S16/10s1:

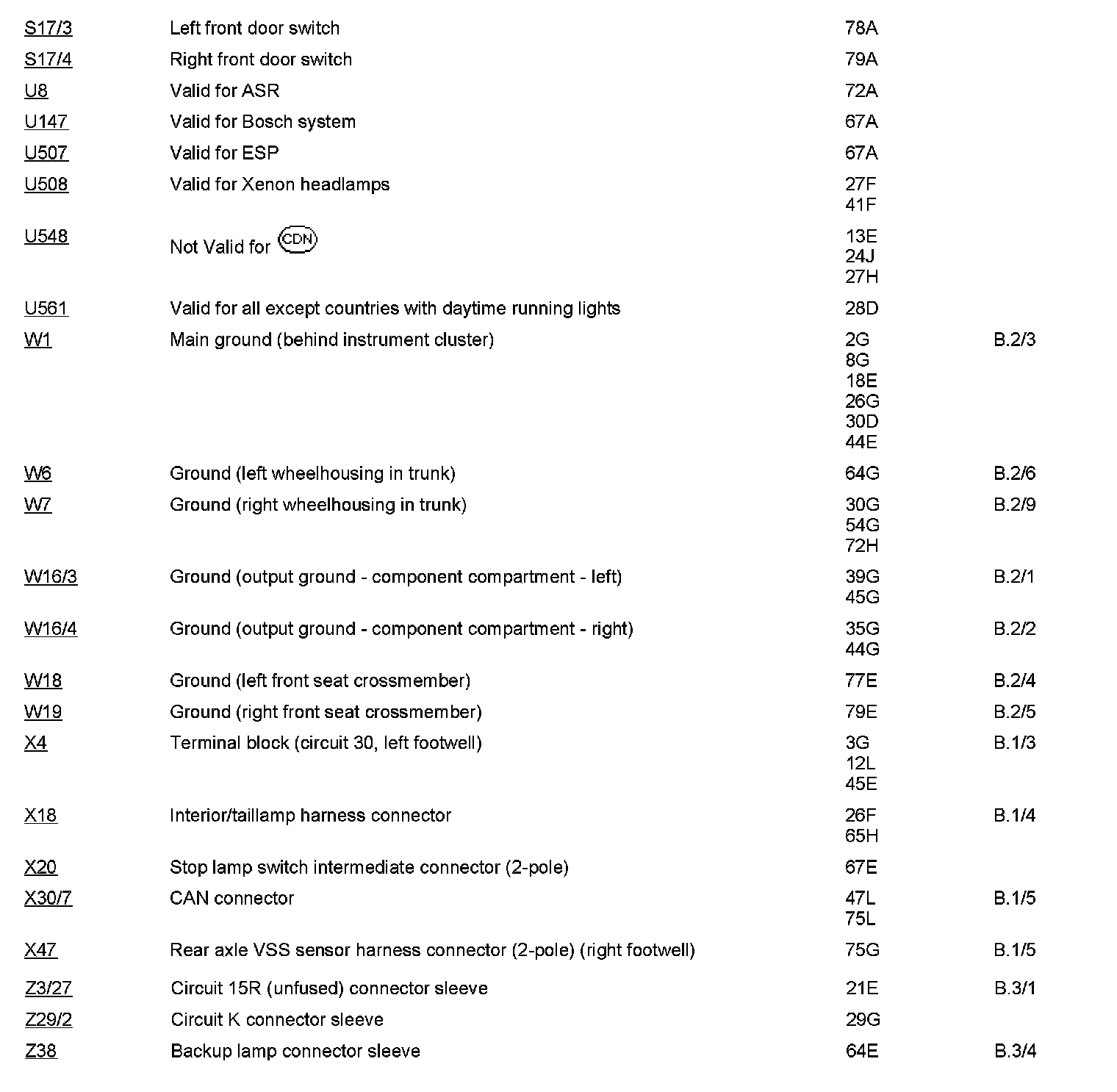

Component Description/Coordinates, S17/3 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
