C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector Locations
>>
By Connector Location
>>
B1.7 Trunk (Right)
B1.7 Trunk (Right)

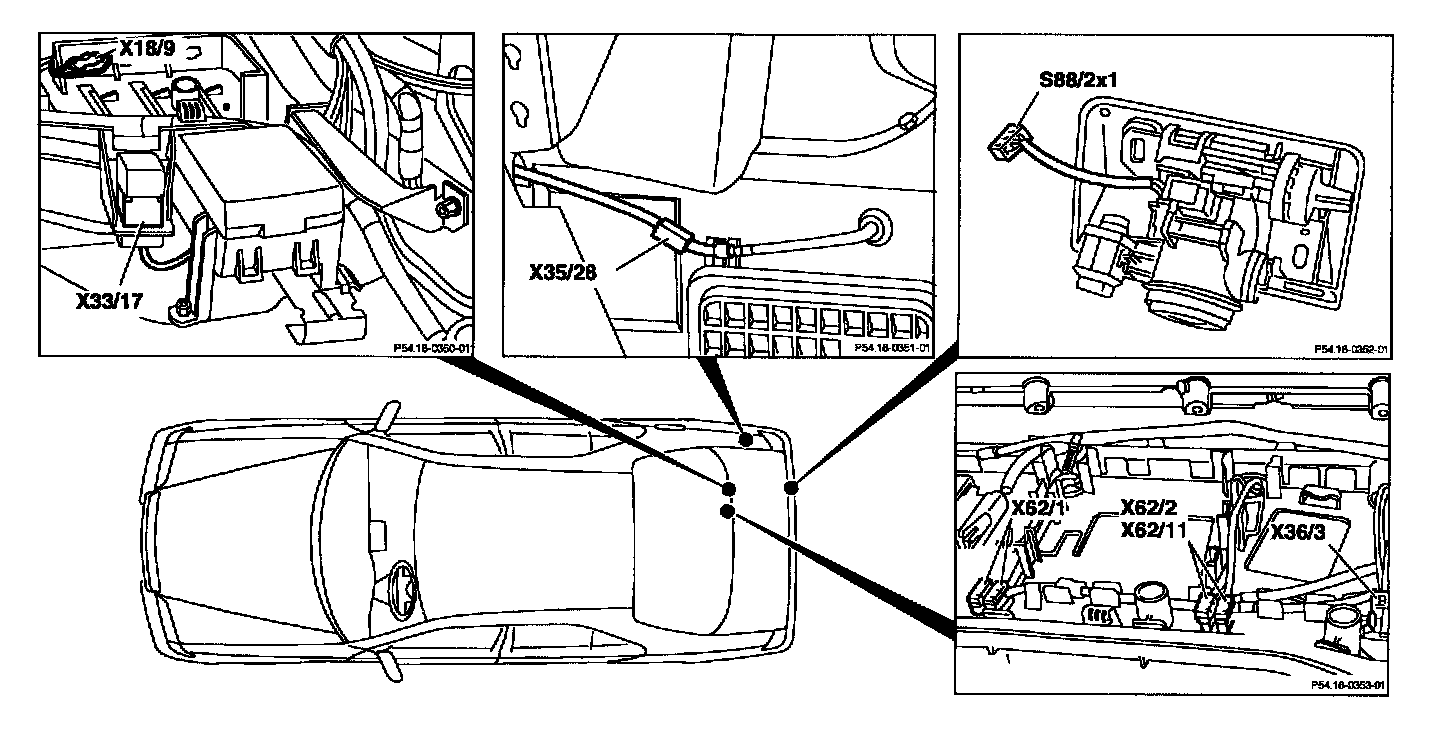

Arrangement and assignment of the wiring and plug connectors, trunk (right)

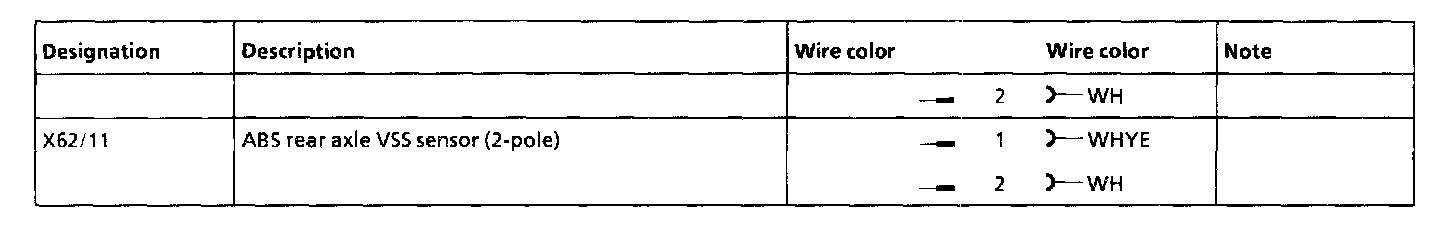

Connector Locations:
Connector ID
S88/2x1 - X62/2:
X62/11:
