B1.5 Interior Compartment (Right)



Arrangement and assignment of the wiring and plug connectors, interior compartment (right)

Connector Locations:







Connector ID

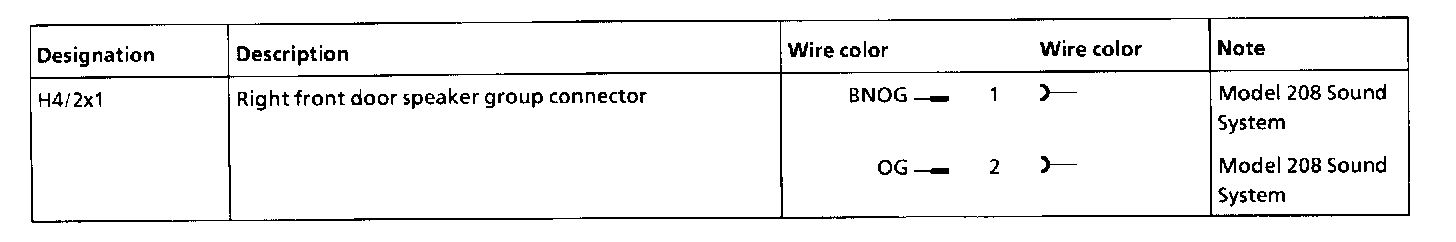

H4/2x1:

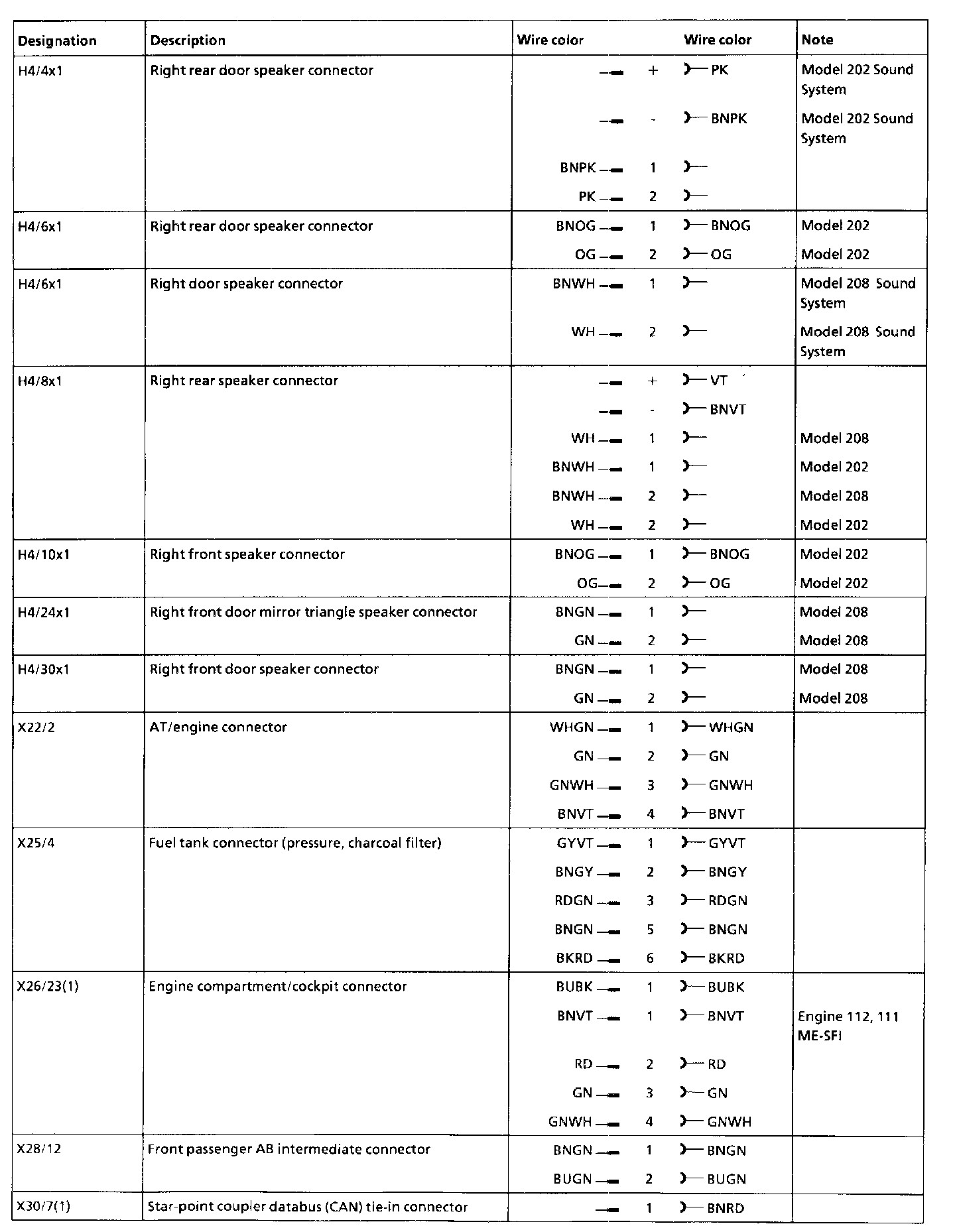

H4/4x1 - X30/7(1):

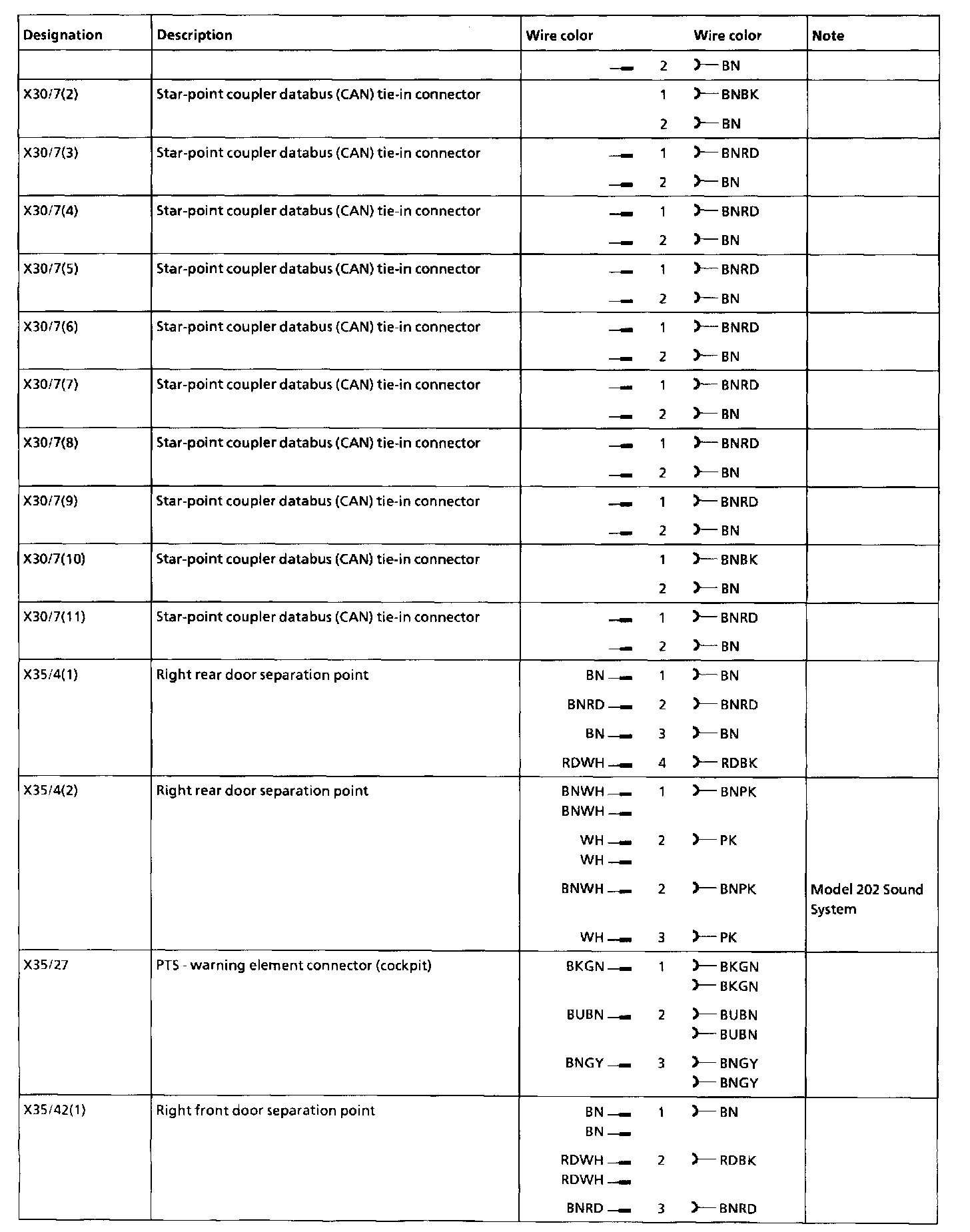

X30/7(1) - X35/42(1):

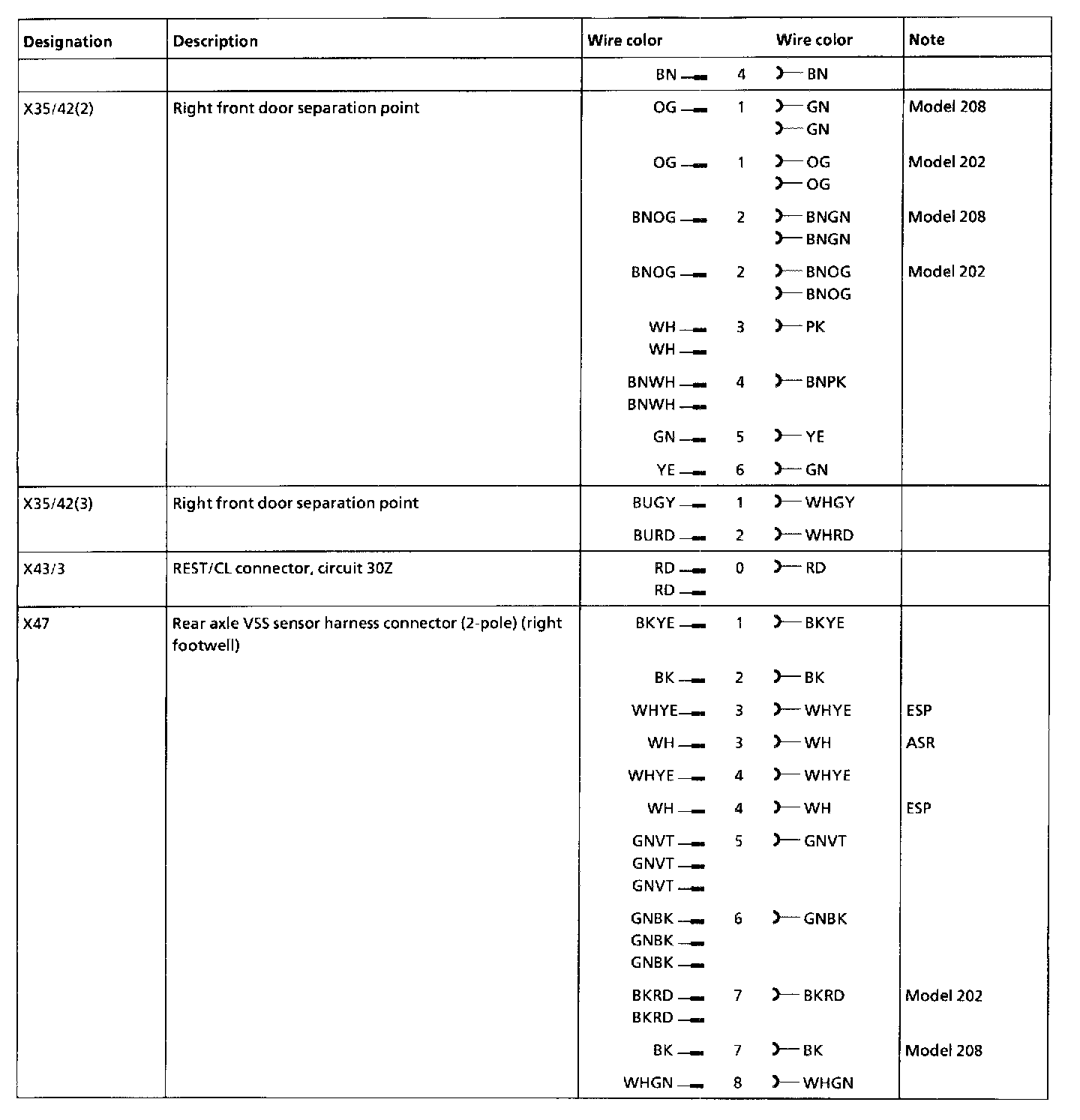

X35/42(1) - X47:
