B1.1 Engine Compartment (Left)

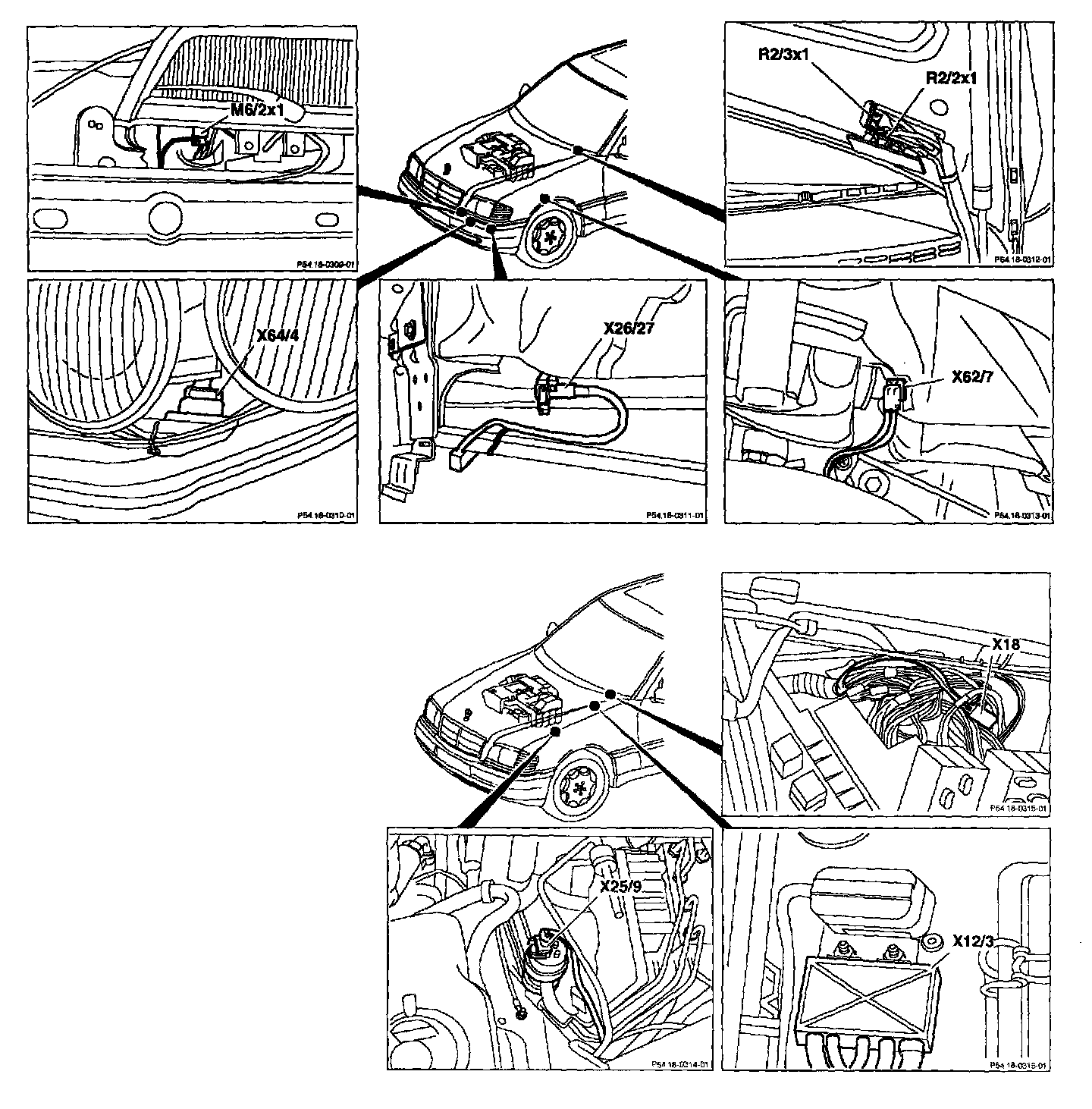

Arrangement and assignment of the wiring and plug connectors, engine compartment (left)


Connector Locations:






Connector ID

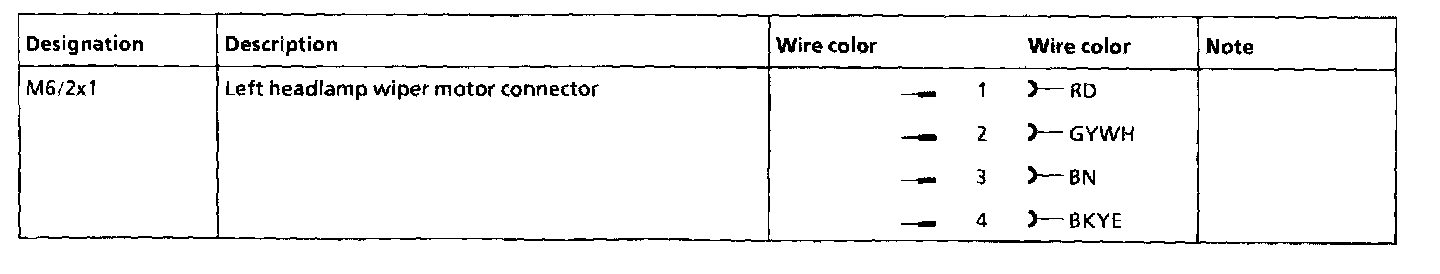

M6/2x1:

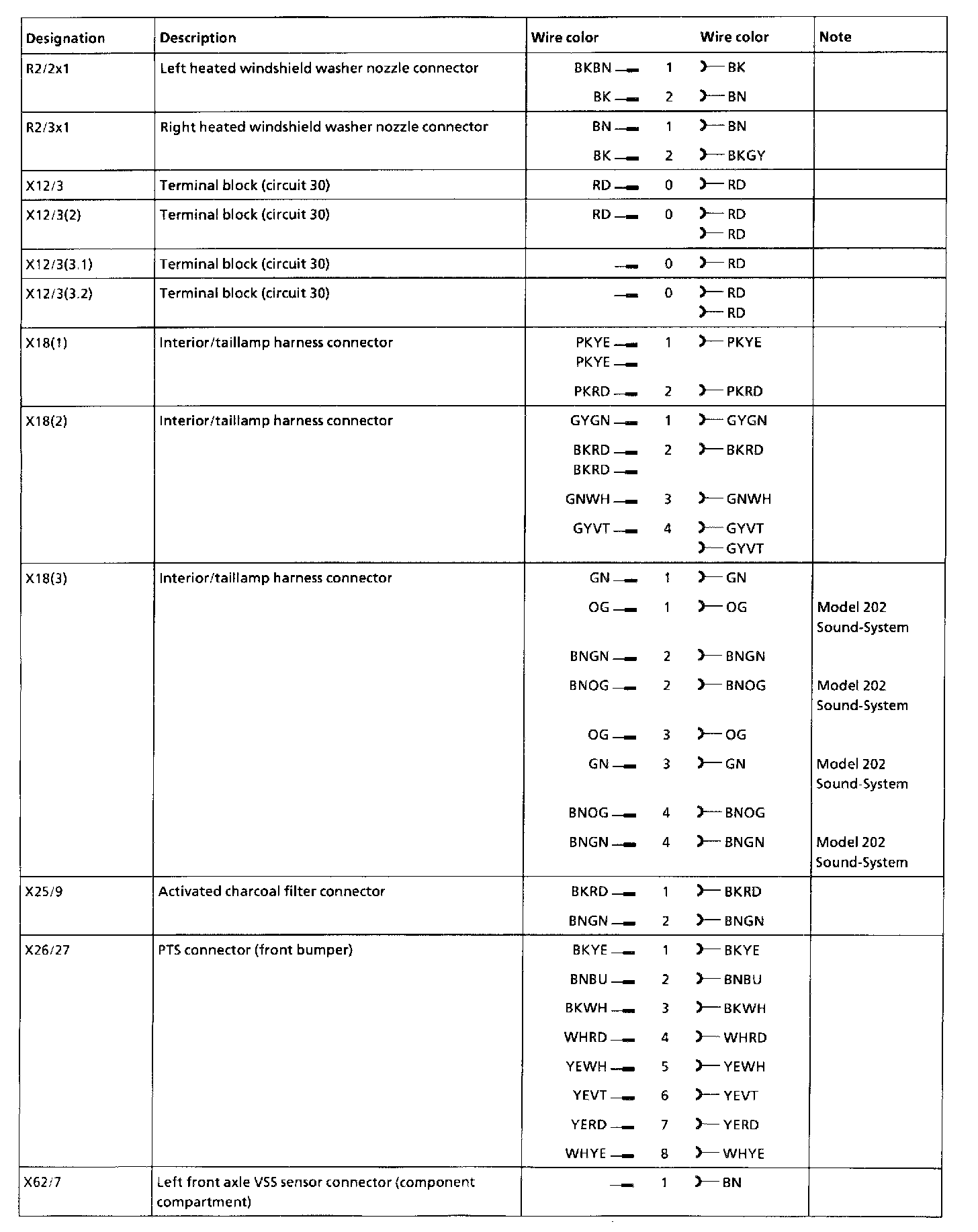

R2/2x1 - X62/7:

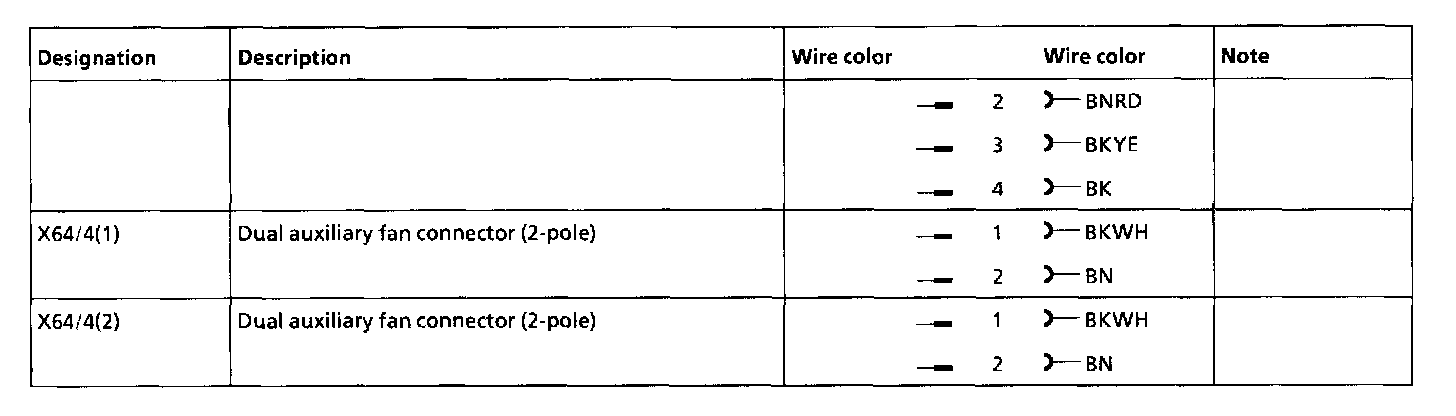

X62/7 - X64/4(2):
