X12/3 - Terminal Block (Circuit 30/15 Unfused) (3-Pole)

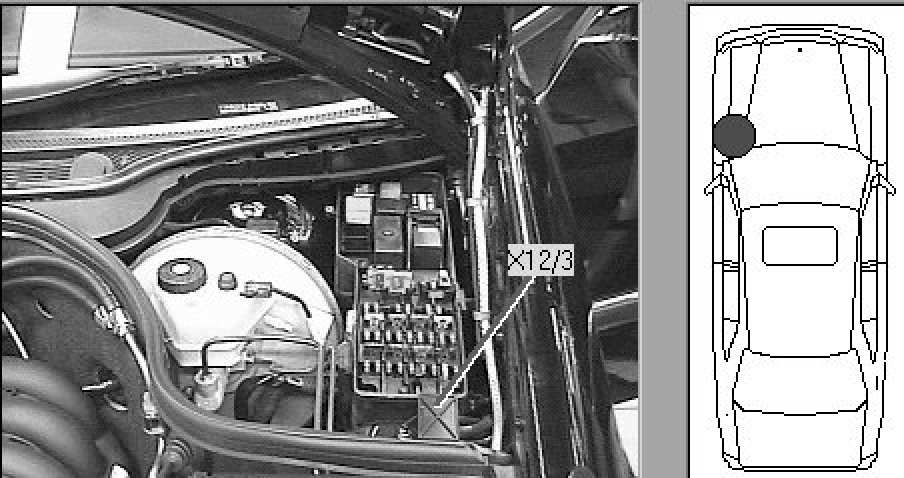

Left component compartment, just forward of fuse box (circuit 30/15 unfused)
