Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector Locations >> By Connector Designation >> M16x1 - CC Actuator Connector

M16x1 - CC Actuator Connector

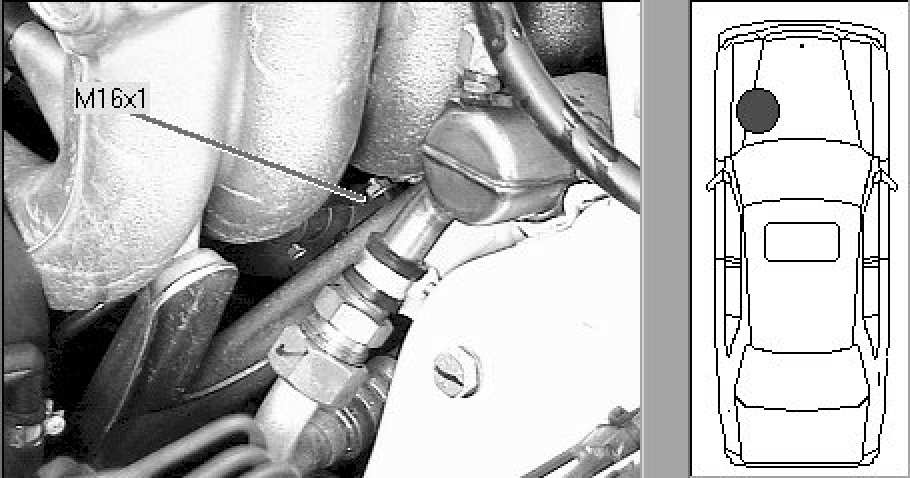

Engine compartment, left side of engine, beneath intake manifold
