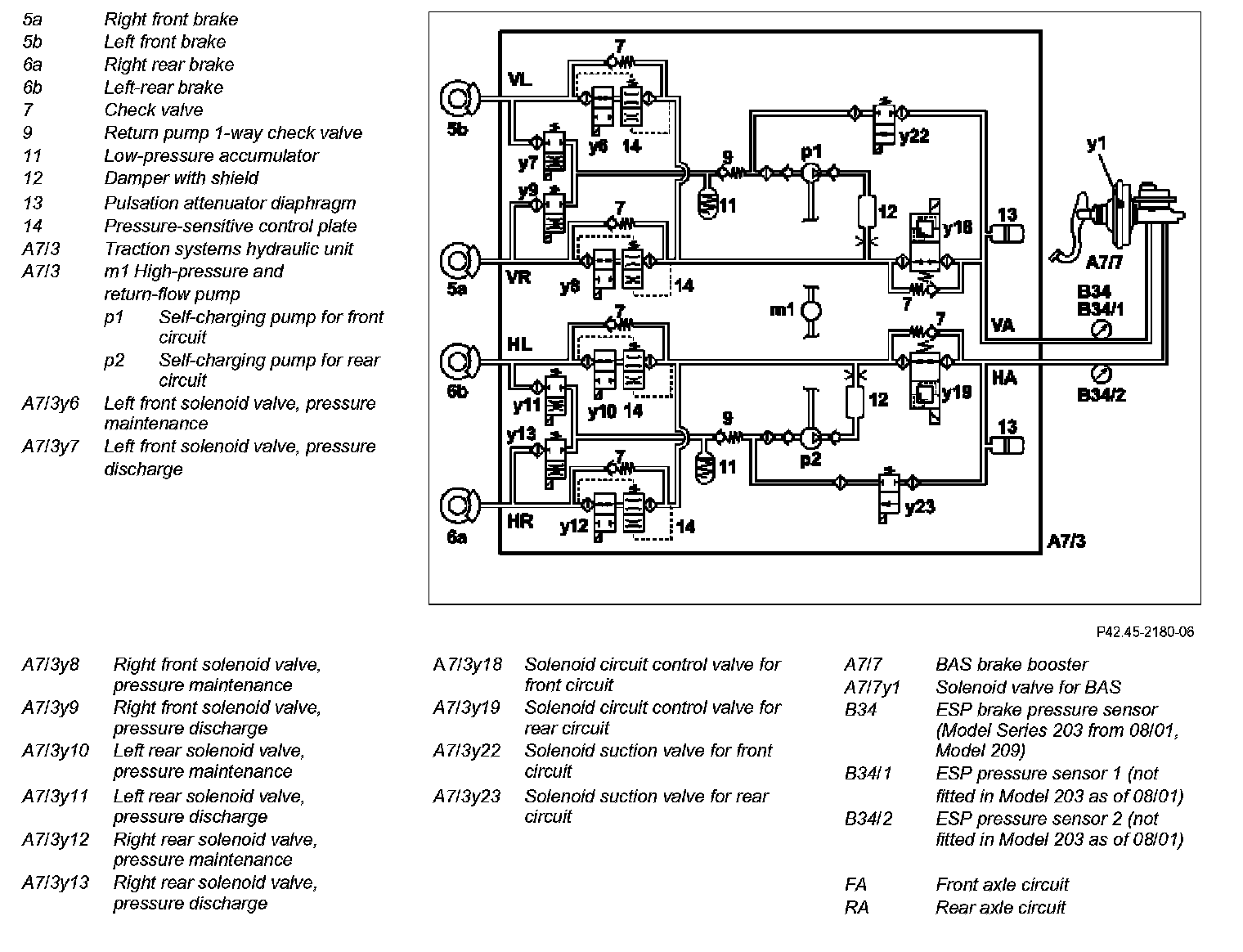

GF42.50-P-4000-03D Design of Traction Systems Hydraulic Unit
GF42.50-P-4000-03D Design of Traction Systems Hydraulic Unit
GF42.50-P-4000-03D Design of traction systems hydraulic unit
