HTP - Preparation For Test [32]

Automatic Locking Differential (ASD)

Models 124, 129.061, 201 (as of 6/92), 202

Hydraulic Test Program [HTP]

Preparation for Test

1. Ignition: OFF
2. Check oil level in oil reservoir and correct if necessary.
3. Remove plastic cover.
4. Remove ASD control module.
5. Bridge socket 8 and socket 10 at the electrical connector for ASD control module.

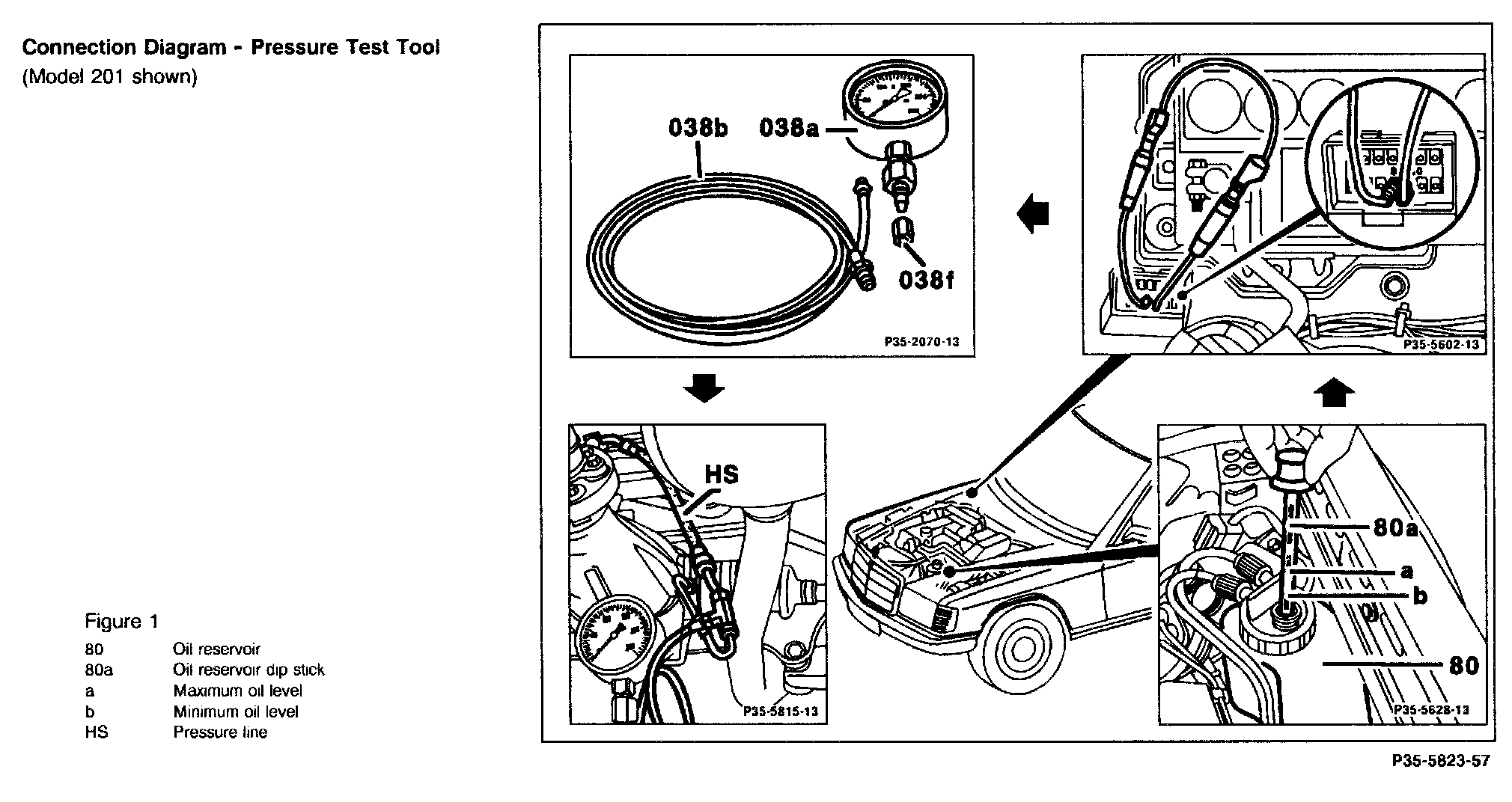

6. Connect the pressure test tool to the ring cylinder as per the connection diagram.

Note: Depending on acecssibility, the pressure test tool can installed on either the right vent screw or the left "HS" line.

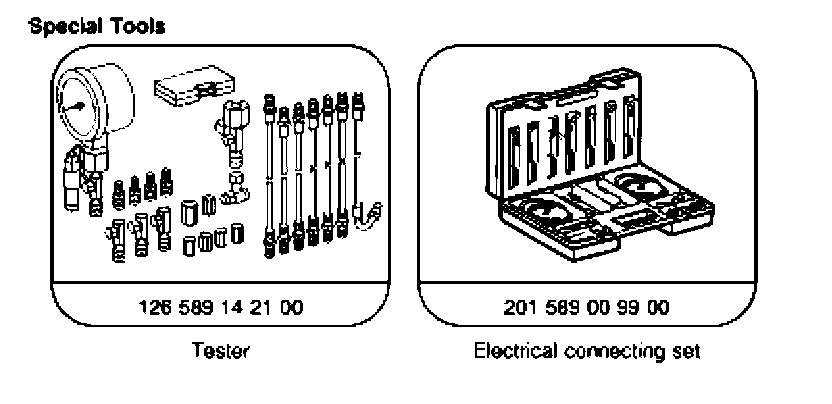

Special Tools:
