Automatic Locking Differential (ASD)

Automatic Locking Differential (ASD)

Models 124, 129.061, 201 (as of 6/92), 202

Electrical Test Program - Preparation for Test

Preliminary work:
Diagnosis - Diagnostic Trouble Code (DTC) Memory 11 Automatic Locking Differential (ASD) (DTC Memory [11])

1. Ignition: OFF
2. Remove plastic cover.
3. Remove ASD control module.
3. Connect socket box with test cable according to connection diagram (Figures 1-5).

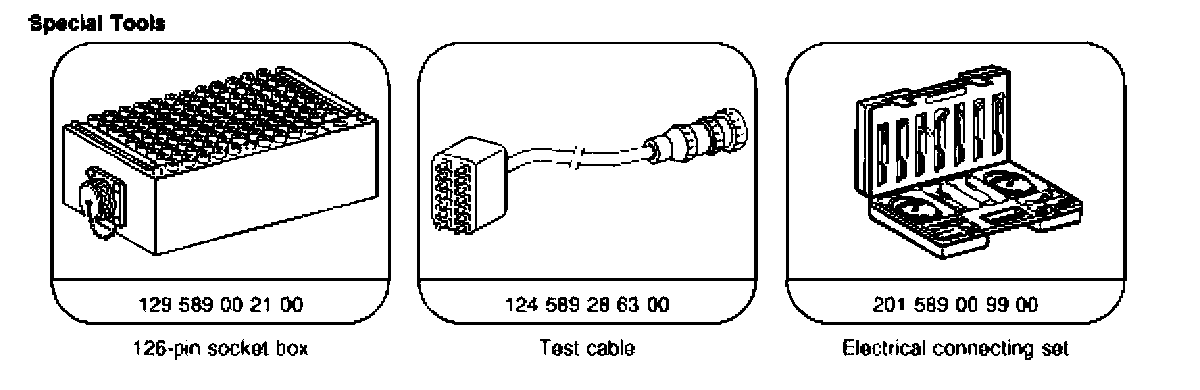

Special Tools:

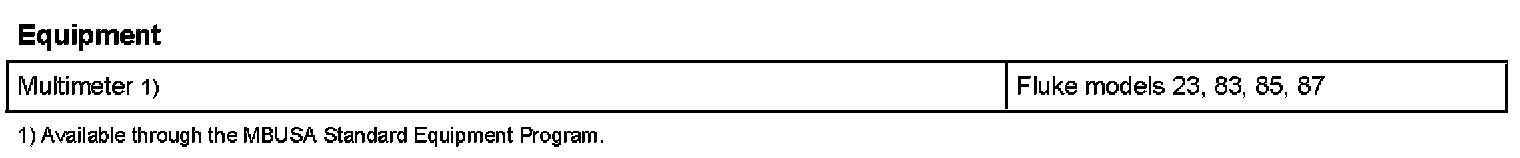

Equipment:

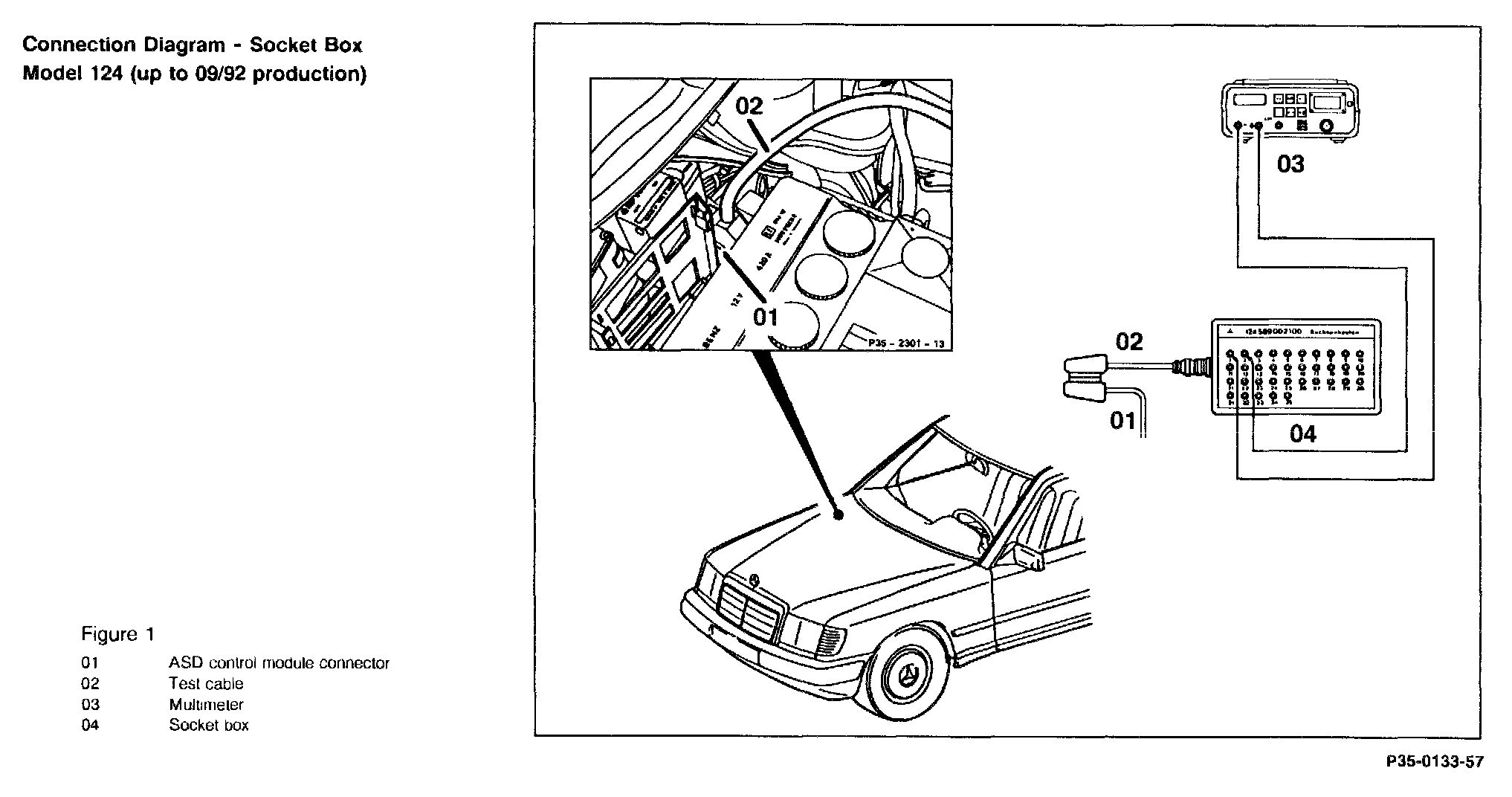

Model 124 (up To 9/92):

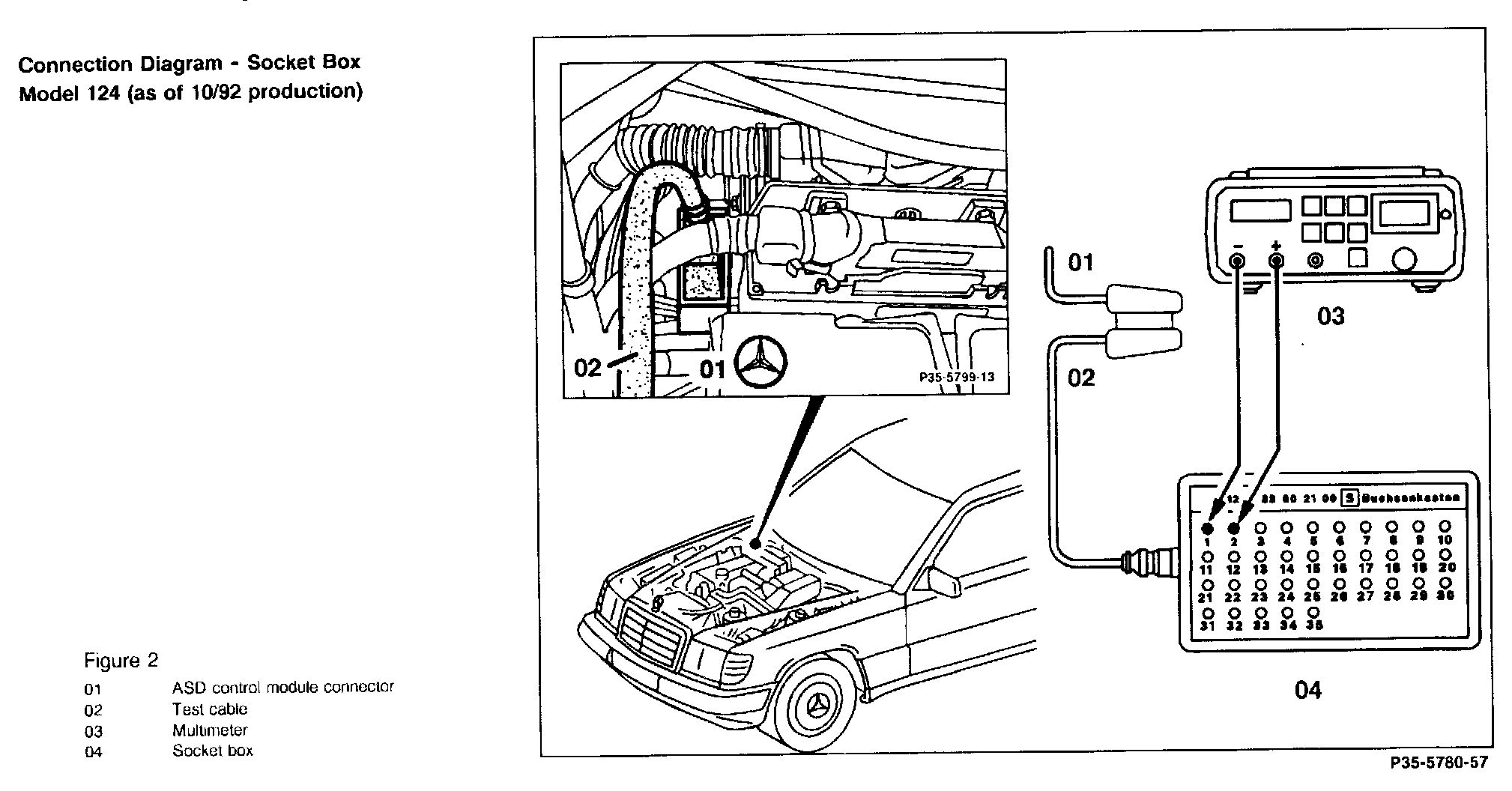

Model 124 (as Of 10/92):

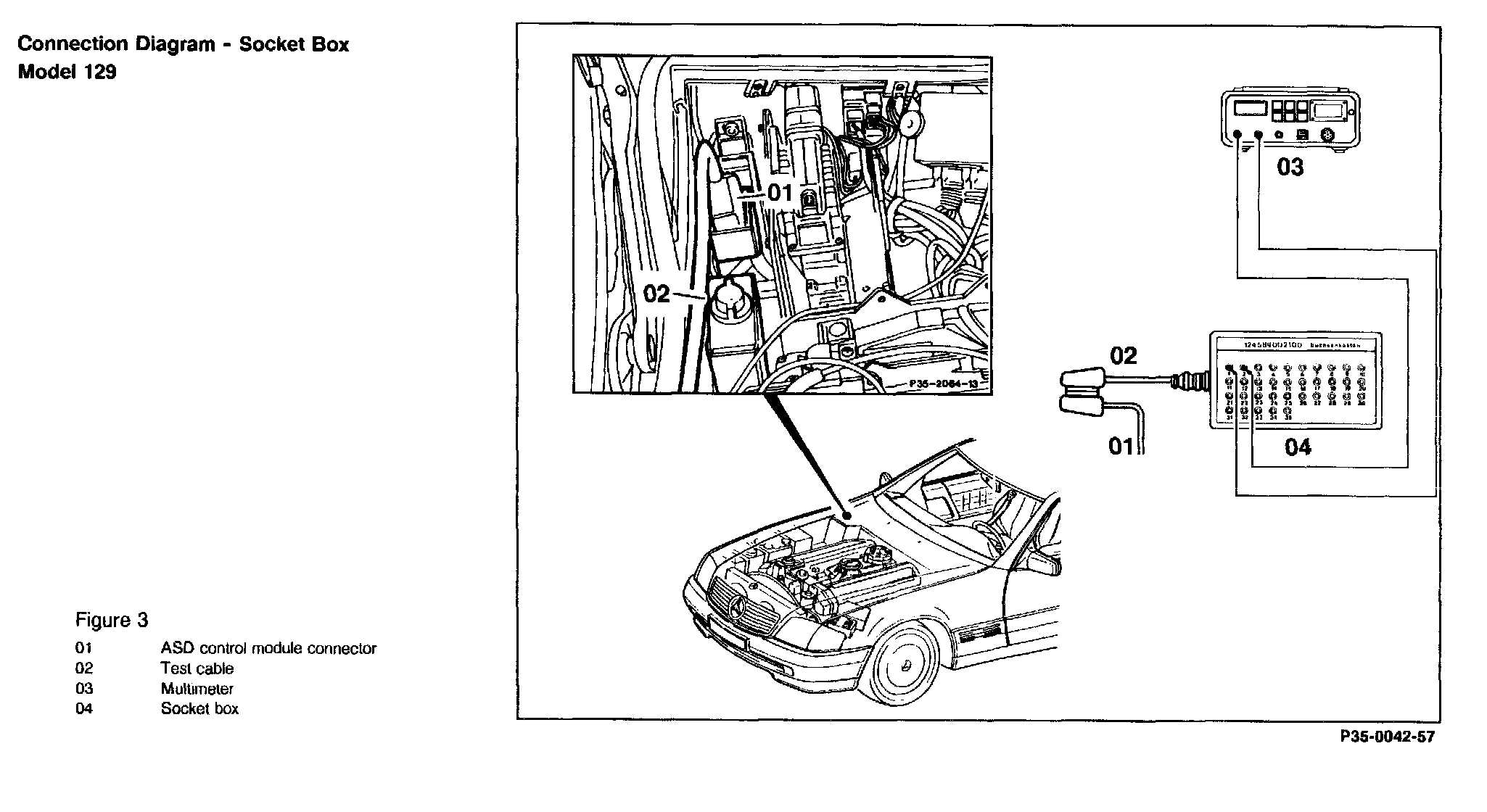

�b~%Model 129:

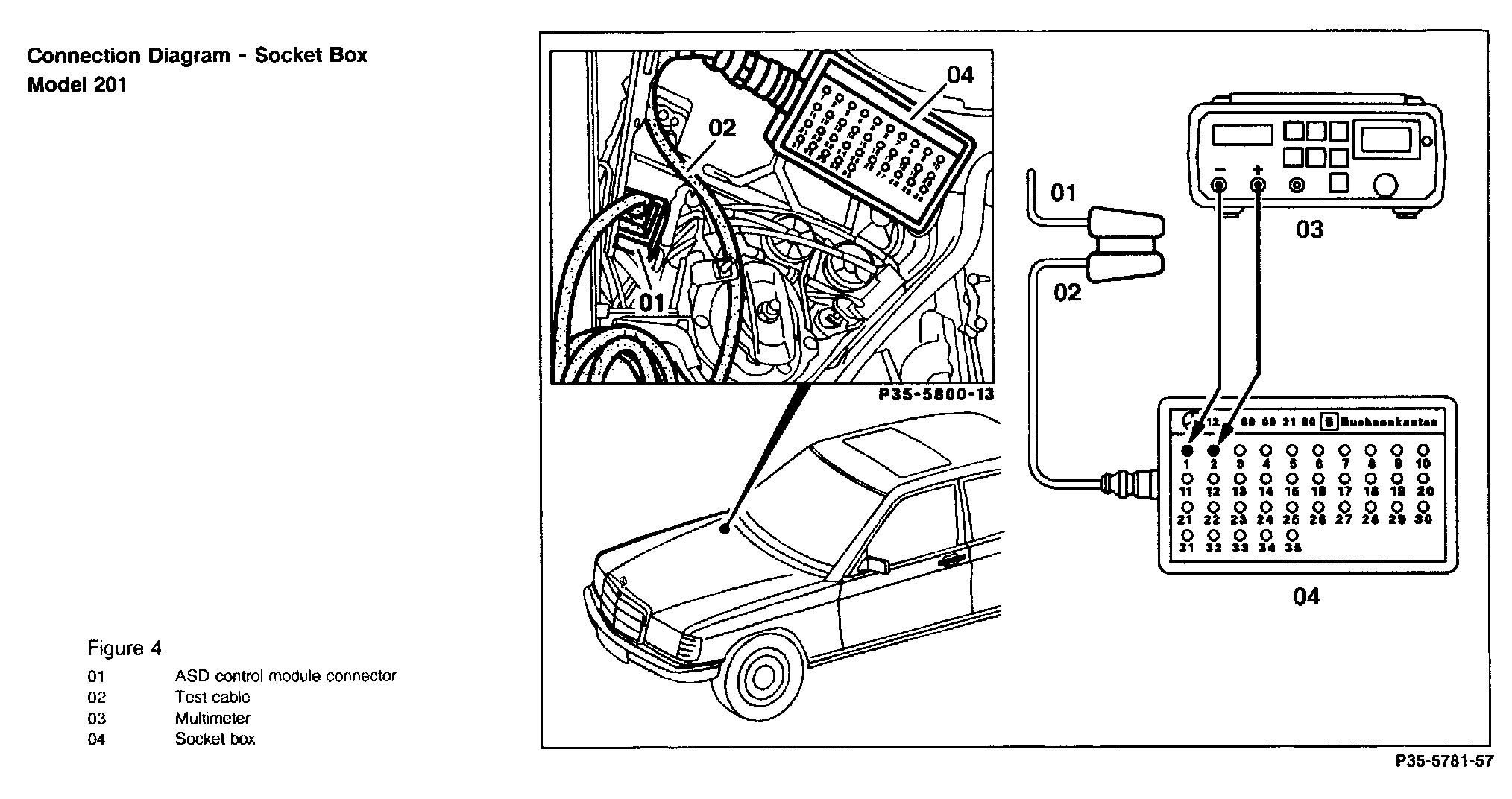

Model 201:

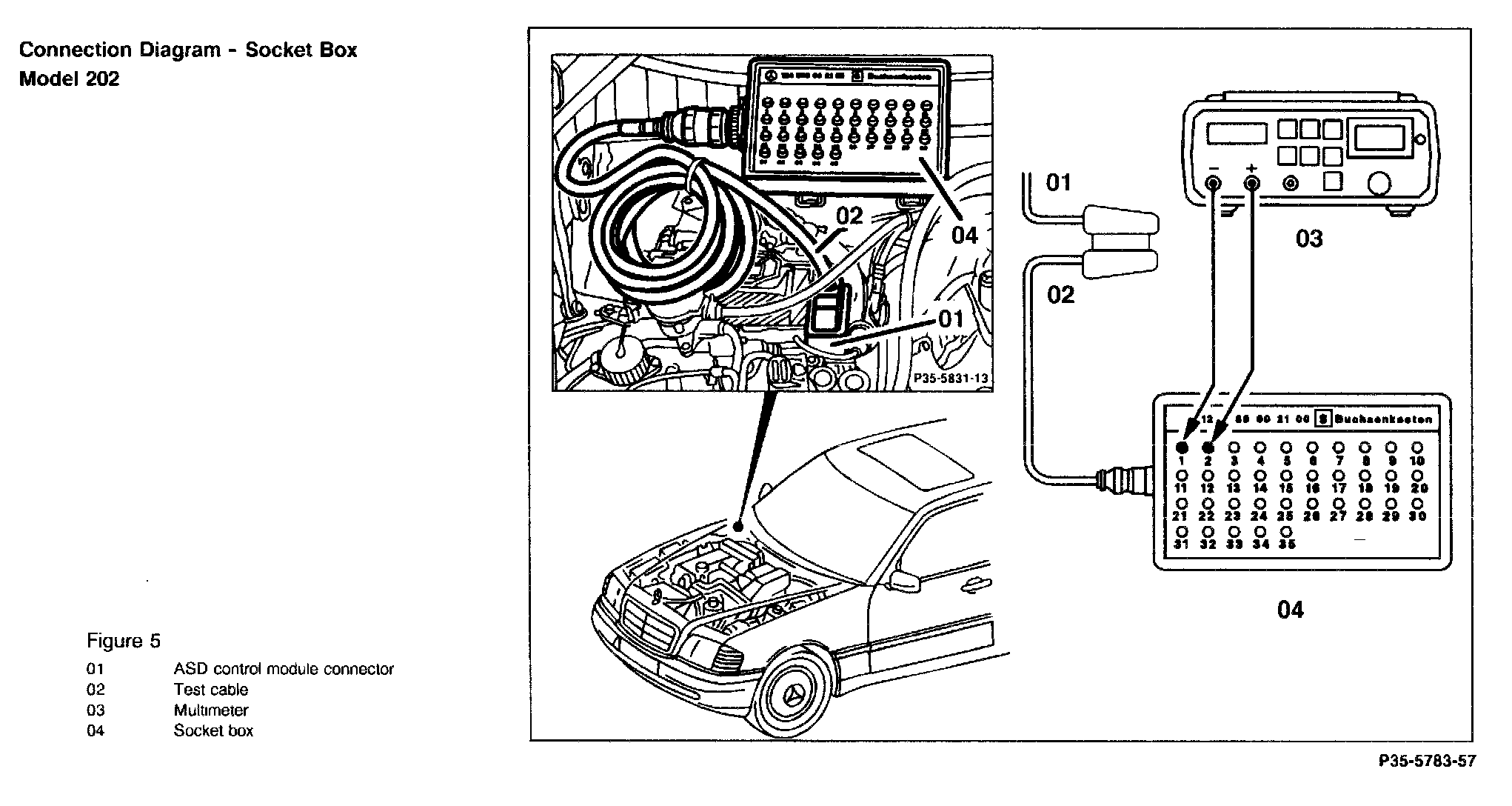

Model 202:
