Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests (Electrical Test Program [ETP]) >> ETP - Connector Layout [23] >> Automatic Locking Differential (ASD)

Automatic Locking Differential (ASD)

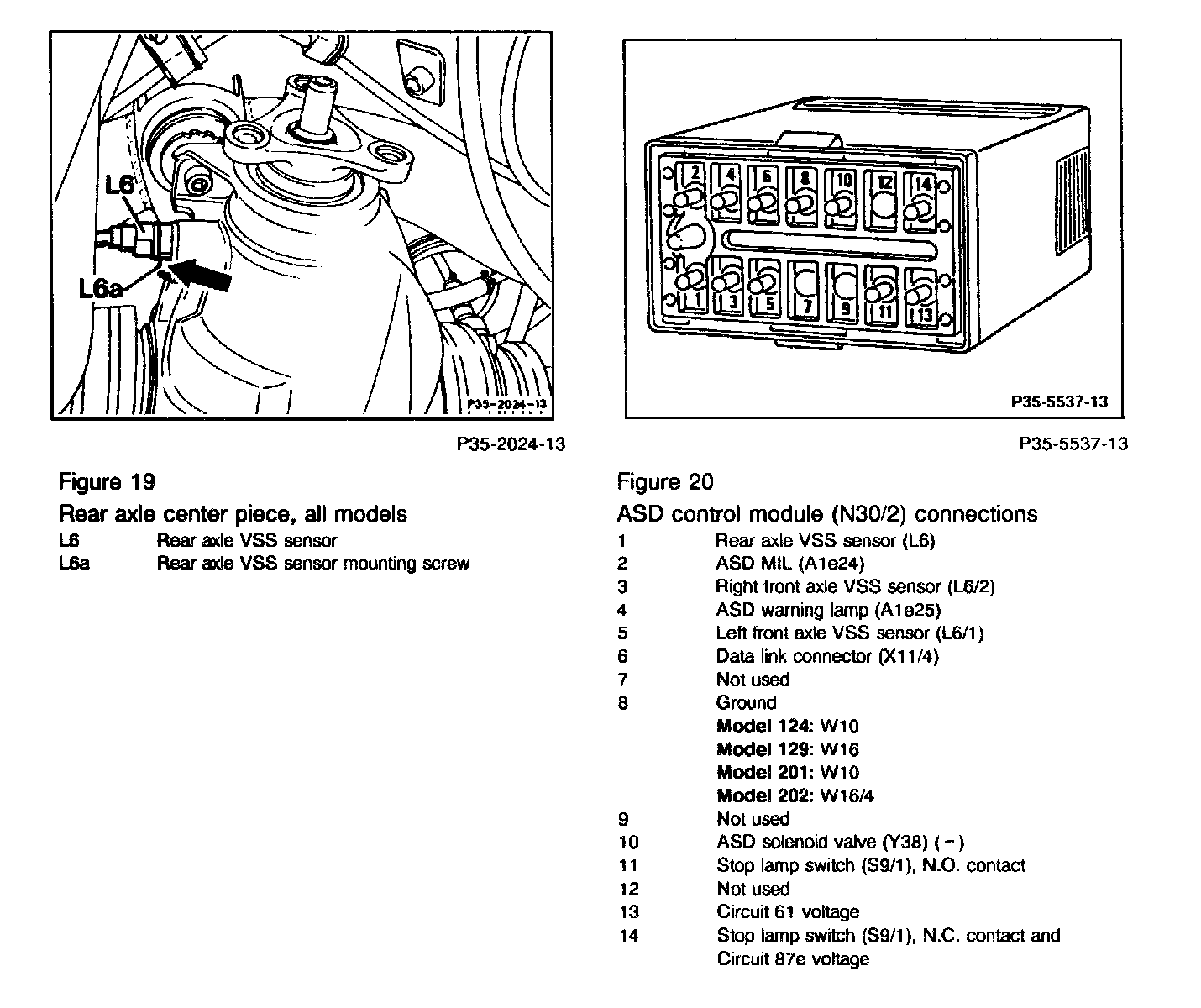

Figures 19-20:
