Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Remove/Install Loudspeaker In Rear Shelf

Remove/Install Loudspeaker In Rear Shelf

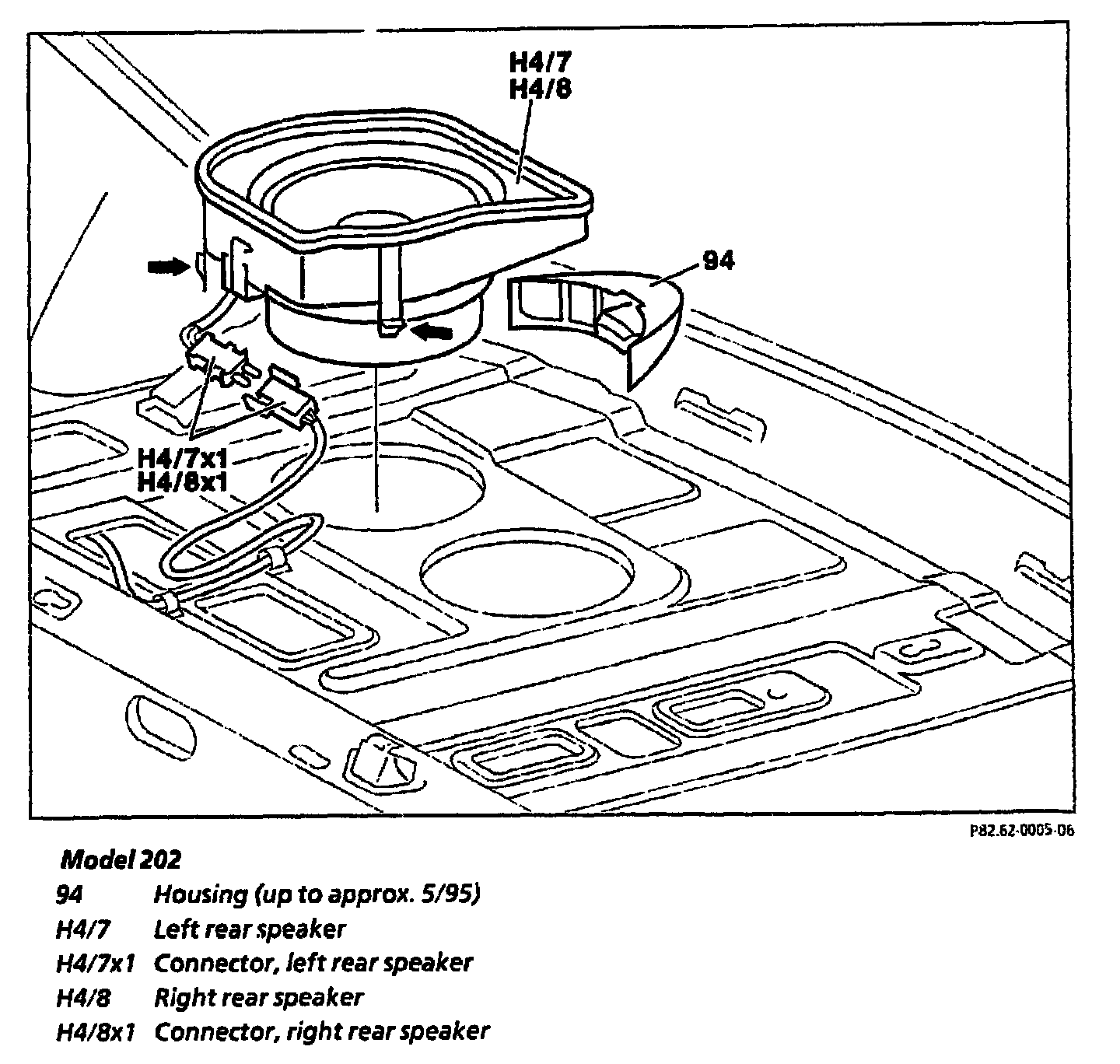

Component Identification:

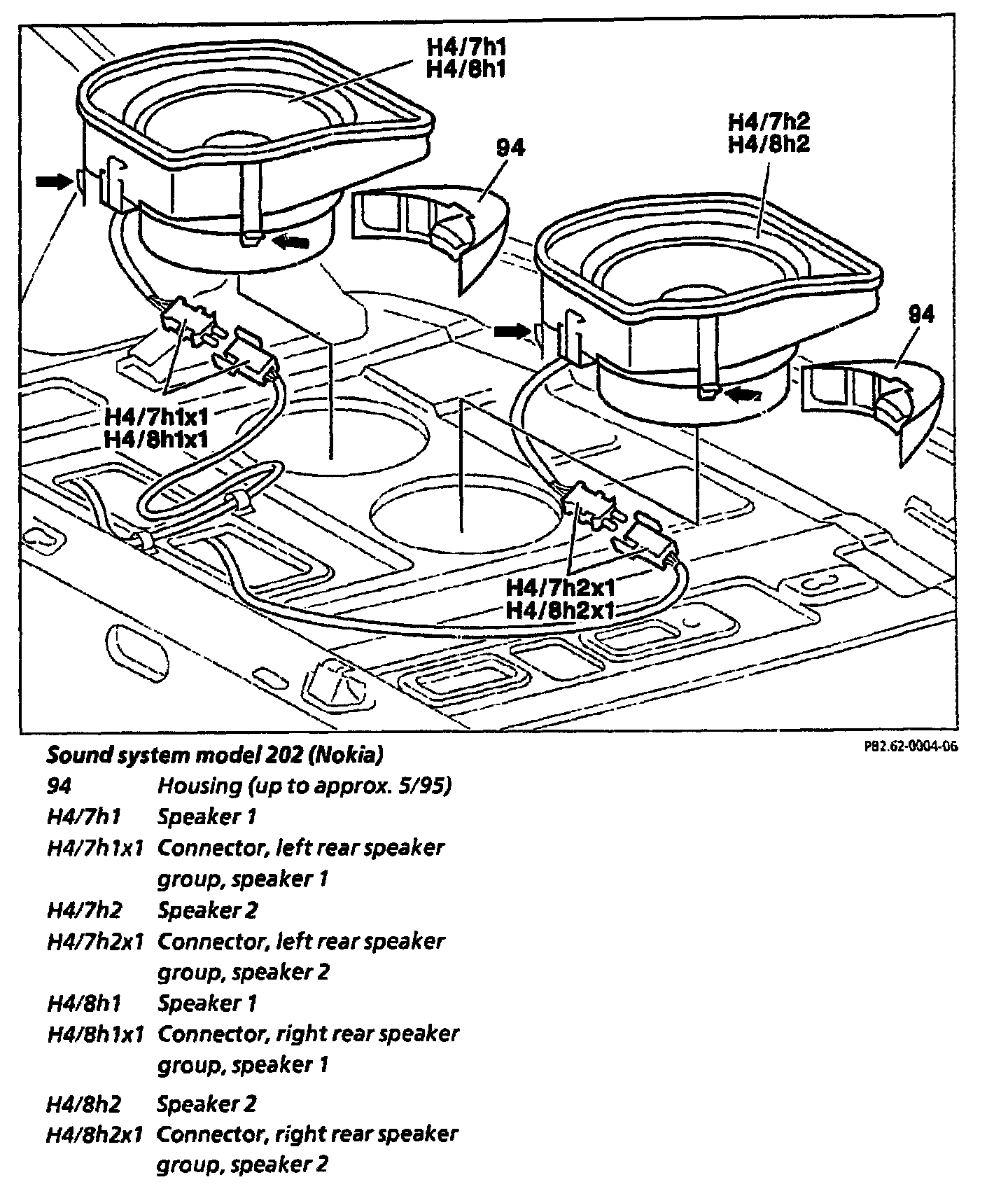

Component Identification, Sound System (Nokia):





Removal/Installation, Steps 1 - 8:
