With Bose (R) Sound System

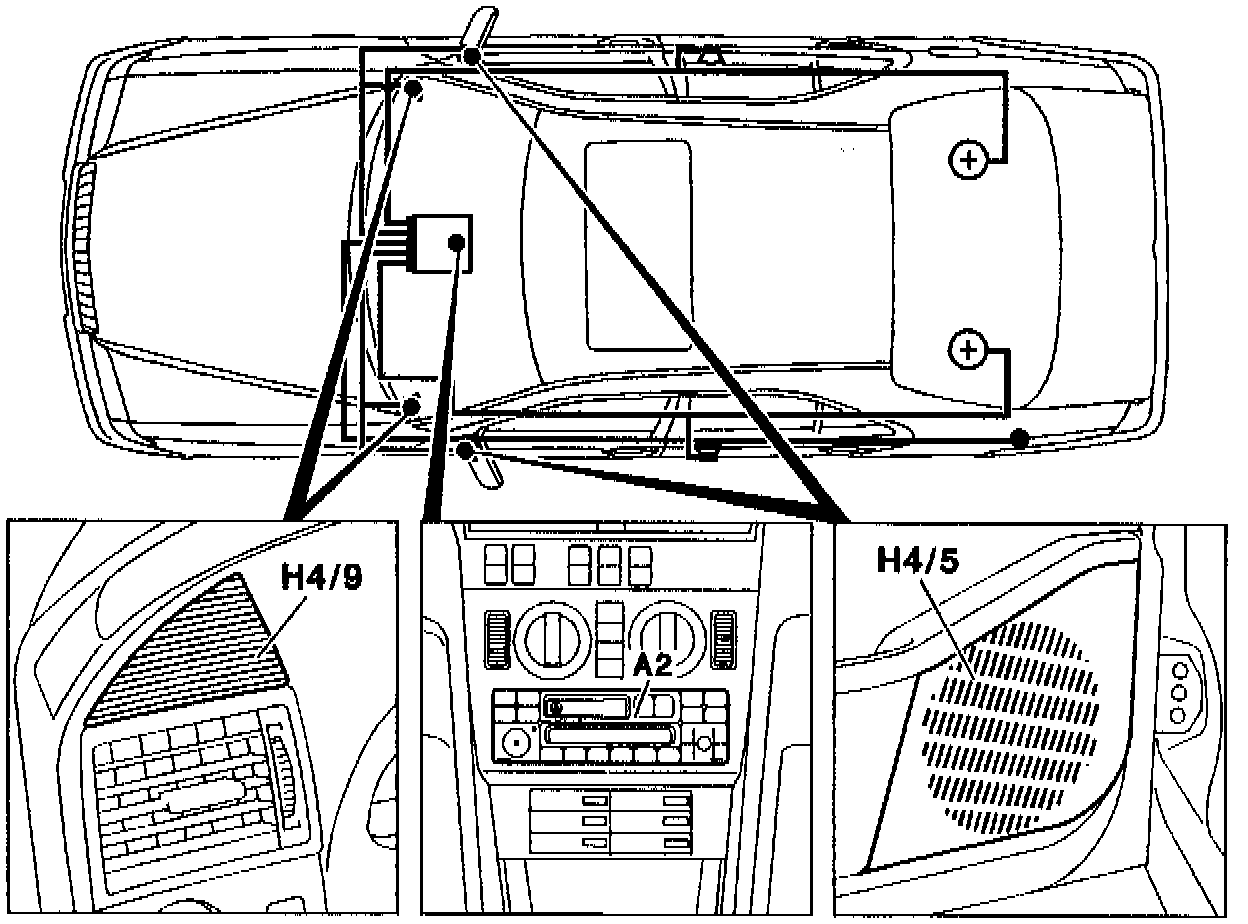

Figure 1 (Front Loudspeaker System):
A2 Radio
H4/5 Left front door speaker
H4/9 Left front speaker

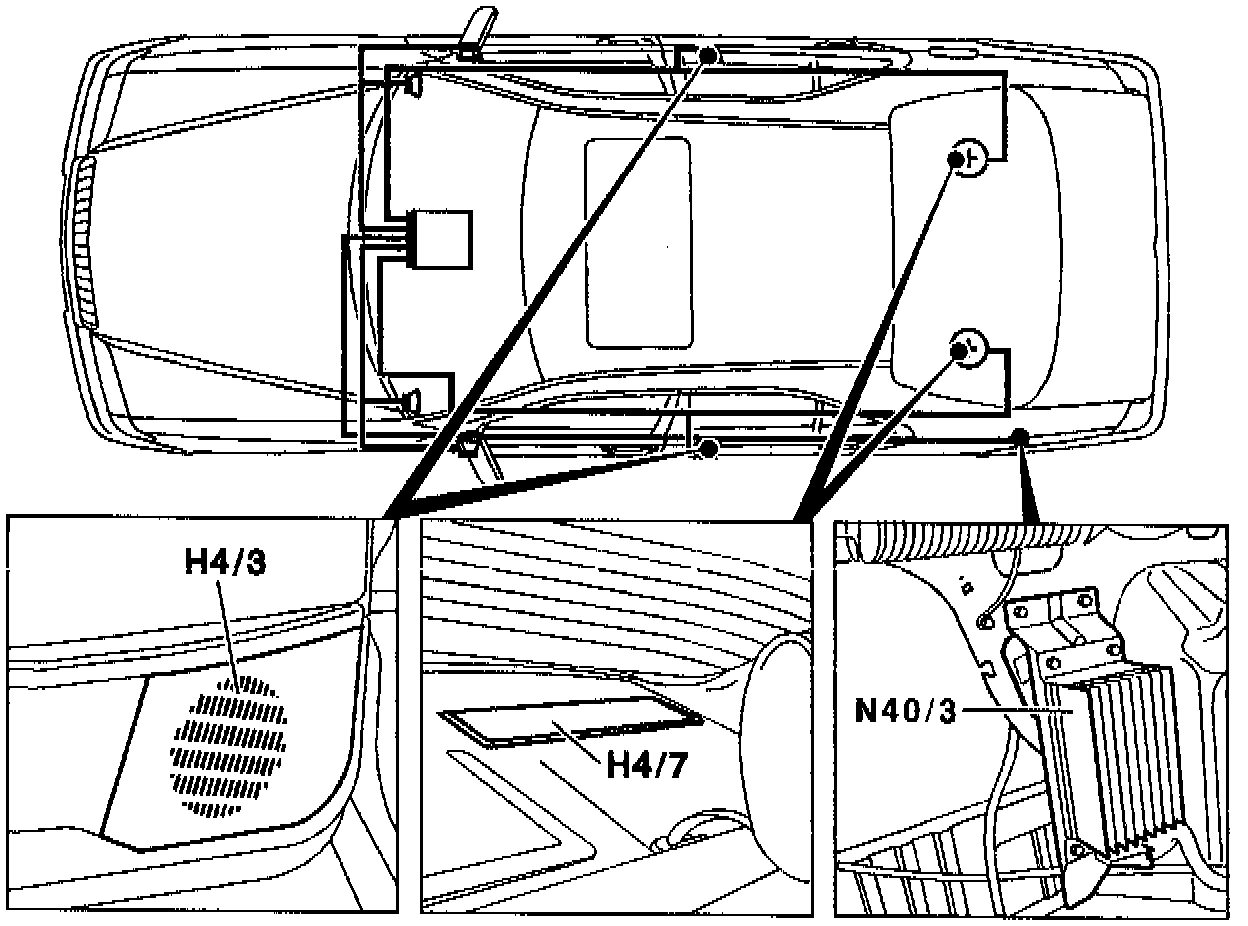

Figure 2 (Rear Loudspeaker System):
H4/3 Left rear door speaker
H47 Left rear speaker
N40/3 Left/right audio power amplifier
