Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Radio >> Service and Repair >> Replacing Automatic Antenna

Replacing Automatic Antenna

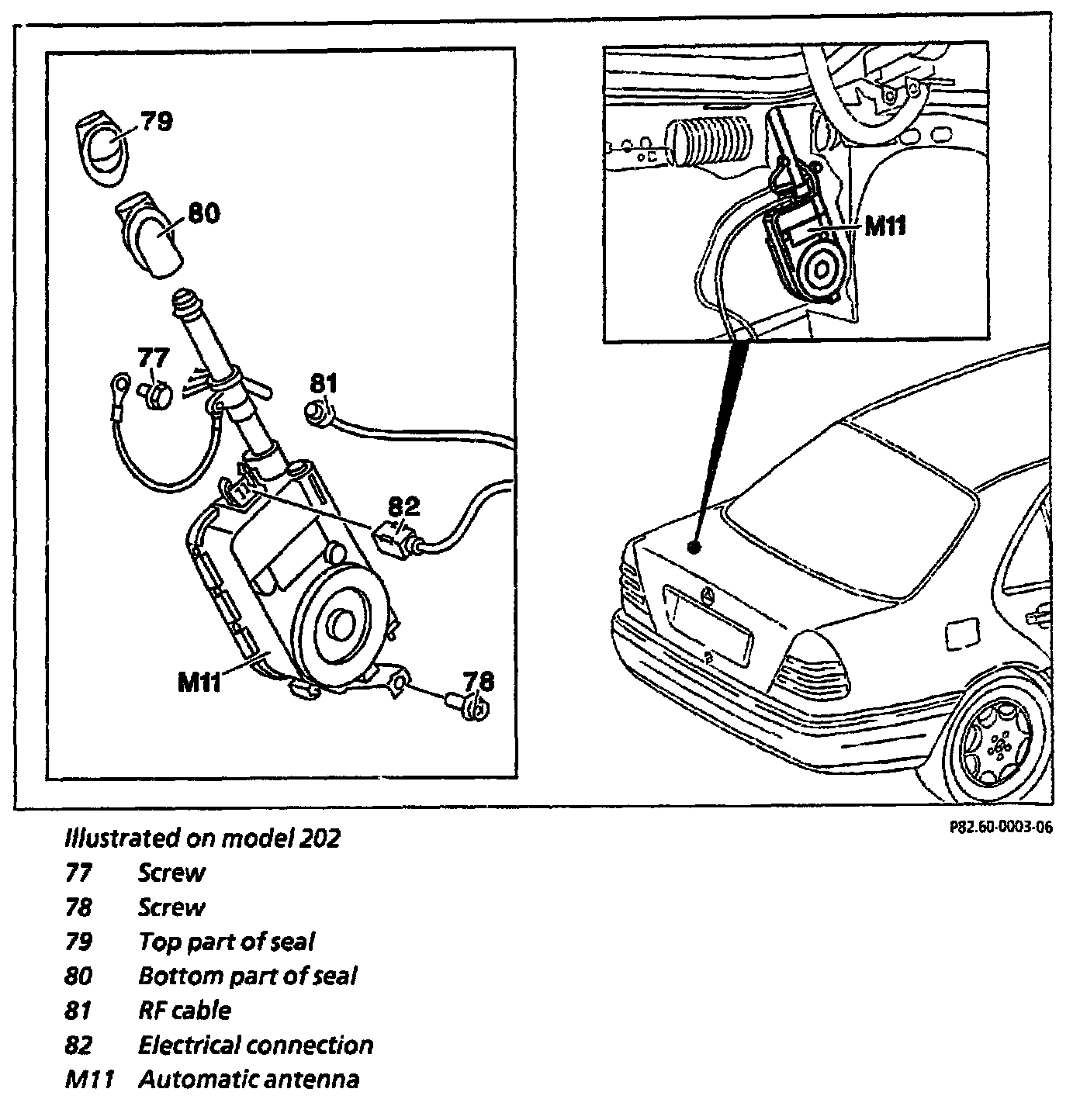

Illustrated On Model 202:

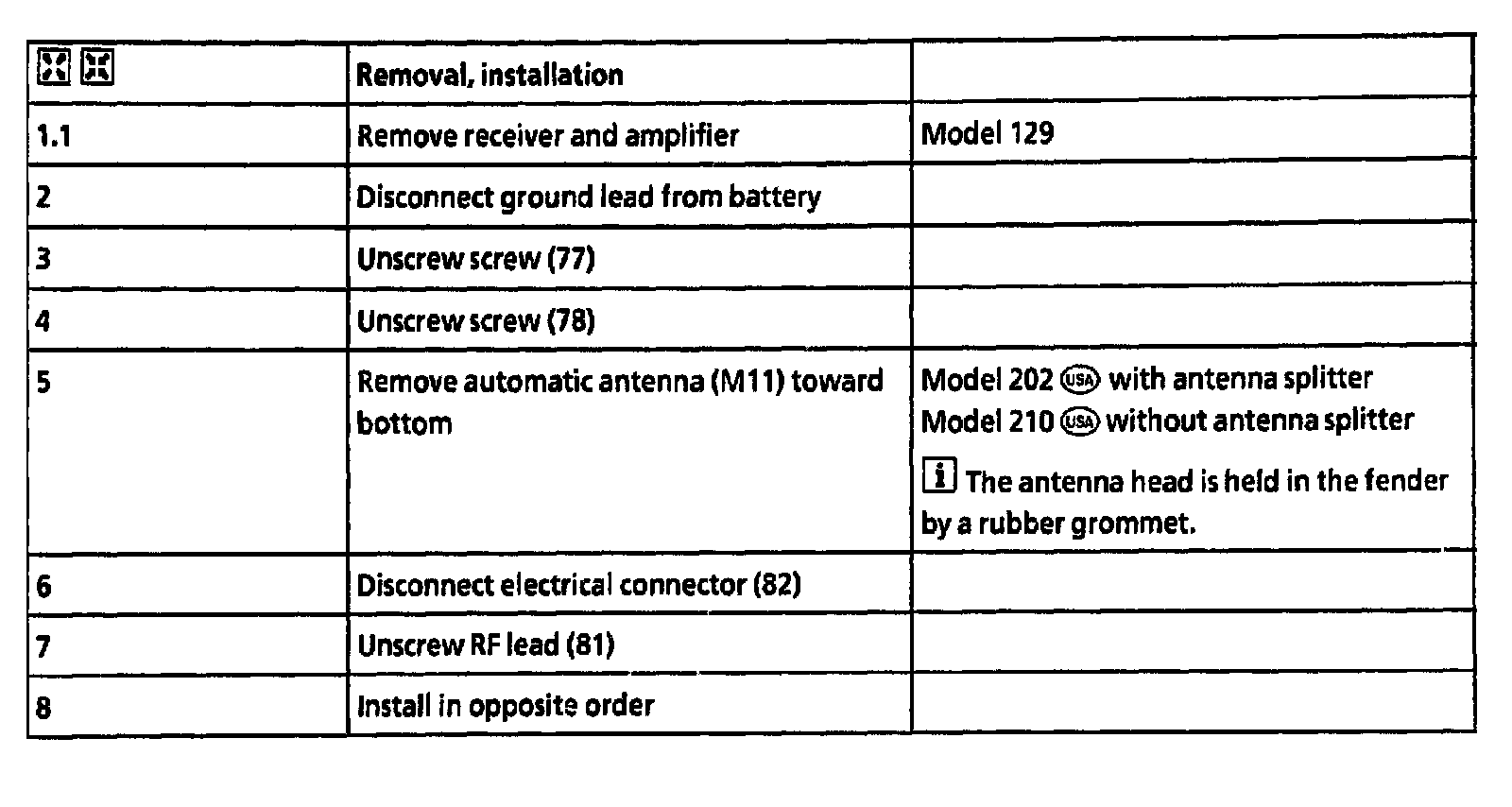

Removal/Installation, 1.1 - 8:
