Home >> Mercedes Benz >> 1999 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Navigation >> Service and Repair >> Antenna For GPS on Vehicles With APS >> GPS Antenna on Rear Shelf

GPS Antenna on Rear Shelf

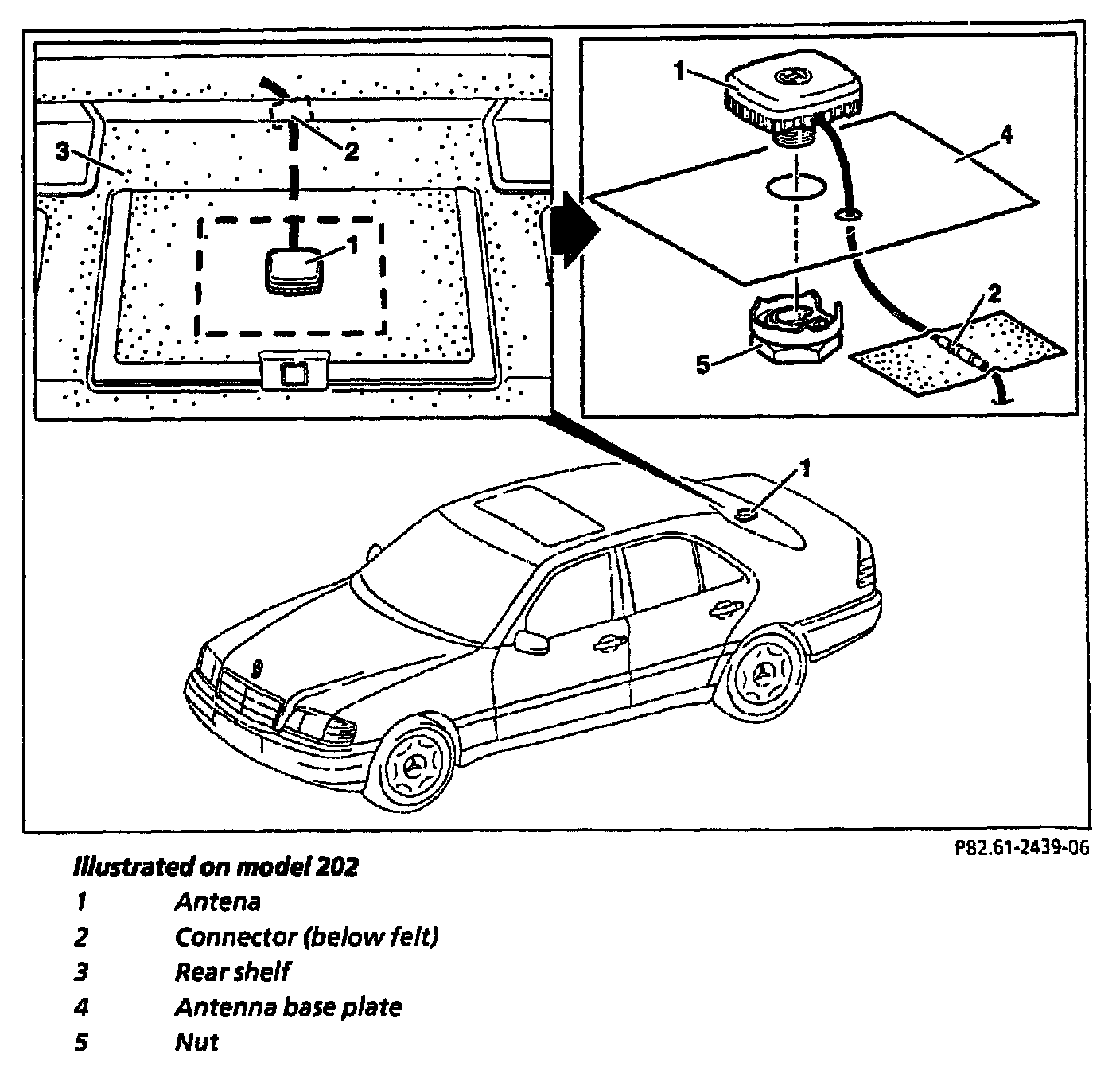

Illustrated On Model 202:

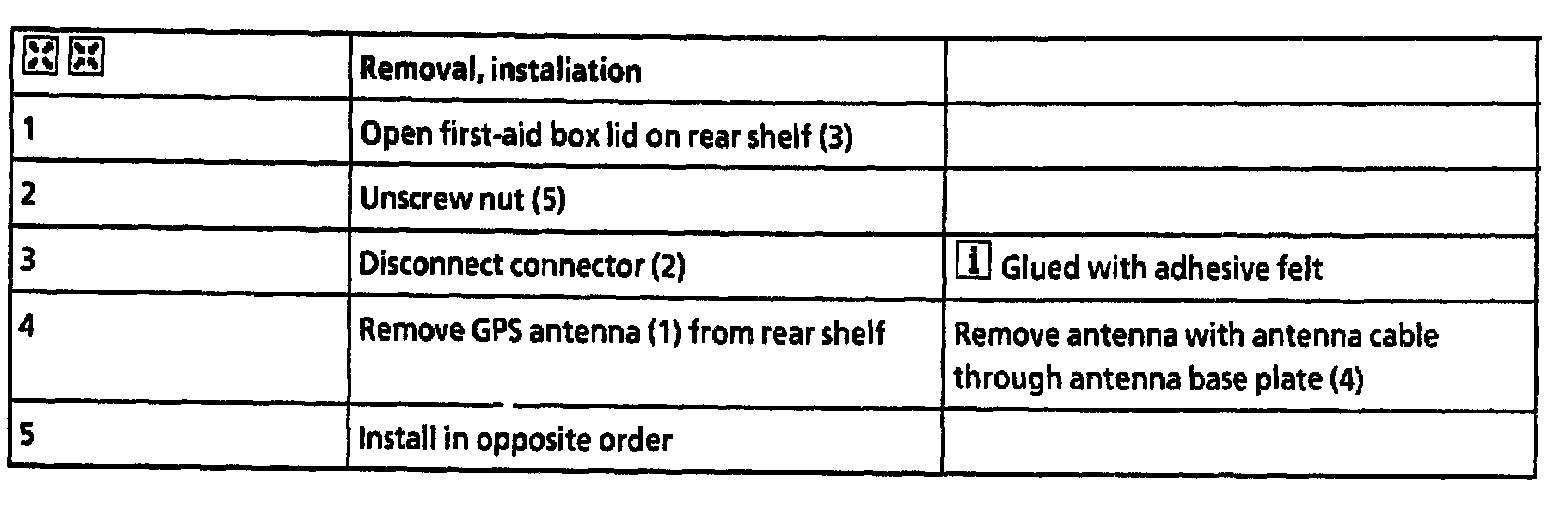

Removal/Installation, Steps 1 - 5:
