Home
>>
Mercedes Benz
>>
1999
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antenna
>>
Antenna, Navigation
>>
Service and Repair
>>
Antenna For GPS on Vehicles With APS
>>
Combined CTEL/GPS Roof Antenna
Combined CTEL/GPS Roof Antenna

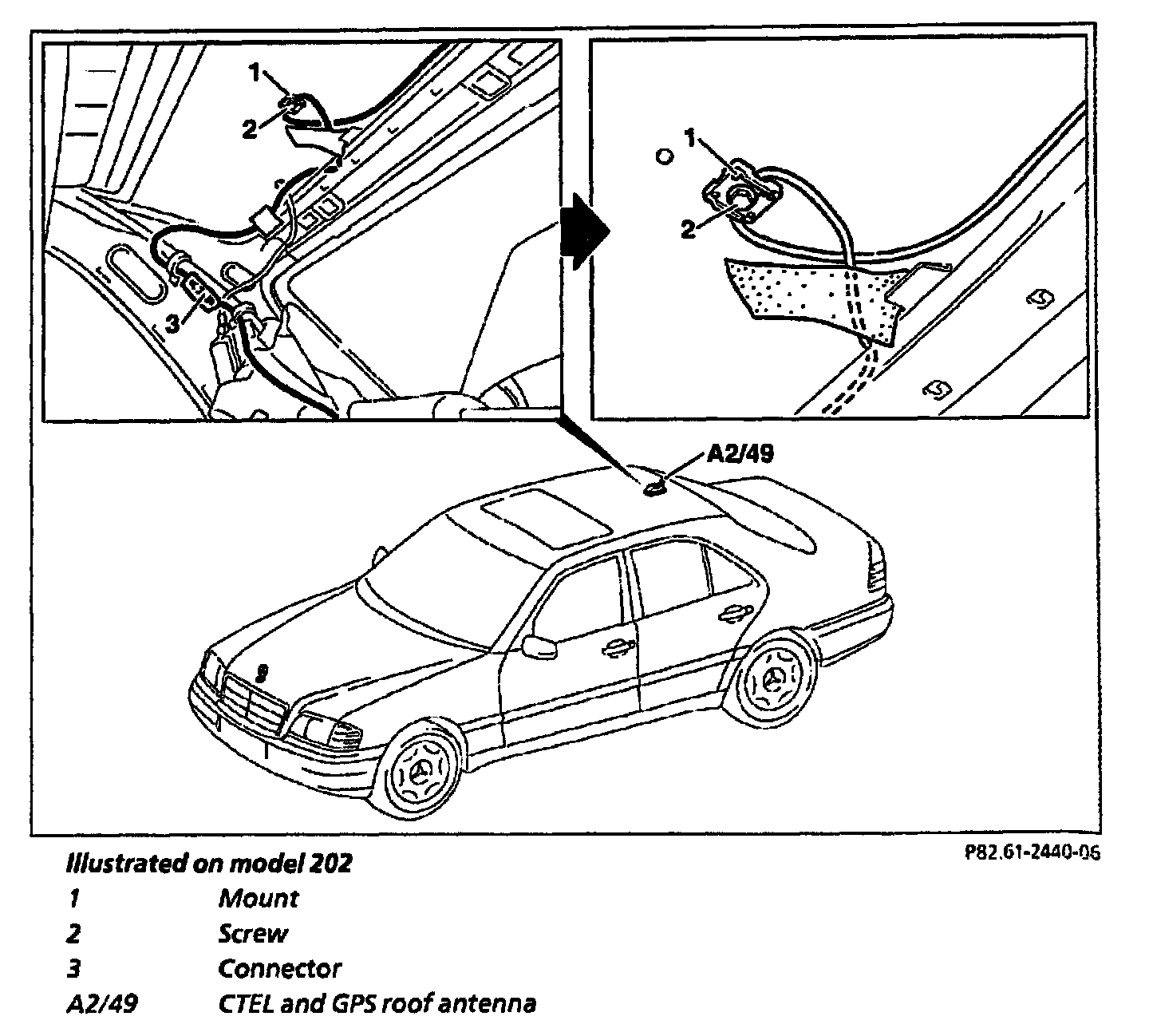

Illustrated On Model 202:
NOTE:
Removal also valid for GPS antenna (A2/23)

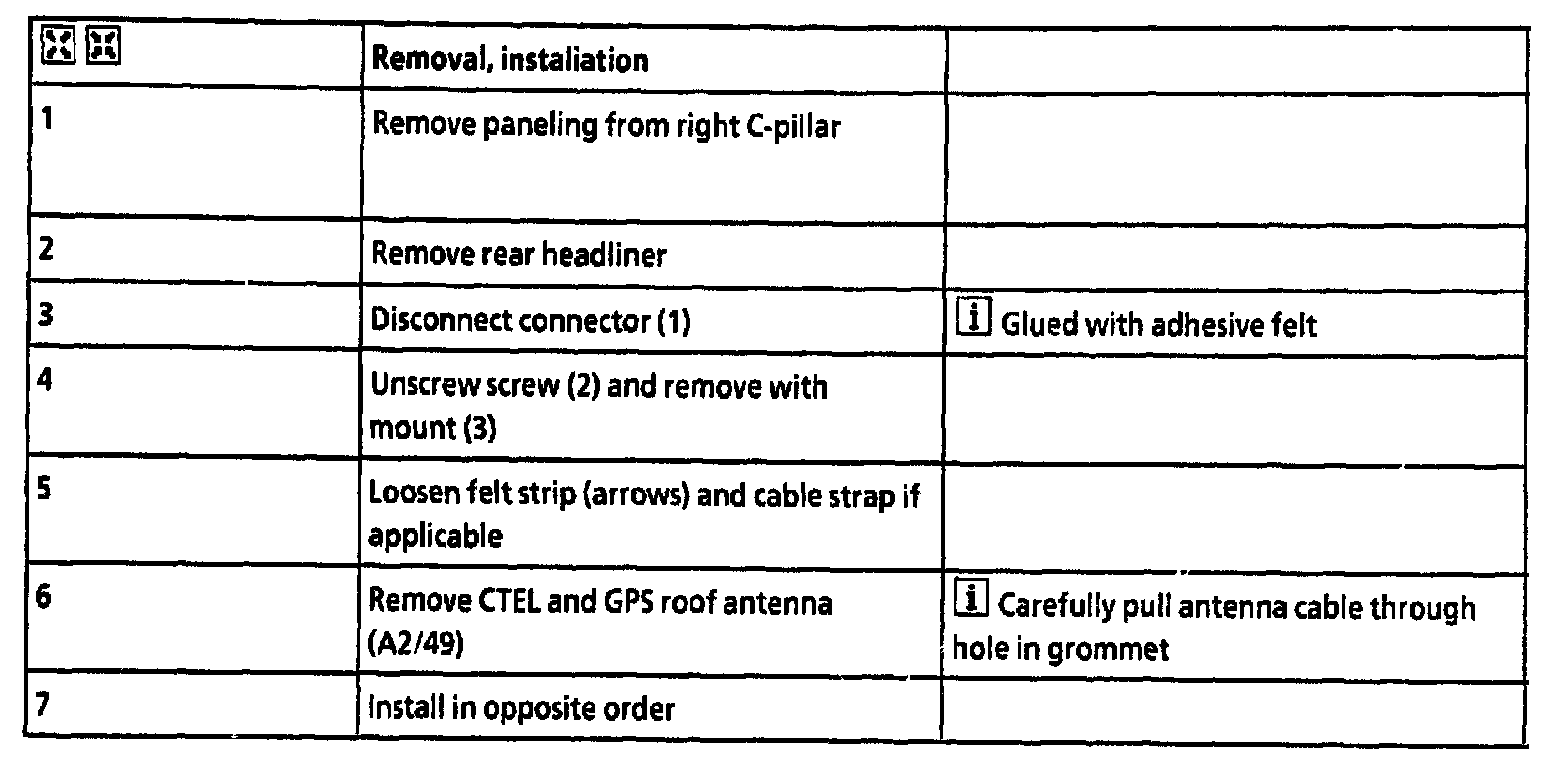

Removal/Installation, Steps 1 - 7:
