Survey of Multiple-Disc Components

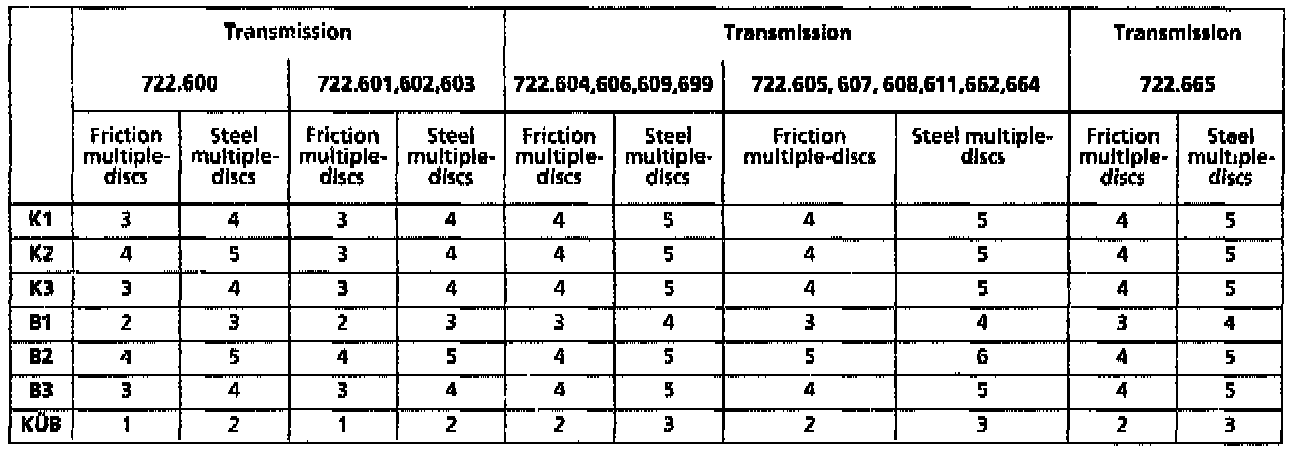

Transmission Application Tables (Part 1 Of 2):

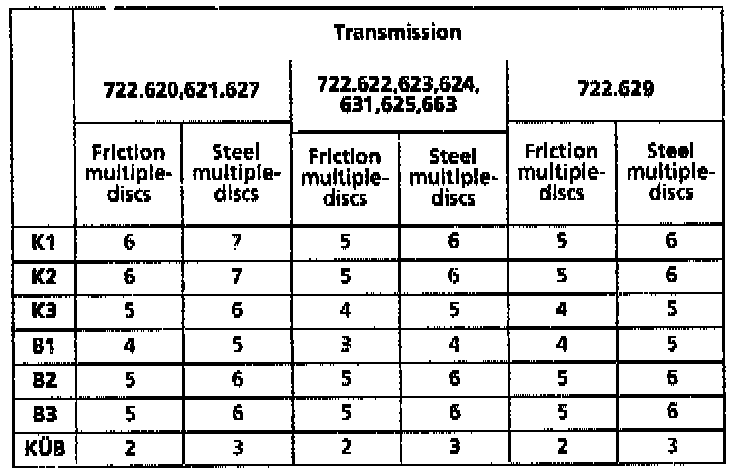

Transmission Application Tables (Part 2 Of 2):

TRANSMISSION APPLICATION BY MODEL
The 722.6xx transmission can be configured in many ways to fit the requirements of various vehicle and engines

Refer tables above to locate the internal configuration for the vehicle

Vehicle: E320TD
Transmission Model: 722.608
